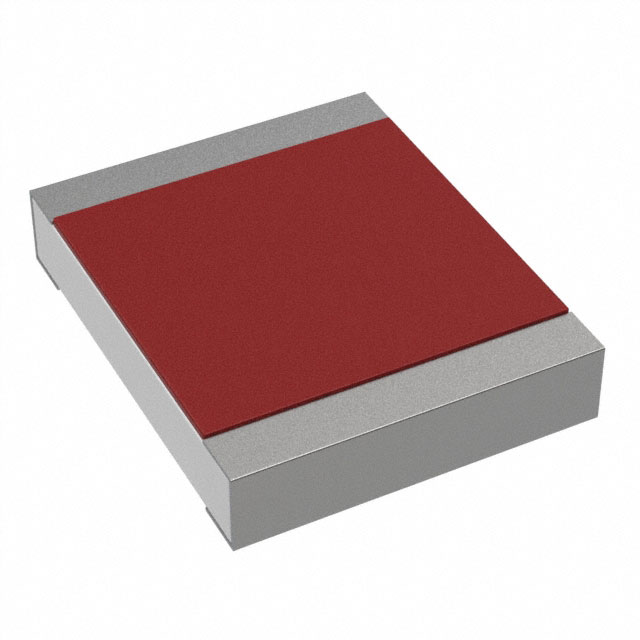

SG73W2H Series

Manufacturer: KOA Speer Electronics, Inc.

Catalog

RES 470 OHM 10% 3/4W 2010

Part	Resistance	Temperature Coefficient	Composition	Supplier Device Package	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Number of Terminations [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features	Tolerance	Power (Watts)	Power (Watts)	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Temperature Coefficient
KOA Speer Electronics, Inc. SG73W2HTTE471K	470 Ohms	200 ppm/°C	Thick Film	2010	2010 (5025 Metric)	155 C	-55 C	2	5 mm	0.098 in	0.197 in	2.5 mm	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	10 %	3/4W	0.75 W	AEC-Q200	0.7 mm	0.028 "
KOA Speer Electronics, Inc. SG73W2HTTE473M	47000 Ohms	200 ppm/°C	Thick Film	2010	2010 (5025 Metric)	155 C	-55 C	2	5 mm	0.098 in	0.197 in	2.5 mm	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	20 %	3/4W	0.75 W	AEC-Q200	0.7 mm	0.028 "
KOA Speer Electronics, Inc. SG73W2HTTE474M	470 kOhms	200 ppm/°C	Thick Film	2010	2010 (5025 Metric)	155 C	-55 C	2	5 mm	0.098 in	0.197 in	2.5 mm	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	20 %	3/4W	0.75 W	AEC-Q200	0.7 mm	0.028 "
KOA Speer Electronics, Inc. SG73W2HTTE221K	220 Ohms	200 ppm/°C	Thick Film	2010	2010 (5025 Metric)	155 C	-55 C	2	5 mm	0.098 in	0.197 in	2.5 mm	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	10 %	3/4W	0.75 W	AEC-Q200	0.7 mm	0.028 "
KOA Speer Electronics, Inc. SG73W2HTTE274M	270 kOhms	200 ppm/°C	Thick Film	2010	2010 (5025 Metric)	155 C	-55 C	2	5 mm	0.098 in	0.197 in	2.5 mm	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	20 %	3/4W	0.75 W	AEC-Q200	0.7 mm	0.028 "
KOA Speer Electronics, Inc. SG73W2HTTE222M	2200 Ohms	200 ppm/°C	Thick Film	2010	2010 (5025 Metric)	155 C	-55 C	2	5 mm	0.098 in	0.197 in	2.5 mm	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	20 %	3/4W	0.75 W	AEC-Q200	0.7 mm	0.028 "
KOA Speer Electronics, Inc. SG73W2HTTE820K	82 Ohms	200 ppm/°C	Thick Film	2010	2010 (5025 Metric)	155 C	-55 C	2	5 mm	0.098 in	0.197 in	2.5 mm	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	10 %	3/4W	0.75 W	AEC-Q200	0.7 mm	0.028 "
KOA Speer Electronics, Inc. SG73W2HTTE124K	120 kOhms	200 ppm/°C	Thick Film	2010	2010 (5025 Metric)	155 C	-55 C	2	5 mm	0.098 in	0.197 in	2.5 mm	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	10 %	3/4W	0.75 W	AEC-Q200	0.7 mm	0.028 "
KOA Speer Electronics, Inc. SG73W2HTTE682K	6.8 kOhms	200 ppm/°C	Thick Film	2010	2010 (5025 Metric)	155 C	-55 C	2	5 mm	0.098 in	0.197 in	2.5 mm	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	10 %	3/4W	0.75 W	AEC-Q200	0.7 mm	0.028 "
KOA Speer Electronics, Inc. SG73W2HTTE6R8M	6.8 Ohms		Thick Film	2010	2010 (5025 Metric)	155 C	-55 C	2	5 mm	0.098 in	0.197 in	2.5 mm	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	20 %	3/4W	0.75 W	AEC-Q200	0.7 mm	0.028 "	±400ppm/°C
