Pva0 Series Series

Keylock Switches Short Stroke Key Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Keylock Switches Short Stroke Key Switch

Part	Actuator Marking	Current Rating (Amps)	Electrical Life	Type	Circuit	Termination Style	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage Rating - DC	Switch Function	Color - Actuator/Cap
Littelfuse/Commercial Vehicle Products PVA2EEH21.7NV2	No Marking
Littelfuse/Commercial Vehicle Products PVA10AH43.5N V2	No Marking	100 mA	100000 Cycles	Keyswitch	DPST-NO	PC Pin	Plunger Square	85 °C	-40 °C	Through Hole	32 V	Off-Mom
Littelfuse/Commercial Vehicle Products PVA1EEH4SNA3.5N V2	No Marking	100 mA	100000 Cycles	Keyswitch	DPST	PC Pin	Plunger Square	85 °C	-40 °C	Through Hole	32 V	Off-On
Littelfuse/Commercial Vehicle Products PVA1EEH11.2N V2	No Marking	100 mA	100000 Cycles	Keyswitch	DPST	PC Pin	Plunger for Cap	85 °C	-40 °C	Through Hole	32 V	Off-On	White
Littelfuse/Commercial Vehicle Products PVA1 OA H3 1.2N V2	No Marking	100 mA	100000 Cycles	Keyswitch	DPST-NO	PC Pin	Plunger for Cap	85 °C	-40 °C	Through Hole	32 V	Off-Mom	White

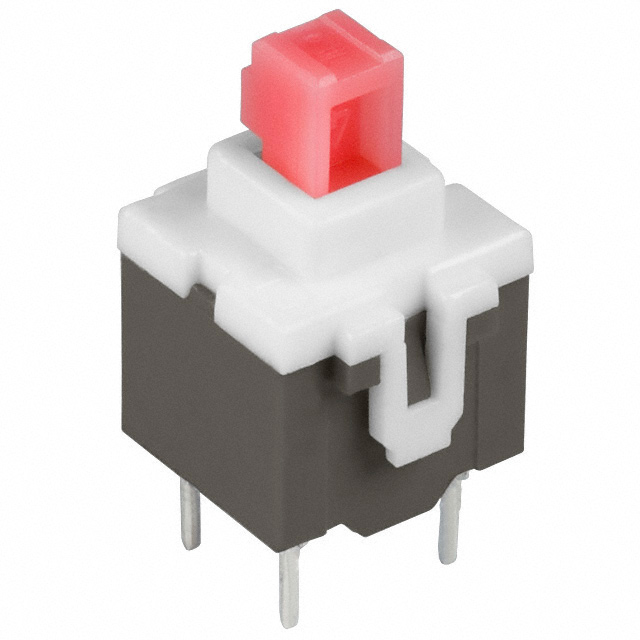

Littelfuse/Commercial Vehicle Products PVA1 EE H4 1.2N V2	No Marking	100 mA	100000 Cycles	Keyswitch	DPST	PC Pin	Plunger Square	85 °C	-40 °C	Through Hole	32 V	Off-On	White

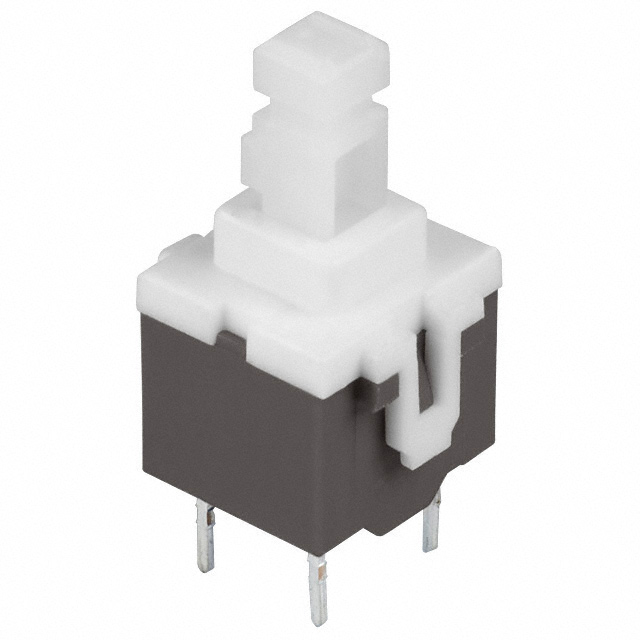

Littelfuse/Commercial Vehicle Products PVA1 OA H1 1.2N V2	No Marking	100 mA	100000 Cycles	Keyswitch	DPST-NO	PC Pin	Plunger for Cap	85 °C	-40 °C	Through Hole	32 V	Off-Mom	White

Catalog

Keylock Switches Short Stroke Key Switch

Key Features

• Compact design

• Short stroke to latch

• Wide variety of actuator heights

Description

C&K’s PVA Short Stroke keyswitches have a compact design, making them the perfect switch for control panels, industrial use and automotive applications such as air conditioning or lighting. Adapted for medium power applications, the PVA is designed with a short stroke to latch and comes in a wide variety of actuator heights to make sure it can fit the specific needs of your product.
