3RT2015 Series

Manufacturer: Siemens

Catalog

Catalog

CONTACTOR S00 7A 48VDC 1NC SCRW

...

Part	Coil Power	Release Time	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Contact Form	Termination Style	Mounting Type	Features	Coil Voltage	Must Operate Voltage	Switching Voltage [Max]
Siemens 3RT20151BW42	4 W	13 ms	100 ms	-25 °C	60 °C	7 A	3PST-NO (3 Form A)	Screw Terminal	Chassis Mount DIN Rail	Auxiliary Contacts	48 VDC	38.4 VDC	690 VAC
Siemens 3RT20151AD02	24.3 VA	13 ms	35 ms	-25 °C	60 °C	7 A	3PST-NO (3 Form A)	Screw Terminal	Chassis Mount DIN Rail	Auxiliary Contacts	42 VAC/DC	35.7 VAC	690 VAC
Siemens 3RT20151MB420KT0	1.6 W	20 ms	120 ms	-25 °C	60 °C	7 A	3PST-NO (3 Form A)	Screw Terminal	Chassis Mount DIN Rail	Auxiliary Contacts	24 VDC	20.4 VDC	690 VAC
Siemens 3RT20151VB41	1.6 W	80 ms	120 ms	-25 °C	60 °C	7 A	3PST-NO (3 Form A)	Screw Terminal	Chassis Mount DIN Rail	Auxiliary Contacts	24 VDC	20.4 VDC	690 VAC

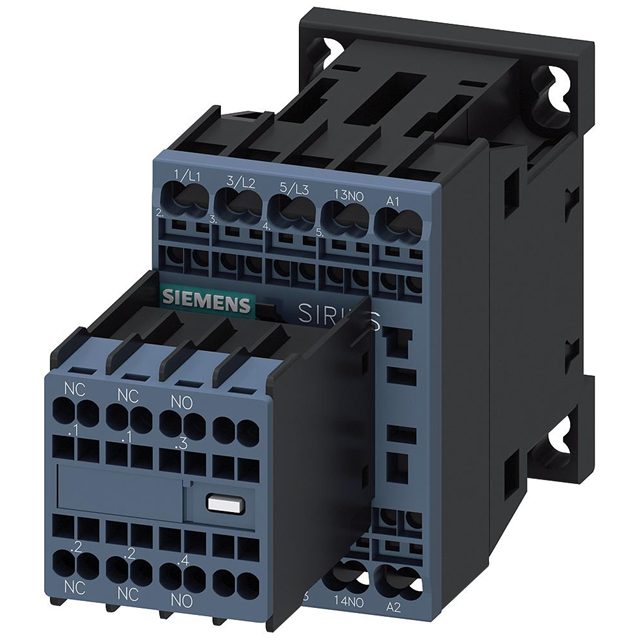

Siemens 3RT20152AF04	24.3 VA	13 ms	35 ms	-25 °C	60 °C	7 A	3PST-NO (3 Form A)	Spring Terminal	Chassis Mount DIN Rail	Auxiliary Contacts	110 VAC/DC	93.5 VAC	690 VAC
Siemens 3RT20152AN22	24.3 VA	13 ms	35 ms	-25 °C	60 °C	7 A	3PST-NO (3 Form A)	Spring Terminal	Chassis Mount DIN Rail	Auxiliary Contacts	220 VAC/DC	187 VAC	690 VAC
Siemens 3RT20151SB41	1.6 W	20 ms	120 ms	-25 °C	60 °C	7 A	3PST-NO (3 Form A)	Screw Terminal	Chassis Mount DIN Rail	Auxiliary Contacts	24 VDC	20.4 VDC	690 VAC
Siemens 3RT20151BW41	4 W	13 ms	100 ms	-25 °C	60 °C	7 A	3PST-NO (3 Form A)	Screw Terminal	Chassis Mount DIN Rail	Auxiliary Contacts	48 VDC	38.4 VDC	690 VAC
Siemens 3RT20151AM22	24.3 VA	13 ms	35 ms	-25 °C	60 °C	7 A	3PST-NO (3 Form A)	Screw Terminal	Chassis Mount DIN Rail	Auxiliary Contacts	208 VAC	176.8 VAC	690 VAC
Siemens 3RT20151AM21	24.3 VA	13 ms	35 ms	-25 °C	60 °C	7 A	3PST-NO (3 Form A)	Screw Terminal	Chassis Mount DIN Rail	Auxiliary Contacts	208 VAC	176.8 VAC	690 VAC
