837-013 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 13POS 0.156
| Part | Material - Insulation | Termination Rows | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Contact Finish | Number of Positions | Flange Feature | Color | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Type | Number of Rows | Number of Positions/Bay/Row | Termination | Read Out | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

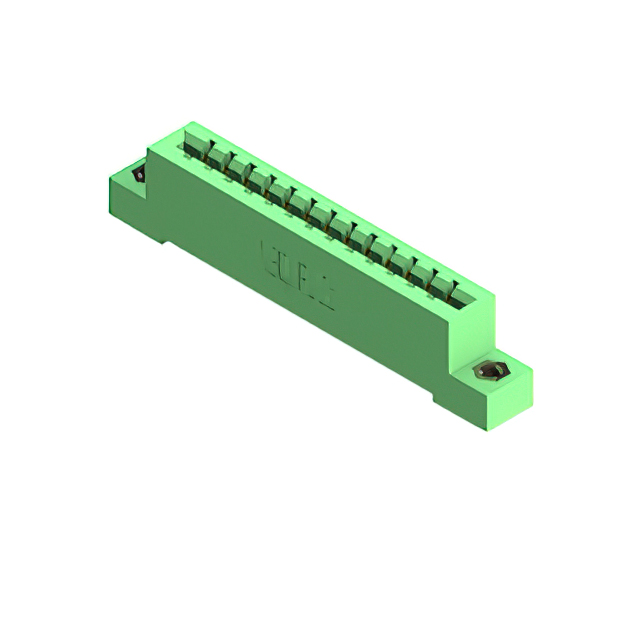

 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | 125 °C | -40 C | Female | Gold | 13 | 4-40 Threaded Insert Top Mount Opening | Green | 0.25 Ám | 10 Áin | Right Angle Through Hole | Cantilever | 1 | 13 | Solder | Single | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | ||

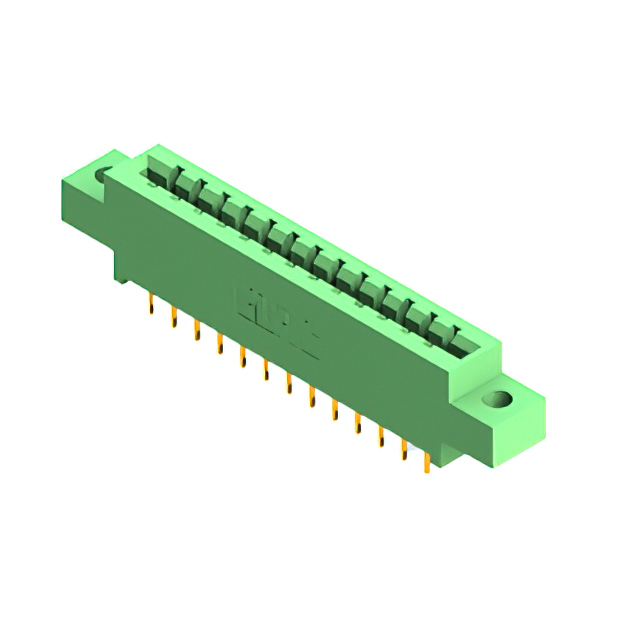

 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | 125 °C | -40 C | Female | Gold | 13 | Floating Bobbin Top Mount Opening | Green | 0.25 Ám | 10 Áin | Through Hole | Cantilever | 1 | 13 | Solder | Single | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 0.116 " | 2.95 mm |

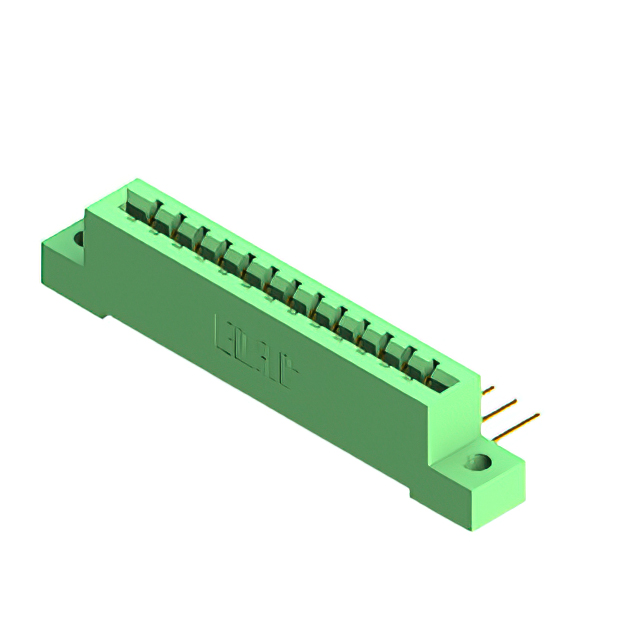

 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | 125 °C | -40 C | Female | Gold | 13 | Flush Mount Top Opening Unthreaded | Green | 0.25 Ám | 10 Áin | Through Hole | Cantilever | 1 | 13 | Solder | Single | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 0.128 " | 3.25 mm |

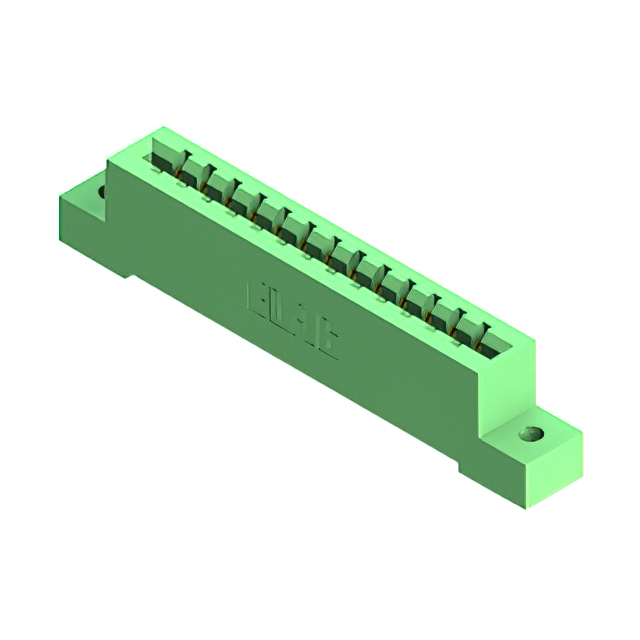

 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | 125 °C | -40 C | Female | Gold | 13 | Green | 0.25 Ám | 10 Áin | Right Angle Through Hole | Cantilever | 1 | 13 | Solder | Single | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 0.156 " | 3.96 mm | |

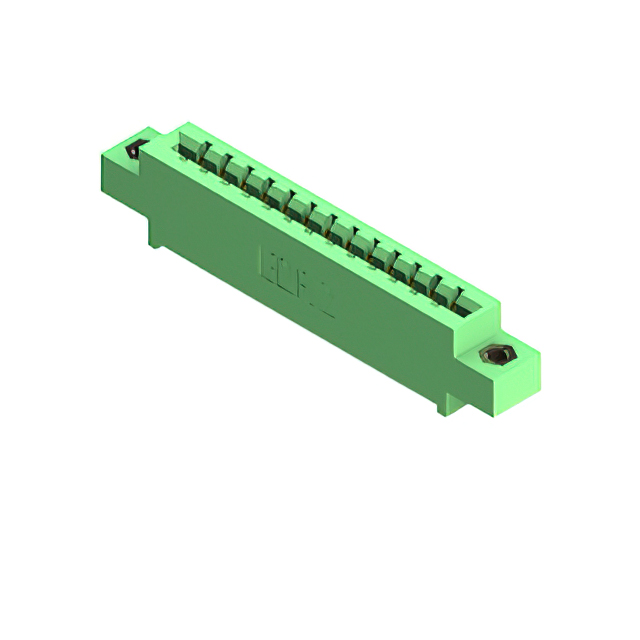

 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | 125 °C | -40 C | Female | Gold | 13 | Flush Mount M3 Threaded Insert Top Opening | Green | 0.25 Ám | 10 Áin | Right Angle Through Hole | Cantilever | 1 | 13 | Solder | Single | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | ||

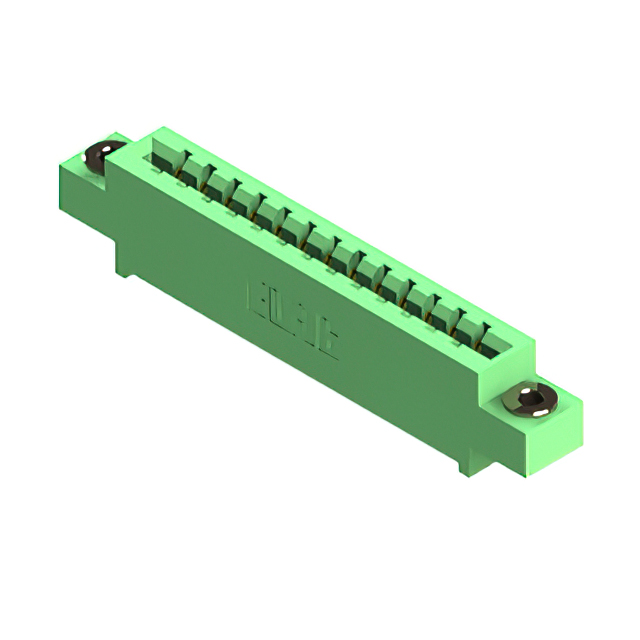

 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | 125 °C | -40 C | Female | Gold | 13 | Flush Mount Top Opening Unthreaded | Green | 0.25 Ám | 10 Áin | Through Hole | Cantilever | 1 | 13 | Solder | Single | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 0.156 " | 3.96 mm |

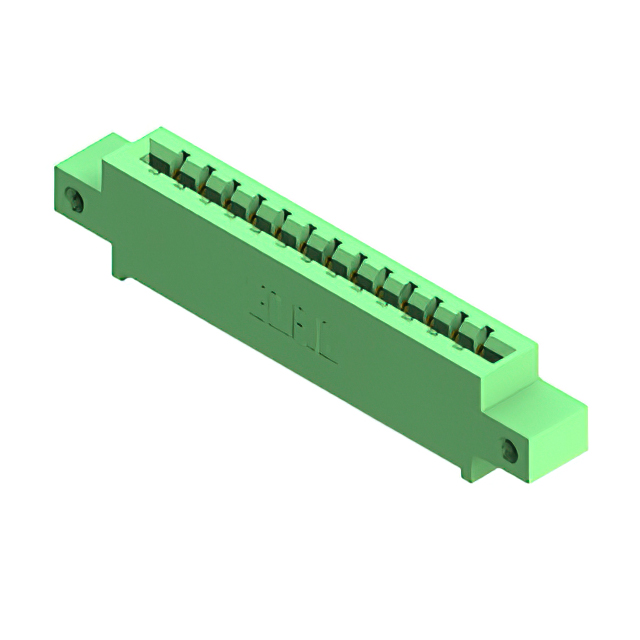

 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | 125 °C | -40 C | Female | Gold | 13 | M3 Threaded Insert Top Mount Opening | Green | 0.25 Ám | 10 Áin | Through Hole | Cantilever | 1 | 13 | Wire Wrap | Single | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | 125 °C | -40 C | Female | Gold | 13 | Side Mount Opening Unthreaded | Green | 0.25 Ám | 10 Áin | Through Hole | Cantilever | 1 | 13 | Solder | Single | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 0.128 " | 3.25 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | 125 °C | -40 C | Female | Gold | 13 | Flush Mount Top Opening Unthreaded | Green | 0.25 Ám | 10 Áin | Right Angle Through Hole | Cantilever | 1 | 13 | Solder | Single | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 0.156 " | 3.96 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | 125 °C | -40 C | Female | Gold | 13 | Flush Mount Top Opening Unthreaded | Green | 0.25 Ám | 10 Áin | Through Hole | Cantilever | 1 | 13 | Wire Wrap | Single | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 0.156 " | 3.96 mm |
