324577 Series

Catalog

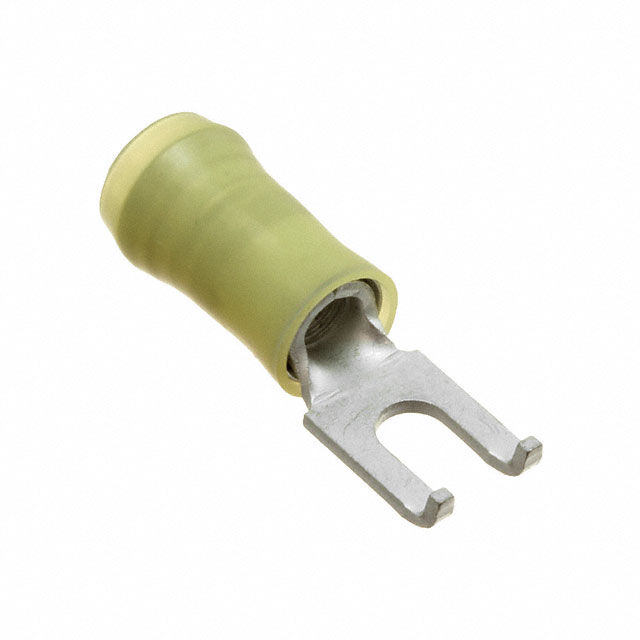

TERMINAL,PIDG SPD FLG 12-10 6

Part	Color	Features	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Overall [x]	Length - Overall [x]	Terminal Type	Termination	Stud/Tab Size	Contact Material	Material - Insulation	Mounting Type	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Insulation	Contact Finish	Length - Termination	Length - Termination
TE Connectivity Raychem Cable Protection 1-324577-0	Yellow	Serrated Termination	12 AWG	10 AWG	0.15 "	3.81 mm	0.23 in	5.84 mm	0.296 in	7.52 mm	0.25 in	6.35 mm	26.82 mm	1.056 in	Flanged	Crimp	6 Stud	Copper	Nylon Polyamide (PA)	Free Hanging (In-Line)	3.68 mm	0.145 in	Insulated	Tin	0.591 in	15.01 mm
