A8A-213 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

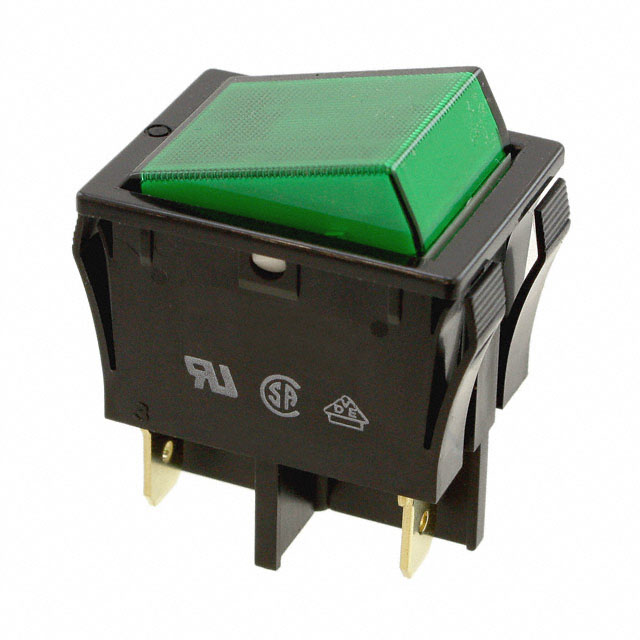

SWITCH ROCKER DPST 16A 125V
| Part | Electrical Life | Mechanical Life | Ingress Protection | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Color - Actuator/Cap | Termination Style | Circuit | Actuator Marking | Illumination Type, Color [custom] | Illumination Type, Color [custom] | Approval Agency | Current Rating (Amps) | Voltage Rating - AC | Illumination Voltage (Nominal) | Switch Function | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 20000 Steps | 40000 Cycles | IP00 | Panel Mount Snap-In | 50 °C | -25 °C | 30 mm | 22 mm | Green | Quick Connect - 0.250" (6.3mm) | DPST | No Marking | Neon | Green | CSA EN UL | 16 A | 125 V | 110 VAC | On-Off | Flat - Illuminated |
Omron Electronics Inc-EMC Div | 20000 Steps | 40000 Cycles | IP00 | Panel Mount Snap-In | 50 °C | -25 °C | 30 mm | 22 mm | Green | Quick Connect - 0.250" (6.3mm) | DPST | No Marking | Neon | Green | CSA EN UL | 16 A | 125 V | 110 VAC | On-Off | Flat - Illuminated |
Omron Electronics Inc-EMC Div | 20000 Steps | 40000 Cycles | IP00 | Panel Mount Snap-In | 50 °C | -25 °C | 30 mm | 22 mm | Green | Quick Connect - 0.250" (6.3mm) | DPST | No Marking | Neon | Green | CSA EN UL | 16 A | 125 V | 110 VAC | On-Off | Flat - Illuminated |
 Omron Electronics Inc-EMC Div | 20000 Steps | 40000 Cycles | IP00 | Panel Mount Snap-In | 50 °C | -25 °C | 30 mm | 22 mm | Green | Quick Connect - 0.250" (6.3mm) | DPST | No Marking | Neon | Green | CSA EN UL | 16 A | 125 V | 110 VAC | On-Off | Flat - Illuminated |
