38H Series

Catalog

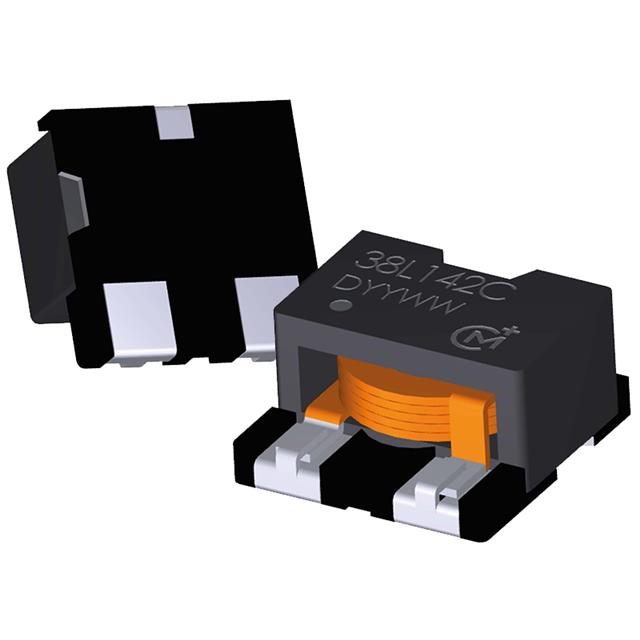

POWER INDUCTOR (SMD), 1.2 ΜH, 9 A, UNSHIELDED, 17 A, 3800 SERIES

Part	Shielding	Tolerance	Current - Saturation (Isat)	Inductance	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Inductance Frequency - Test	Type	DC Resistance (DCR)	DC Resistance (DCR) [Max]
Murata Electronics 38H122C	Unshielded	20 %	17 A	1.2 µH	Surface Mount	130 °C	-40 C	Nonstandard	5.6 mm	0.22 in	9 A	10.4 mm	0.409 in	0.409 in	10.4 mm	100 kHz	Wirewound	6.8 mOhm
Murata Electronics 38H801C	Unshielded	20 %	20 A	800 nH	Surface Mount	130 °C	-40 C	Nonstandard	5.6 mm	0.22 in	10.5 A	10.4 mm	0.409 in	0.409 in	10.4 mm	100 kHz	Wirewound		5 mOhm
Murata Electronics 38H302C	Unshielded	20 %	9.4 A	3 ÁH	Surface Mount	130 °C	-40 C	Nonstandard	5.6 mm	0.22 in	4.9 A	10.4 mm	0.409 in	0.409 in	10.4 mm	100 kHz	Wirewound		19.4 mOhm
Murata Electronics 38H151C	Unshielded	30 %	38 A	150 nH	Surface Mount	130 °C	-40 C	Nonstandard	5.6 mm	0.22 in	18 A	10.4 mm	0.409 in	0.409 in	10.4 mm	100 kHz	Wirewound		1.9 mOhm
Murata Electronics 38H152C	Unshielded	20 %	14 A	1.5 µH	Surface Mount	130 °C	-40 C	Nonstandard	5.6 mm	0.22 in	7.2 A	10.4 mm	0.409 in	0.409 in	10.4 mm	100 kHz	Wirewound		9.5 mOhm
Murata Electronics 38H301C	Unshielded	30 %	32 A	300 nH	Surface Mount	130 °C	-40 C	Nonstandard	5.6 mm	0.22 in	16 A	10.4 mm	0.409 in	0.409 in	10.4 mm	100 kHz	Wirewound		2.2 mOhm
Murata Electronics 38H202C	Unshielded	20 %		2 µH	Surface Mount	130 °C	-40 C	Nonstandard	5.6 mm	0.22 in	6.5 A	10.4 mm	0.409 in	0.409 in	10.4 mm	100 kHz	Wirewound		11.8 mOhm
