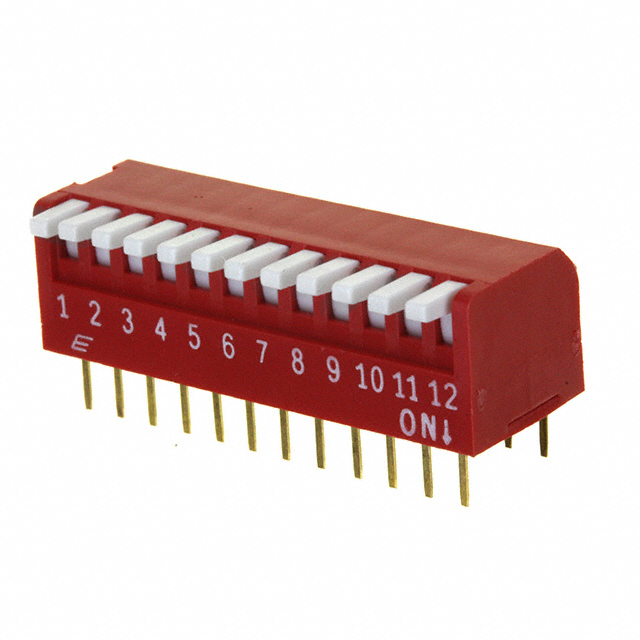

KAP1112 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH PIANO DIP SPST 0.025A 24V
| Part | Electrical Life | Length [x] | Length [x] | Mechanical Life | Body Material | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Height Above Board | Height Above Board | Voltage Rating | Pitch | Pitch | Contact Finish | Washable | Actuator Type | Circuit | Mounting Type | Contact Material | Actuator Level | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 2000 Steps | 1.261 " | 32.03 mm | 2000 Cycles | Polybutylene Terephthalate (PBT) Glass Filled | PC Pin | 85 °C | -40 C | 12 | 10.2 mm | 0.402 in | 24 VDC | 2.54 mm | 0.1 " | Gold | Piano | SPST | Right Angle Through Hole | Phosphor Bronze | Raised | 25 mA |
