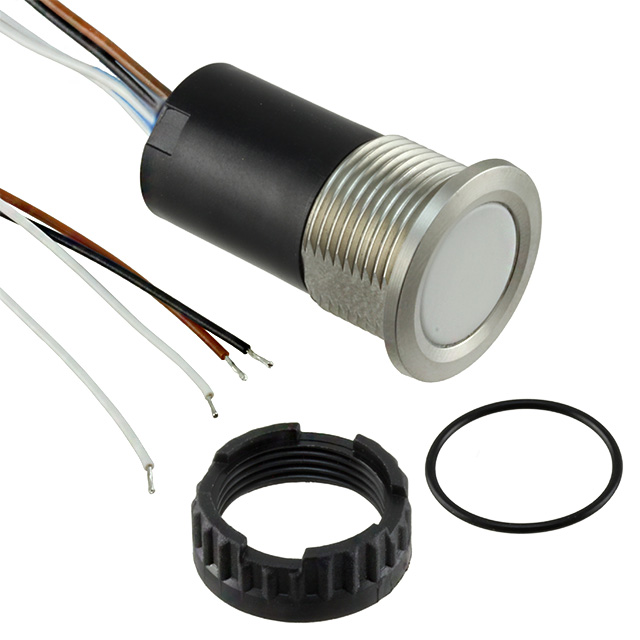

CPS16-NO Series

Catalog

SWITCH PUSH SPST-NO 100MA 42V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Rating - AC	Illumination Type, Color	Termination Style	Circuit	Illumination Voltage (Nominal) [Min]	Illumination Voltage (Nominal) [Max]	Features	Actuator Type	Color - Actuator/Cap	Type	Ingress Protection	Switch Function	Mounting Type	Panel Cutout Dimensions [diameter]	Actuator Marking	Voltage Rating - DC	Actuator Marking
SCHURTER Inc. CPS16-NO00A10-SNCCWTWF-AI0GCVAR-W0000-S	60 °C	-40 C	100 mA	42 V	Cyan/Green LED	Wire Leads	SPST-NO	5 VDC	28 VDC	Ceramic Actuator Finger Guide	Button Flush Round	Clear	Capacitive Illuminated	IP67 - Dust Tight Waterproof	Off-Mom	Panel Mount Front	16.1 mm	No Marking	60 VDC
SCHURTER Inc. CPS16-NO00A10-SNCSNCWF-RI0BYVAR-W0000-S	60 °C	-40 C	100 mA	42 V	Blue/Yellow LED	Wire Leads	SPST-NO	5 VDC	28 VDC	Finger Guide	Button Flush Round	Silver	Capacitive Illuminated	IP67 - Dust Tight Waterproof	Off-Mom	Panel Mount Front	16.1 mm	No Marking	60 VDC
SCHURTER Inc. CPS16-NO00A10-SNCCWTNF-AI0CEVAR-W1073-S	60 °C	-40 C	100 mA	42 V	Cyan/Yellow LED	Wire Leads	SPST-NO	5 VDC	28 VDC	Ceramic Actuator	Button Flush Round	Clear	Capacitive Illuminated	IP67 - Dust Tight Waterproof	Off-Mom	Panel Mount Front	16.1 mm	RESET	60 VDC
SCHURTER Inc. CPS16-NO00A10-SNCSNCWF-RIRGBVAR-W1027-S	60 °C	-40 C	100 mA	42 V	Blue Green LED Red	Wire Leads	SPST-NO	5 VDC	28 VDC	Finger Guide	Button Flush Round	Silver	Capacitive Illuminated	IP67 - Dust Tight Waterproof	Off-Mom	Panel Mount Front	16.1 mm		60 VDC	0
SCHURTER Inc. CPS16-NO00A10-SNCCWTWF-AI0CMVAR-W1016-S	60 °C	-40 C	100 mA	42 V	Cyan/Magenta LED	Wire Leads	SPST-NO	5 VDC	28 VDC	Ceramic Actuator Finger Guide	Button Flush Round	Clear	Capacitive Illuminated	IP67 - Dust Tight Waterproof	Off-Mom	Panel Mount Front	16.1 mm	P	60 VDC
SCHURTER Inc. CPS16-NO00A10-SNCCWTWF-AI0CYVAR-W1016-S	60 °C	-40 C	100 mA	42 V	Cyan LED	Wire Leads	SPST-NO	5 VDC	28 VDC	Ceramic Actuator Finger Guide	Button Flush Round	Clear	Capacitive Illuminated	IP67 - Dust Tight Waterproof	Off-Mom	Panel Mount Front	16.1 mm	P	60 VDC
SCHURTER Inc. CPS16-NO00A10-SNCSNCWF-RI0GCVAR-W0000-S	60 °C	-40 C	100 mA	42 V	Cyan/Green LED	Wire Leads	SPST-NO	5 VDC	28 VDC	Finger Guide	Button Flush Round	Silver	Capacitive Illuminated	IP67 - Dust Tight Waterproof	Off-Mom	Panel Mount Front	16.1 mm	No Marking	60 VDC
SCHURTER Inc. CPS16-NO00A10-SNCCWTNF-AI0RDVAR-W1077-S	60 °C	-40 C	100 mA	42 V	LED Red	Wire Leads	SPST-NO	5 VDC	28 VDC	Ceramic Actuator	Button Flush Round	Clear	Capacitive Illuminated	IP67 - Dust Tight Waterproof	Off-Mom	Panel Mount Front	16.1 mm	Power Symbol	60 VDC
SCHURTER Inc. CPS16-NO00A10-SNCSNCWF-RI0RYVAR-W0000-S	60 °C	-40 C	100 mA	42 V	LED Red Yellow	Wire Leads	SPST-NO	5 VDC	28 VDC	Finger Guide	Button Flush Round	Silver	Capacitive Illuminated	IP67 - Dust Tight Waterproof	Off-Mom	Panel Mount Front	16.1 mm	No Marking	60 VDC
