T 3437 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K
CONN RCPT FMALE 7P SOLDER CUP
| Part | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert | Current Rating (Amps) | Contact Finish - Mating | Number of Positions | Shell Material | Fastening Type | Ingress Protection | Primary Material | Mounting Type | Orientation | Voltage Rating | Contact Shape | Material Flammability Rating | Shielding | Mounting Feature | Note | Type | Contact Type | Housing Color | Contact Size | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Tuchel Industrial | Receptacle Female Sockets | -40 C | 100 °C | M16-7 | 7 A | Silver | 7 | Plastic | Bayonet Lock | IP40 | Plastic | Panel Mount Snap-In | Keyed | 250 V | ||||||||||

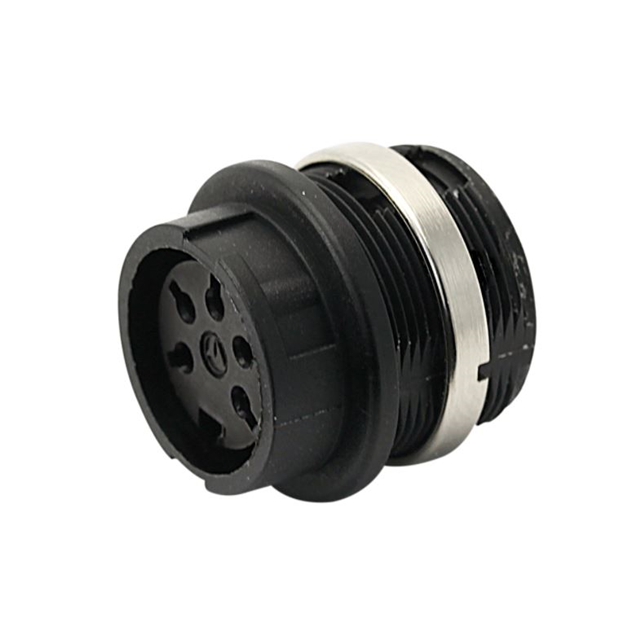

 Amphenol Tuchel Industrial | Receptacle Housing | -40 C | 100 °C | M16-7 | 7 | Plastic | Bayonet Lock | IP40 | Panel Mount | Keyed | Circular | UL94 V-0 | Unshielded | Bulkhead - Rear Side Nut | Contacts Not Included | For Female Sockets | Crimp | Black | 1.5 mm | Thermoplastic | ||||

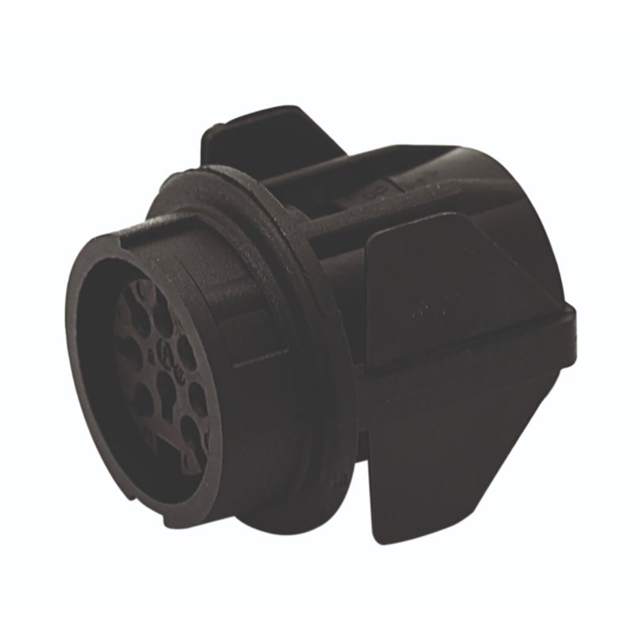

 Amphenol Tuchel Industrial | Receptacle Housing | -40 C | 100 °C | M16-7 | 7 | Plastic | Bayonet Lock | IP40 | Panel Mount Snap-In | Keyed | Circular | UL94 V-0 | Unshielded | Contacts Not Included | For Female Sockets | Crimp | Black | 1.5 mm | Thermoplastic |
