16-001 Series
Manufacturer: Tensility International Corp
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
AC/DC WALL MOUNT ADAPTER 12V 24W
| Part | Voltage - Output | Polarization | Current - Output (Max) | Approval Agency | Operating Temperature (Min) | Operating Temperature (Max) | Input Connector | No Load Power Consumption (Max) | Applications | Voltage - Input (AC) Maximum | Voltage - Input (AC) Minimum | Size / Dimension Width | Size / Dimension Height | Size / Dimension Length | Form | Cord Length | Region Utilized | Input Type | Efficiency | Power (Watts) | Output Connector O.D. | Output Connector | Output Connector I.D. | Output Connector Length | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

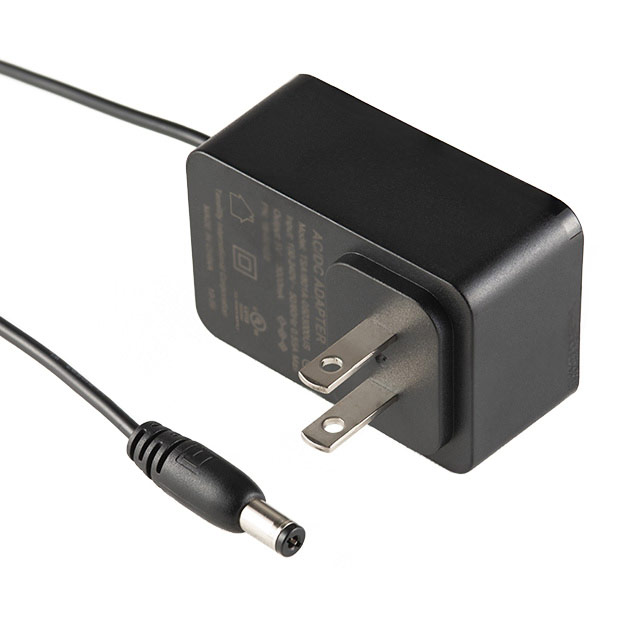

 Tensility International Corp | 12 V | Positive Center | 2 A | cULus FCC | 0 °C | 45 °C | NEMA 1-15P | 100 mW | ITE (Commercial) | 240 VAC | 100 VAC | 1.69 in | 1.28 in | 2.7 in | Wall Mount (Class II) | 59 in | North America | Fixed Blade | Level VI | 24 W | 5.5 mm | Barrel Plug R/A | 2.5 mm | 9.5 mm | 0.245 lb |

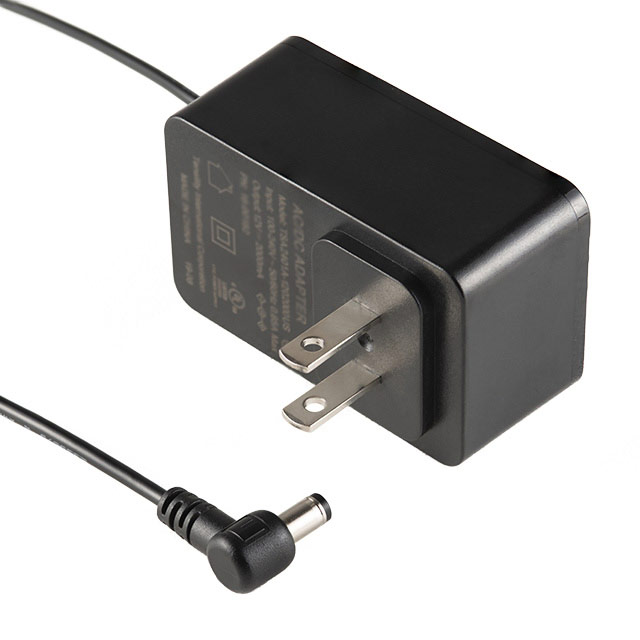

 Tensility International Corp | 12 V | Positive Center | 1.5 A | cULus FCC | 0 °C | 45 °C | NEMA 1-15P | 100 mW | ITE (Commercial) | 240 VAC | 100 VAC | 1.63 in | 1.18 in | 2.5 in | Wall Mount (Class II) | 59 in | North America | Fixed Blade | Level VI | 18 W | 5.5 mm | Barrel Plug | 2.1 mm | 9.5 mm | 0.21 lb |
