GC220A12 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

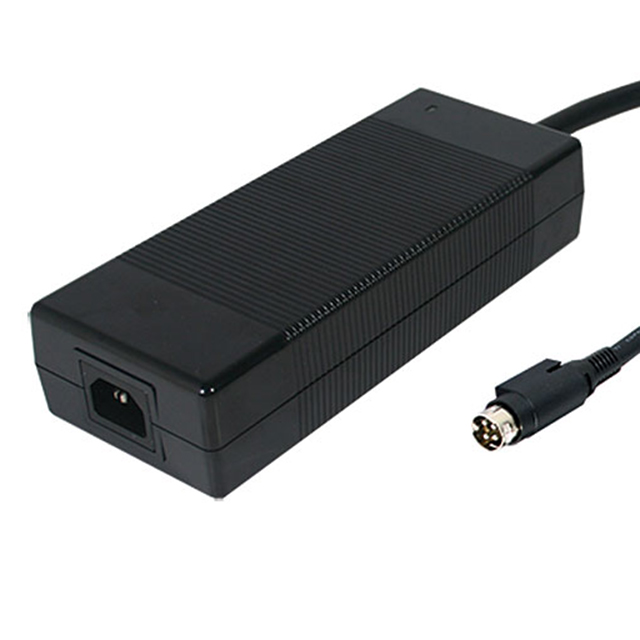

BATT CHARGER DESKTOP 13.6V 13.5A
| Part | Weight | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Nominal | Termination Style | Voltage - Input [Min] | Voltage - Input [Max] | Type | Battery Chemistry [custom] | Charge Current - Max [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Power - Max [Max] | Number of Cells | Battery Cell Size | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 1100 g | CB CE cULus GS UL | -30 ░C | 60 °C | 13.6 V | Rectangular Connector | 90 VAC | 264 VAC | Desktop | Lead Acid Lithium-Ion | 13.5 A | 3.35 in | 1.81 " | 46 mm | 210 mm | 8.27 in | 85 mm | Desktop | 183.6 W | 1 | 12 V | LED Indicator |
MEAN WELL USA Inc. | 1100 g | CB CE cULus GS | -30 ░C | 60 °C | 13.6 V | 4 Pin DIN | 90 VAC | 264 VAC | Desktop | Lead Acid Lithium-Ion | 13.5 A | 3.35 in | 1.81 " | 46 mm | 210 mm | 8.27 in | 85 mm | Desktop | 183.6 W | 1 | 12 V | LED Indicator |
