HDF-V26 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN D-SUB HD PLUG 26POS PNL MNT
| Part | Dielectric Material | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Color | Contact Finish | Features | Shell Material, Finish | Flange Feature | Connector Style | Mounting Type | Contact Type | Number of Positions | Ingress Protection | Current Rating (Amps) | Termination | Connector Type | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Number of Rows [custom] | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

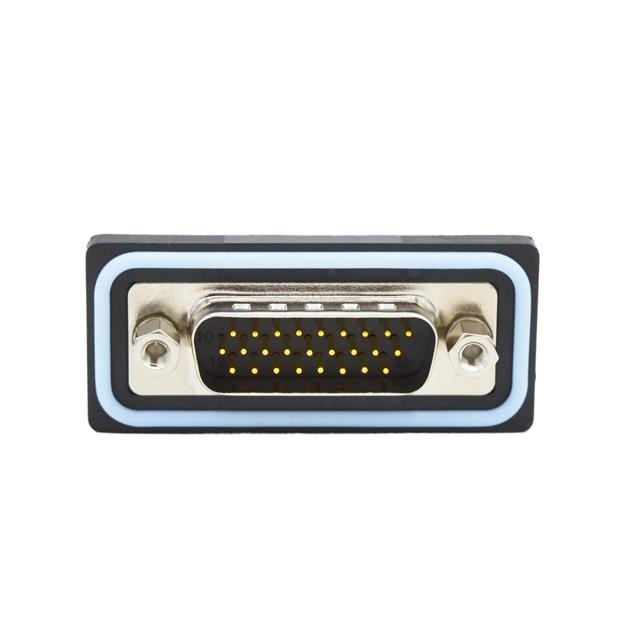

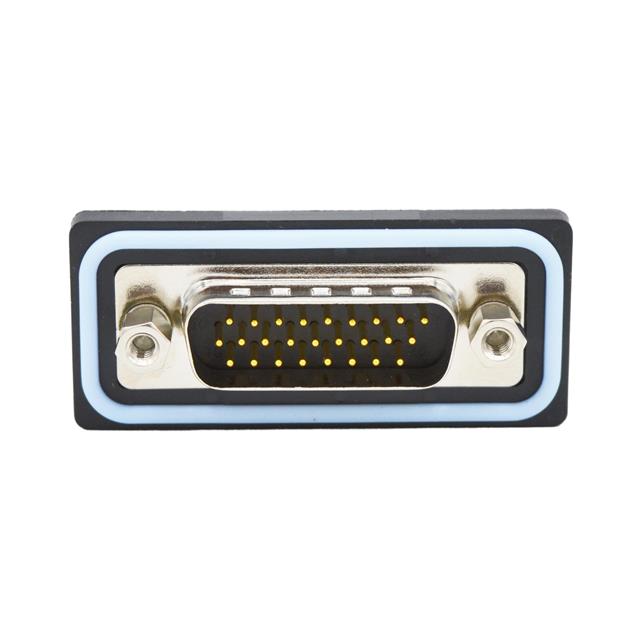

 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | Black | Gold | Grounding Indents | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | D-Sub High Density | Panel Mount Through Hole | Signal | 26 | IP67 - Dust Tight Waterproof | 3 A | Solder | Plug Male Pins | Flash | 2 | DA A | 3 | UL94 V-0 | ||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | Black | Gold | Board Lock Grounding Indents | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | D-Sub High Density | Panel Mount Through Hole | Signal | 26 | IP67 - Dust Tight Waterproof | 3 A | Solder | Plug Male Pins | 2 | DA A | 3 | UL94 V-0 | 30 Áin | 0.76 Ám | |

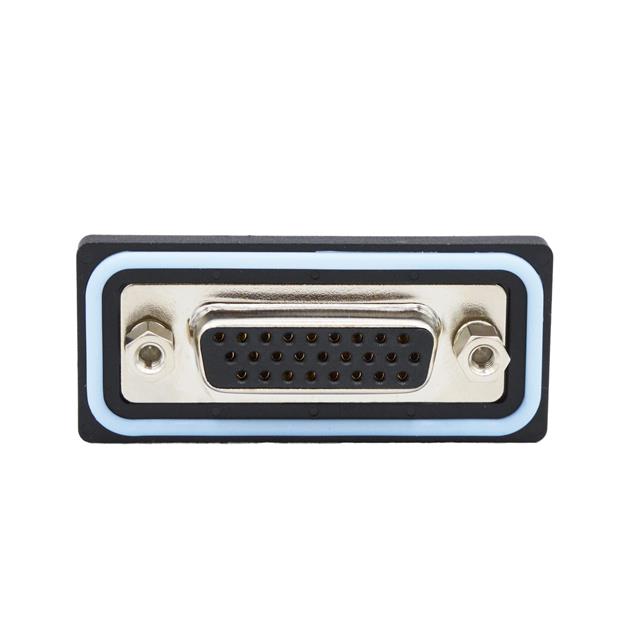

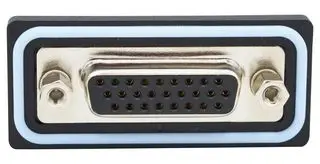

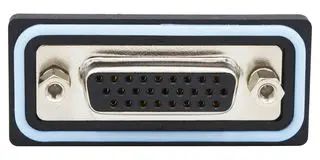

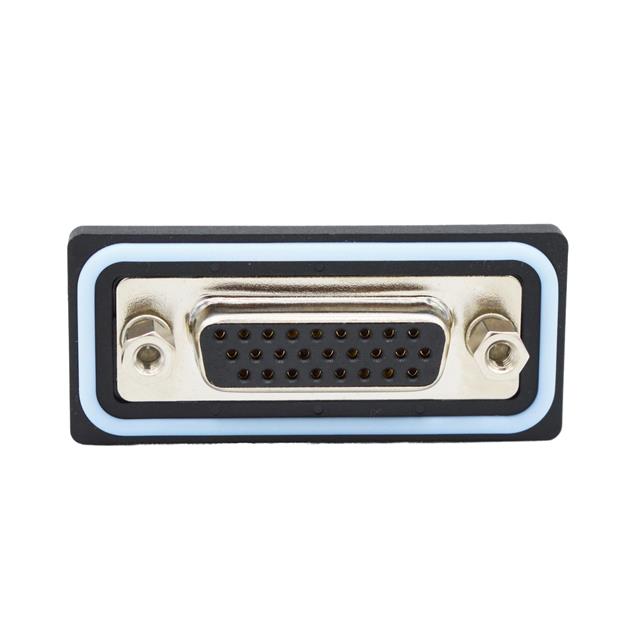

 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | Black | Gold | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | D-Sub High Density | Panel Mount Through Hole | Signal | 26 | IP67 - Dust Tight Waterproof | 3 A | Solder | Receptacle Female Sockets | 2 | DA A | 3 | UL94 V-0 | 30 Áin | 0.76 Ám | ||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | Black | Gold | Board Lock | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | D-Sub High Density | Panel Mount Through Hole | Signal | 26 | IP67 - Dust Tight Waterproof | 3 A | Solder | Receptacle Female Sockets | 2 | DA A | 3 | UL94 V-0 | 30 Áin | 0.76 Ám | |
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | Black | Gold | Grounding Indents | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | D-Sub High Density | Panel Mount Through Hole | Signal | 26 | IP67 - Dust Tight Waterproof | 3 A | Solder | Plug Male Pins | 2 | DA A | 3 | UL94 V-0 | 30 Áin | 0.76 Ám | |
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | Black | Gold | Board Lock | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | D-Sub High Density | Panel Mount Through Hole | Signal | 26 | IP67 - Dust Tight Waterproof | 3 A | Solder | Receptacle Female Sockets | Flash | 2 | DA A | 3 | UL94 V-0 | ||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | 85 °C | -25 °C | Black | Gold | Board Lock Grounding Indents | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | D-Sub High Density | Panel Mount Through Hole | Signal | 26 | IP67 - Dust Tight Waterproof | 3 A | Solder | Plug Male Pins | Flash | 2 | DA A | 3 | UL94 V-0 |
