327043 Series

Catalog

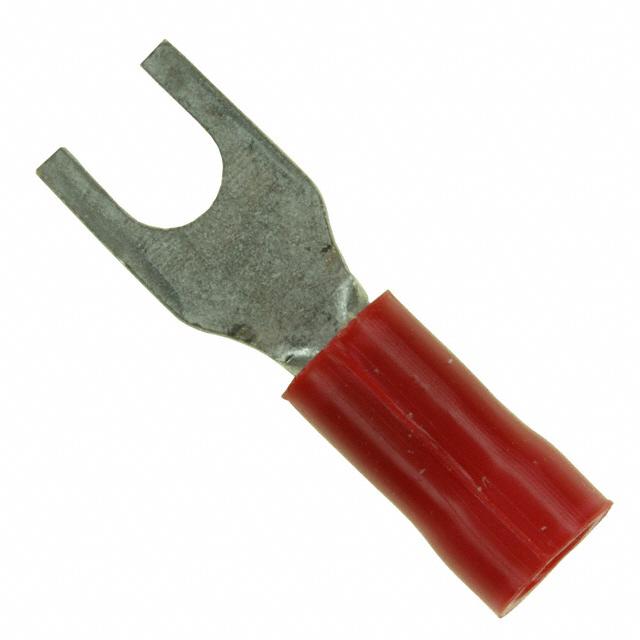

CONN SPADE TERM 16-22AWG #6 RED

Part	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation	Length - Termination	Length - Termination	Color	Features	Length - Overall	Length - Overall	Termination	Terminal Type	Contact Material	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Ring Center to Termination	Length - Ring Center to Termination [x]	Stud/Tab Size	Mounting Type	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Material - Insulation
TE Connectivity Raychem Cable Protection 2-327043-1	22 AWG	16 AWG	Tin	0.14 in	0.105 in	3.56 mm	2.67 mm	Insulated	10.57 mm	0.416 in	Red	Serrated Termination	21.79 mm	0.858 in	Crimp	Standard	Copper	0.25 "	6.35 mm	7.92 mm	0.312 in	6 Stud	Free Hanging (In-Line)	3.68 mm	0.145 in	Poly-Vinyl Chloride (PVC)
