325-042 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 42POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Termination	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Color	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Pitch	Pitch	Contact Finish	Contact Type	Card Thickness	Card Thickness	Mounting Type	Number of Rows [custom]	Number of Positions	Number of Positions/Bay/Row [custom]	Read Out	Card Type	Flange Feature [diameter]	Flange Feature [diameter]	Termination Rows	Number of Positions/Bay/Row	Number of Rows

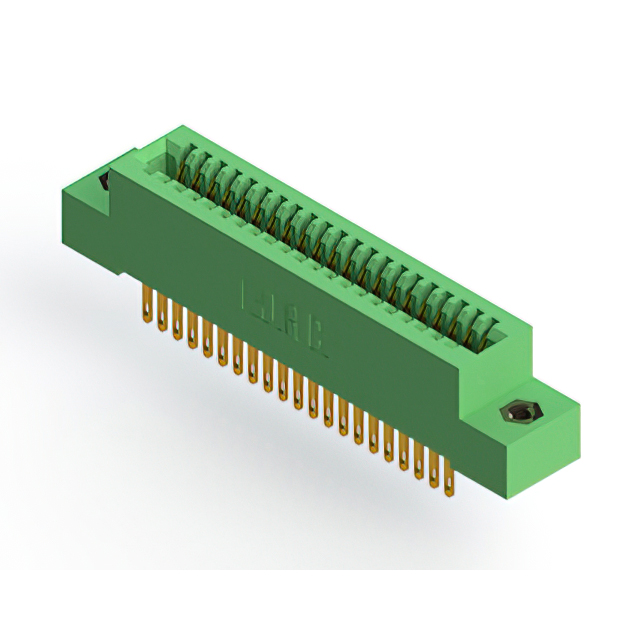

EDAC Inc. 325-042-500-208	Diallyl Phthalate (DAP)	2	Solder Eyelet(s)	Female	-65 ░C	125 °C	Green	4-40 Flush Mount Threaded Insert Top Opening	0.25 Ám	10 Áin	Copper Alloy	0.1 "	2.54 mm	Gold	Cantilever	3.18 mm	0.125 in	Through Hole	2	42	21	Dual	Non Specified - Dual Edge
EDAC Inc. 325-042-500-201	Diallyl Phthalate (DAP)	2	Solder Eyelet(s)	Female	-65 ░C	125 °C	Green		0.25 Ám	10 Áin	Copper Alloy	0.1 "	2.54 mm	Gold	Cantilever	3.18 mm	0.125 in	Through Hole	2	42	21	Dual	Non Specified - Dual Edge

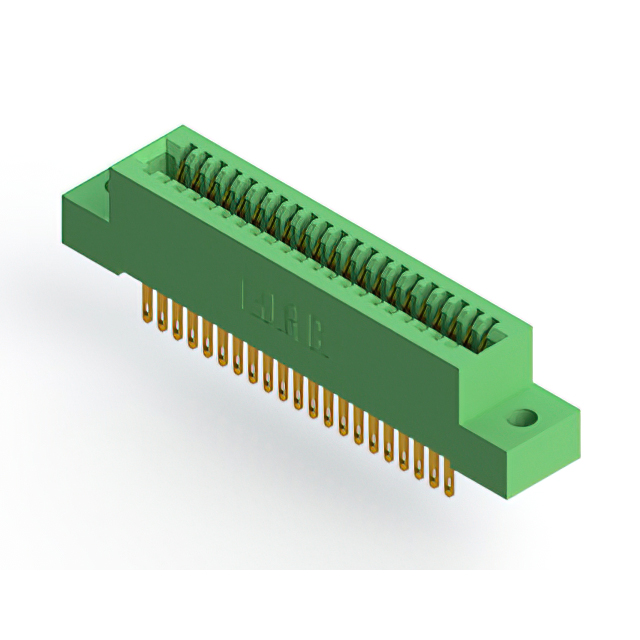

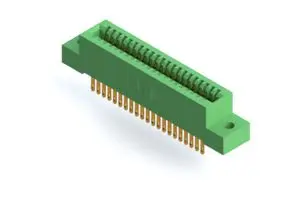

EDAC Inc. 325-042-500-209	Diallyl Phthalate (DAP)	2	Solder Eyelet(s)	Female	-65 ░C	125 °C	Green	Flush Mount Top Opening Unthreaded	0.25 Ám	10 Áin	Copper Alloy	0.1 "	2.54 mm	Gold	Cantilever	3.18 mm	0.125 in	Through Hole	2	42	21	Dual	Non Specified - Dual Edge	0.16 "	4.06 mm
EDAC Inc. 325-042-500-108	Diallyl Phthalate (DAP)		Solder Eyelet(s)	Female	-65 ░C	125 °C	Green	4-40 Flush Mount Threaded Insert Top Opening	0.25 Ám	10 Áin	Copper Alloy	0.1 "	2.54 mm	Gold	Cantilever	3.18 mm	0.125 in	Through Hole		42		Single	Non Specified - Single Edge			1	42	1

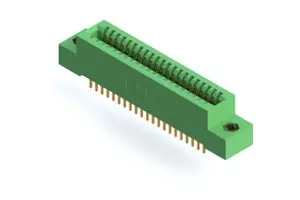

EDAC Inc. 325-042-520-207	Diallyl Phthalate (DAP)	2	Solder	Female	-65 ░C	125 °C	Green	Flush Mount M3 Threaded Insert Top Opening	0.25 Ám	10 Áin	Copper Alloy	0.1 "	2.54 mm	Gold	Cantilever	3.18 mm	0.125 in	Through Hole	2	42	21	Dual	Non Specified - Dual Edge
EDAC Inc. 325-042-540-201	Diallyl Phthalate (DAP)	2	Wire Wrap	Female	-65 ░C	125 °C	Green		0.25 Ám	10 Áin	Copper Alloy	0.1 "	2.54 mm	Gold	Cantilever	3.18 mm	0.125 in	Through Hole	2	42	21	Dual	Non Specified - Dual Edge

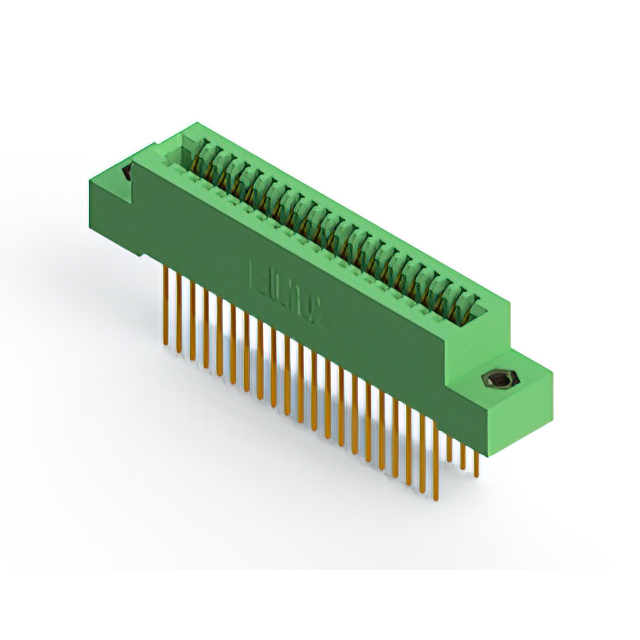

EDAC Inc. 325-042-540-207	Diallyl Phthalate (DAP)	2	Wire Wrap	Female	-65 ░C	125 °C	Green	Flush Mount M3 Threaded Insert Top Opening	0.25 Ám	10 Áin	Copper Alloy	0.1 "	2.54 mm	Gold	Cantilever	3.18 mm	0.125 in	Through Hole	2	42	21	Dual	Non Specified - Dual Edge

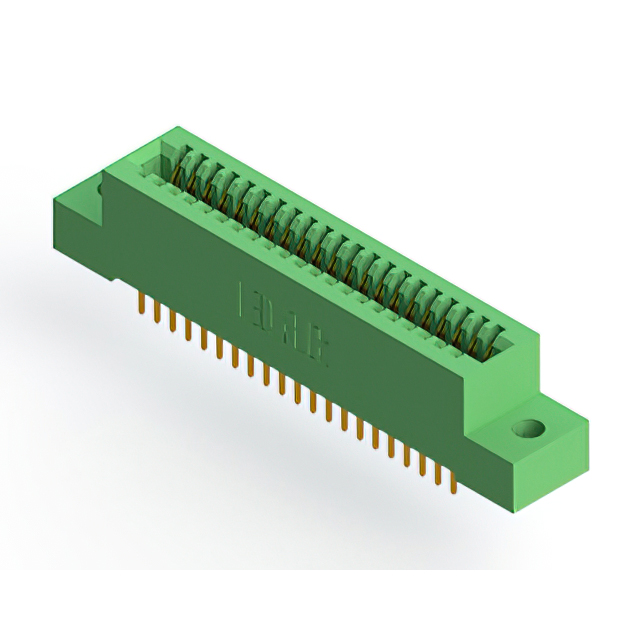

EDAC Inc. 325-042-520-209	Diallyl Phthalate (DAP)	2	Solder	Female	-65 ░C	125 °C	Green	Flush Mount Top Opening Unthreaded	0.25 Ám	10 Áin	Copper Alloy	0.1 "	2.54 mm	Gold	Cantilever	3.18 mm	0.125 in	Through Hole	2	42	21	Dual	Non Specified - Dual Edge	0.16 "	4.06 mm
EDAC Inc. 325-042-520-108	Diallyl Phthalate (DAP)		Solder	Female	-65 ░C	125 °C	Green	4-40 Flush Mount Threaded Insert Top Opening	0.25 Ám	10 Áin	Copper Alloy	0.1 "	2.54 mm	Gold	Cantilever	3.18 mm	0.125 in	Through Hole		42		Single	Non Specified - Single Edge			1	42	1

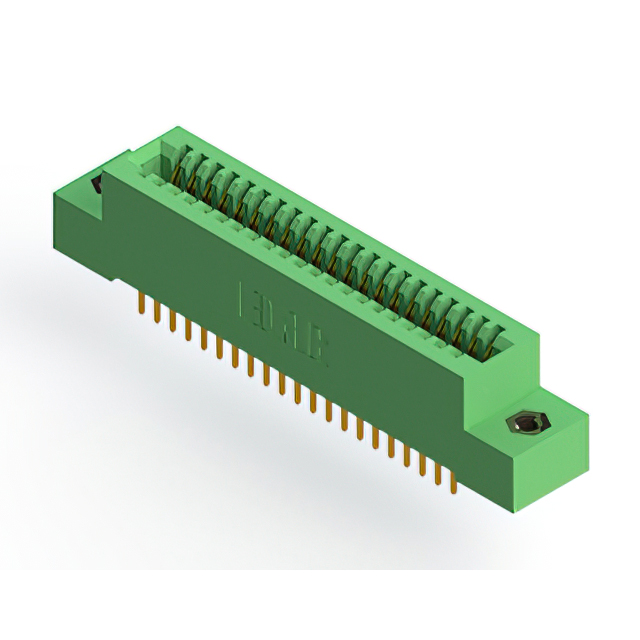

EDAC Inc. 325-042-520-208	Diallyl Phthalate (DAP)	2	Solder	Female	-65 ░C	125 °C	Green	4-40 Flush Mount Threaded Insert Top Opening	0.25 Ám	10 Áin	Copper Alloy	0.1 "	2.54 mm	Gold	Cantilever	3.18 mm	0.125 in	Through Hole	2	42	21	Dual	Non Specified - Dual Edge
