178137 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

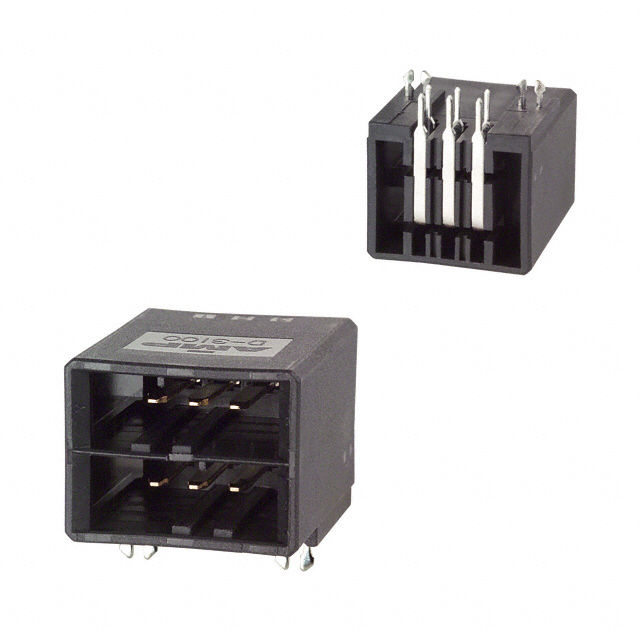

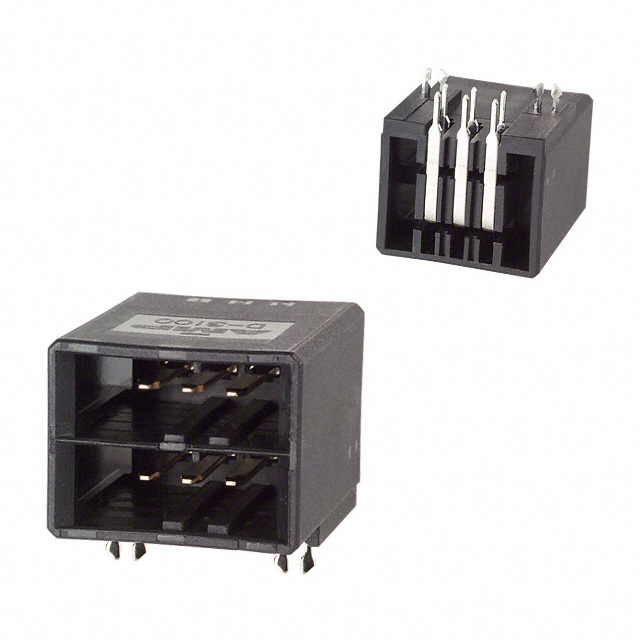

CONN HEADER R/A 6POS 3.81MM
| Part | Number of Positions Loaded | Contact Type | Style | Fastening Type | Insulation Height | Insulation Height | Termination | Number of Positions | Insulation Material | Contact Shape | Applications | Contact Material | Connector Type | Voltage Rating | Contact Finish - Mating | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Number of Rows | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Color | Contact Finish - Post | Material Flammability Rating | Shrouding | Pitch - Mating | Pitch - Mating | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | All | Tab | Board to Board Cable | Detent Lock | 0.668 " | 16.97 mm | Solder | 6 | Glass Filled Polyester Thermoplastic | Rectangular | General Purpose Industrial | Copper Alloy | Header | 250 VDC | Gold PdNi +Gold | 3.33 mm | 0.131 " | 30 Áin | 0.76 Ám | Through Hole Right Angle | 2 | 7.62 mm | 0.3 in | Black | Tin | UL94 V-0 | Shrouded - 4 Wall | 3.81 mm | 0.15 in | 105 ░C | -55 °C |
 TE Connectivity Raychem Cable Protection | All | Tab | Board to Board Cable | Detent Lock | 0.668 " | 16.97 mm | Solder | 6 | Glass Filled Polyester Thermoplastic | Rectangular | General Purpose Industrial | Copper Alloy | Header | 250 VDC | Gold | 3.33 mm | 0.131 " | 15 µin | 0.38 µm | Through Hole Right Angle | 2 | 7.62 mm | 0.3 in | Black | Tin | UL94 V-0 | Shrouded - 4 Wall | 3.81 mm | 0.15 in | 105 ░C | -55 °C |
