KX15-70K Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN PLUG 70POS R/A SMD GOLD
| Part | Height Above Board [z] | Height Above Board [z] | Mounting Type | Features | Number of Rows [custom] | Contact Finish | Pitch | Pitch | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Mated Stacking Heights |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

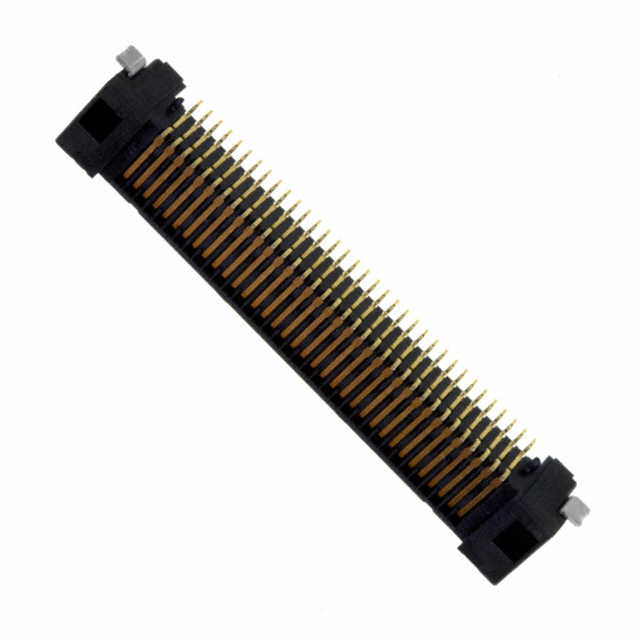

 JAE Electronics | 5.74 mm | 0.226 " | Right Angle Surface Mount | Board Guide Solder Retention | 2 | Gold | 0.8 mm | 0.031 in | 70 | 0.1 Ám | 4 Áin | |

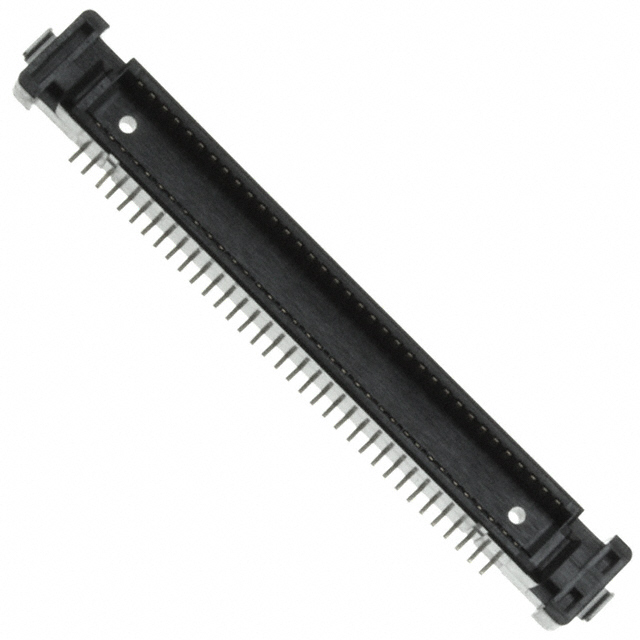

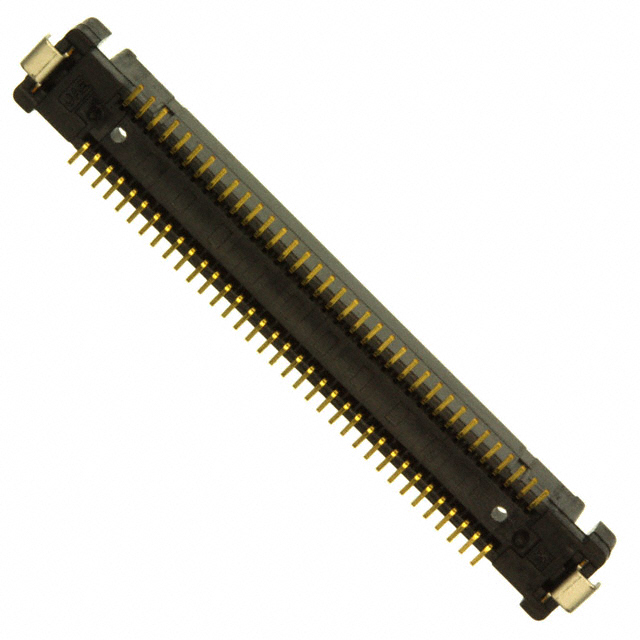

 JAE Electronics | 5.74 mm | 0.226 " | Surface Mount | Board Guide Solder Retention | 2 | Gold | 0.8 mm | 0.031 in | 70 | 0.1 Ám | 4 Áin | 6 mm 9 mm 12 mm 15 mm 18 mm |

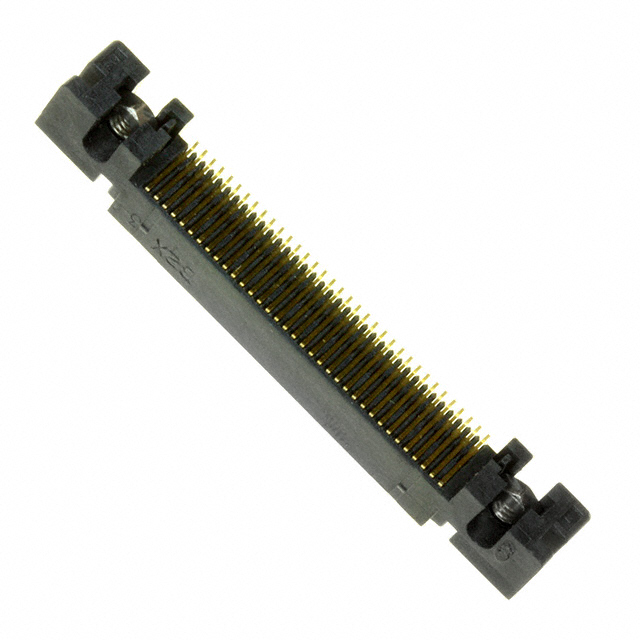

 JAE Electronics | 5.74 mm | 0.226 " | Right Angle Surface Mount | Board Guide | 2 | Gold | 0.8 mm | 0.031 in | 70 | 0.1 Ám | 4 Áin | |
 JAE Electronics | 5.74 mm | 0.226 " | Surface Mount | Board Guide Solder Retention | 2 | Gold | 0.8 mm | 0.031 in | 70 | 0.1 Ám | 4 Áin | 6 mm 9 mm 12 mm 15 mm 18 mm |
 JAE Electronics | 4.75 mm | 0.187 in | Surface Mount | Board Guide Solder Retention | 2 | Gold | 0.8 mm | 0.031 in | 70 | 0.1 Ám | 4 Áin | 5 mm 8 mm 11 mm 14 mm 17 mm |
