RXR035N03 Series
Manufacturer: Rohm Semiconductor
Beta
⌘K

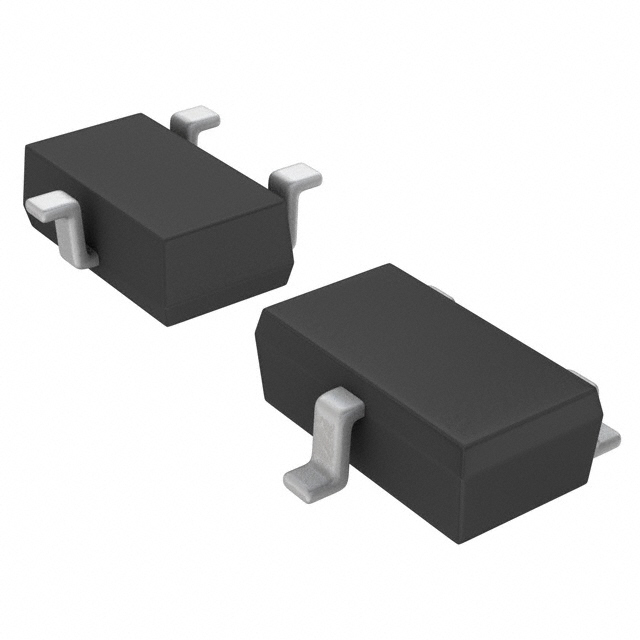

MOSFET N-CH 30V 3.5A TSMT3
| Part | Gate Charge (Qg) (Max) @ Vgs | Current - Continuous Drain (Id) @ 25°C | Operating Temperature | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Mounting Type | Supplier Device Package | Drain to Source Voltage (Vdss) | Vgs (Max) | FET Type | Power Dissipation (Max) | Input Capacitance (Ciss) (Max) @ Vds [Max] | Package / Case | Technology | Drive Voltage (Max Rds On, Min Rds On) [Max] | Drive Voltage (Max Rds On, Min Rds On) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | 3.3 nC | 3.5 A | 150 °C | 50 mOhm | 2.5 V | Surface Mount | TSMT3 | 30 V | 20 V | N-Channel | 1 W | 180 pF | SC-96 | MOSFET (Metal Oxide) | 4 V | 10 V |
