ATS-04G Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

HEATSINK 45X45X10MM R-TAB

...

Part	Attachment Method	Width	Width	Shape	Type	Thermal Resistance @ Forced Air Flow	Material Finish	Package Cooled	Length [x]	Length [x]	Fin Height [custom]	Fin Height [custom]	Material	Fin Height [z]	Fin Height [z]	Width [x]	Width [x]	Length	Length	Width [y]	Width [y]	Fin Height	Fin Height
Advanced Thermal Solutions Inc. ATS-04G-187-C1-R0	Push Pin	1.772 in	45 mm	Fins Square	Top Mount	10.68 °C/W	Blue Anodized	ASIC BGA CPU LGA	1.772 in	45 mm	0.394 "	10 mm	Aluminum
Advanced Thermal Solutions Inc. ATS-04G-51-C2-R0	Push Pin			Fins Square	Top Mount	14.03 °C/W	Blue Anodized	ASIC BGA CPU LGA					Aluminum	20 mm	0.79 in	30 mm	1.181 in	0.03 m	1.181 in
Advanced Thermal Solutions Inc. ATS-04G-89-C3-R0	Push Pin			Fins Square	Top Mount	8.08 °C/W	Blue Anodized	ASIC BGA CPU LGA	1.378 "				Aluminum	30 mm	1.181 in			35 mm		1.378 "	35 mm
Advanced Thermal Solutions Inc. ATS-04G-87-C3-R0	Push Pin			Fins Square	Top Mount	13.3 °C/W	Blue Anodized	ASIC BGA CPU LGA	1.378 "				Aluminum	20 mm	0.79 in			35 mm		1.378 "	35 mm

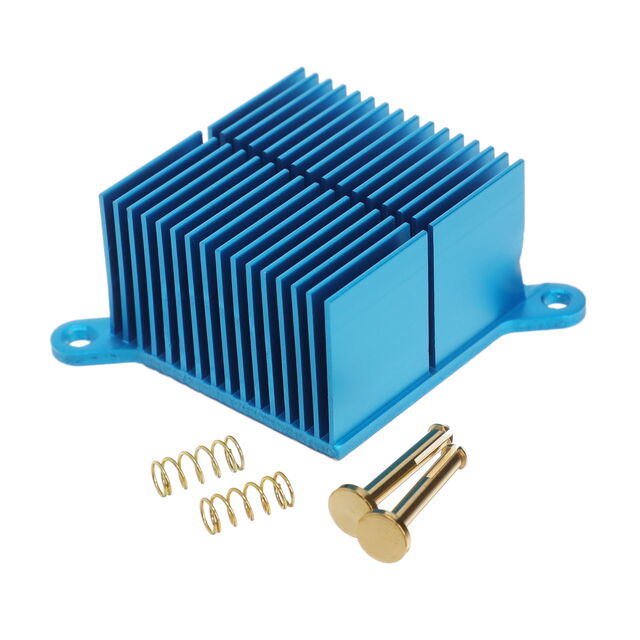

Advanced Thermal Solutions Inc. ATS-04G-94-C2-R0	Push Pin			Fins Square	Top Mount	9.39 °C/W	Blue Anodized	ASIC BGA CPU LGA					Aluminum							1.575 in	40 mm	25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-04G-21-C2-R0	Push Pin			Fins Square	Top Mount	16.28 °C/W	Blue Anodized	ASIC BGA CPU LGA	2.362 in	60 mm	0.394 "	10 mm	Aluminum							2.362 in	60 mm
Advanced Thermal Solutions Inc. ATS-04G-119-C1-R0	Push Pin	1.772 in	45 mm	Fins Square	Top Mount	4.65 °C/W	Blue Anodized	ASIC BGA CPU LGA	1.772 in	45 mm			Aluminum	20 mm	0.79 in
Advanced Thermal Solutions Inc. ATS-04G-128-C1-R0	Push Pin			Fins Square	Top Mount	2.9 °C/W	Blue Anodized	ASIC BGA CPU LGA					Aluminum			54 mm	2.126 in	54 mm	2.126 in			25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-04G-99-C1-R0	Push Pin	1.772 in	45 mm	Fins Square	Top Mount	11.49 °C/W	Blue Anodized	ASIC BGA CPU LGA	1.772 in	45 mm			Aluminum	20 mm	0.79 in
Advanced Thermal Solutions Inc. ATS-04G-75-C1-R0	Push Pin			Fins Square	Top Mount	14.95 °C/W	Blue Anodized	ASIC BGA CPU LGA	0.984 in				Aluminum	20 mm	0.79 in	25 mm	0.984 "	25 mm
