0357-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Length - Overall [x]	Length - Overall [x]	Tail Type	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]

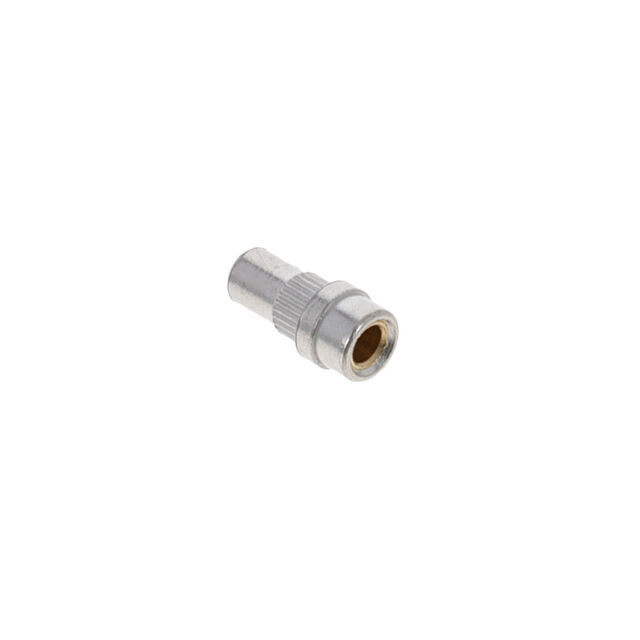

Mill-Max Manufacturing Corp. 0357-0-15-80-34-27-10-0	-55 C	125 °C	Beryllium Copper	0.22 in	5.59 mm	No Tail	1.63 mm	0.064 in	30 Áin	0.76 Ám	Gold	1.17 mm	0.81 mm	0.046 "	0.032 "	Knurled Press-Fit	2.62 mm	0.103 in	0.078 in	1.98 mm

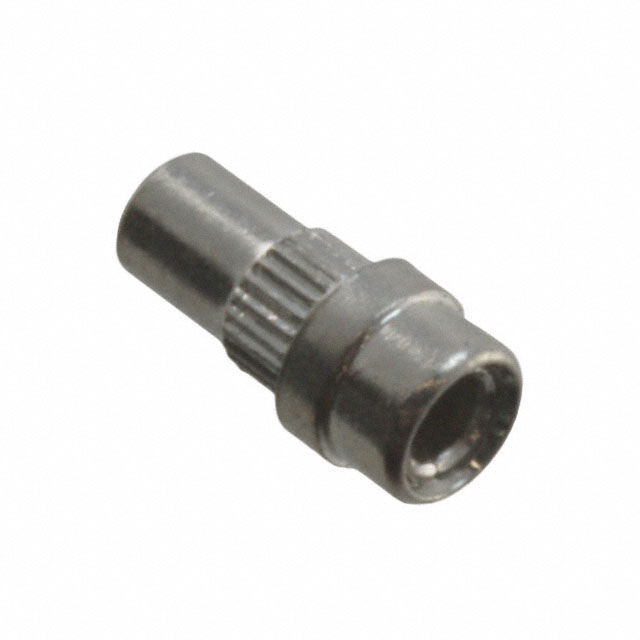

Mill-Max Manufacturing Corp. 0357-0-15-01-34-01-10-0	-55 C	125 °C	Beryllium Copper	0.22 in	5.59 mm	No Tail	1.63 mm	0.064 in	200 Áin	5.08 Ám	Tin-Lead	1.17 mm	0.81 mm	0.046 "	0.032 "	Knurled Press-Fit	2.62 mm	0.103 in	0.078 in	1.98 mm

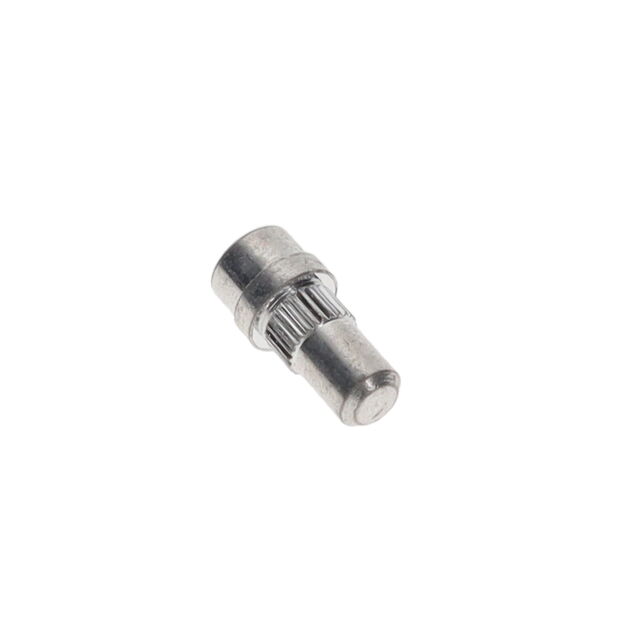

Mill-Max Manufacturing Corp. 0357-0-15-01-34-27-10-0	-55 C	125 °C	Beryllium Copper	0.22 in	5.59 mm	No Tail	1.63 mm	0.064 in	30 Áin	0.76 Ám	Gold	1.17 mm	0.81 mm	0.046 "	0.032 "	Knurled Press-Fit	2.62 mm	0.103 in	0.078 in	1.98 mm
Mill-Max Manufacturing Corp. 0357-0-15-15-34-14-10-0	-55 C	125 °C	Beryllium Copper	0.22 in	5.59 mm	No Tail	1.63 mm	0.064 in	10 Áin	0.25 Ám	Gold	1.17 mm	0.81 mm	0.046 "	0.032 "	Knurled Press-Fit	2.62 mm	0.103 in	0.078 in	1.98 mm
Mill-Max Manufacturing Corp. 0357-0-15-80-34-80-10-0	-55 C	125 °C	Beryllium Copper	0.22 in	5.59 mm	No Tail	1.63 mm	0.064 in	200 Áin	5.08 Ám	Tin	1.17 mm	0.81 mm	0.046 "	0.032 "	Knurled Press-Fit	2.62 mm	0.103 in	0.078 in	1.98 mm
