9A0924 Series

Catalog

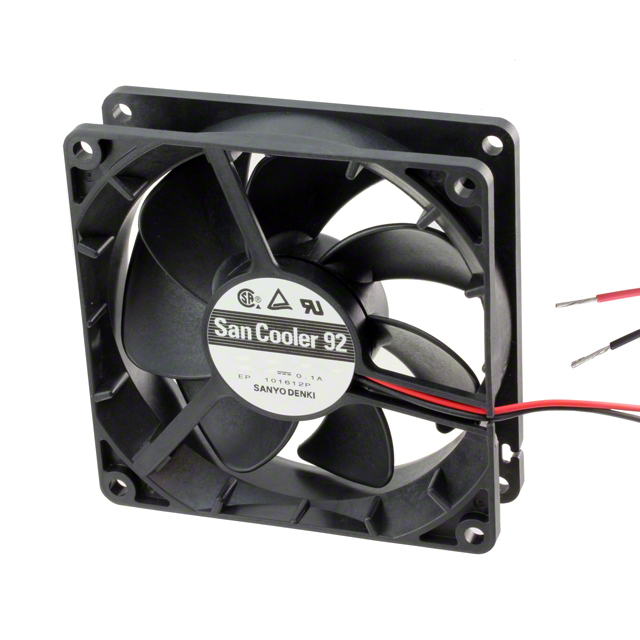

FAN AXIAL 92X25MM 24VDC WIRE

Part	Material - Blade	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Lifetime @ Temp.	Approval Agency	Noise	Static Pressure	Static Pressure	Power (Watts)	Bearing Type	Air Flow	Air Flow	Fan Type	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Features	Weight [custom]	Weight [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	RPM	Width [y]	Operating Temperature [Max]	Operating Temperature [Min]
Sanyo Denki America Inc. 9A0924H4D01	Plastic	100 mA	12	27.6 VDC	Plastic	40000 Hrs	CSA TUV UL	33 dB(A)	44.1 Pa	0.177 in H2O	2.4 W	Ball	1.43 mł/min	51.2 CFM	Tubeaxial	24 VDC	92 mm	92 mm	Locked Rotor Sensor	100.7 g	0.222 lb	-20 ░C	70 °C	3 Wire Leads	3150 RPM	25 mm
Sanyo Denki America Inc. 9A0924S402	Plastic	150 mA	12	27.6 VDC	Plastic	40000 Hrs	CSA TUV UL	39 dB(A)	56 Pa	0.225 in H2O	3.6 W	Ball	1.64 m³/min	58.6 CFM	Tubeaxial	24 VDC	92 mm	92 mm		100.7 g	0.222 lb	-20 ░C	70 °C	2 Wire Leads	3550 RPM	25 mm
Sanyo Denki America Inc. 9A0924F4021	Plastic		12	27.6 VDC	Plastic	40000 Hrs	CSA TUV UL	30 dB	32.1 Pa	0.129 in H2O	1.92 W	Ball	1.23 m³/min	43.8 CFM	Tubeaxial	24 VDC	92 mm	92 mm		100.7 g	0.222 lb	-20 ░C	70 °C	2 Wire Leads	2650 RPM	25 mm
Sanyo Denki America Inc. 9A0924G402	Plastic	190 mA	12	27.6 VDC	Plastic		CSA TUV UL	43 dB	66.5 Pa	0.267 in H2O	4.56 W	Ball	1.74 mł/min	62.2 CFM	Tubeaxial	24 VDC	92 mm	92 mm		100.7 g	0.222 lb	-20 ░C	60 °C	2 Wire Leads	3900 RPM	25 mm	60 °C	-4 °F
Sanyo Denki America Inc. 9A0924M4021	Plastic	50 mA	12	27.6 VDC	Plastic	40000 Hrs	CSA TUV UL	27 dB(A)	22.7 Pa	0.091 in H2O	1.2 W	Ball	1.03 m³/min	36.7 CFM	Tubeaxial	24 VDC	92 mm	92 mm		100.7 g	0.222 lb	-20 ░C	70 °C	2 Wire Leads	2250 RPM	25 mm
Sanyo Denki America Inc. 9A0924L4011	Plastic	40 mA	14	27.6 VDC	Plastic	40000 Hrs	CSA TUV UL	23 dB(A)	13.4 Pa	0.054 in H2O	960 mW	Ball	0.79 mł/min	28.2 CFM	Tubeaxial	24 VDC	92 mm	92 mm	Locked Rotor Protection Speed Sensor (Tach)	100.7 g	0.222 lb	-20 ░C	70 °C	3 Wire Leads	1750 RPM	25 mm
Sanyo Denki America Inc. 9A0924F4011	Plastic		12	27.6 VDC	Plastic	40000 Hrs	CSA TUV UL	30 dB	32.1 Pa	0.129 in H2O	1.92 W	Ball	1.23 m³/min	43.8 CFM	Tubeaxial	24 VDC	92 mm	92 mm	Locked Rotor Protection Speed Sensor (Tach)	100.7 g	0.222 lb	-20 ░C	70 °C	3 Wire Leads	2650 RPM	25 mm
Sanyo Denki America Inc. 9A0924H402	Plastic	100 mA	12	27.6 VDC	Plastic	40000 Hrs	CSA TUV UL	33 dB(A)	44.1 Pa	0.177 in H2O	2.4 W	Ball	1.43 mł/min	51.2 CFM	Tubeaxial	24 VDC	92 mm	92 mm		100.7 g	0.222 lb	-20 ░C	70 °C	2 Wire Leads	3150 RPM	25 mm
Sanyo Denki America Inc. 9A0924L402	Plastic	40 mA	14	27.6 VDC	Plastic	40000 Hrs	CSA TUV UL	23 dB(A)	13.4 Pa	0.054 in H2O	960 mW	Ball	0.79 mł/min	28.2 CFM	Tubeaxial	24 VDC	92 mm	92 mm		100.7 g	0.222 lb	-20 ░C	70 °C	2 Wire Leads	1750 RPM	25 mm
Sanyo Denki America Inc. 9A0924H4011	Plastic	100 mA	12	27.6 VDC	Plastic	40000 Hrs	CSA TUV UL	33 dB(A)	44.1 Pa	0.177 in H2O	2.4 W	Ball	1.43 mł/min	51.2 CFM	Tubeaxial	24 VDC	92 mm	92 mm	Locked Rotor Protection Speed Sensor (Tach)	100.7 g	0.222 lb	-20 ░C	70 °C	3 Wire Leads	3150 RPM	25 mm
