053014 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 15POS 2MM

Part	Mounting Type	Material Flammability Rating	Applications	Termination	Shrouding	Insulation Color	Contact Shape	Connector Type	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Style	Fastening Type	Contact Material	Insulation Material	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Type	Number of Rows	Number of Positions Loaded	Contact Length - Mating [x]	Contact Length - Mating [x]	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height

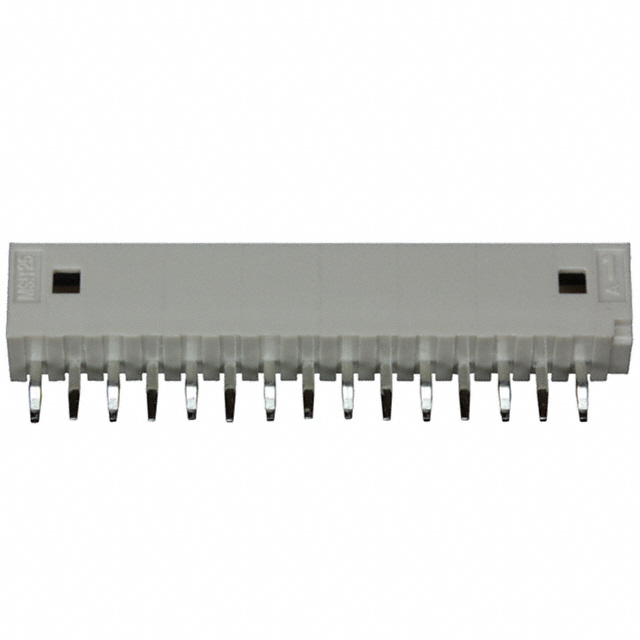

Molex 0530141510	Through Hole	UL94 V-0	General Purpose Telecommunications	Kinked Pin Solder	Shrouded - 4 Wall	Natural	Rectangular	Header	15	0.079 in	2 mm	Board to Cable/Wire	Detent Lock	Phosphor Bronze	Polyamide (PA66) Nylon 6/6 Glass Filled	Tin	3.5 mm	0.138 in	Male Blade	1	All	0.122 in	3.1 mm	8.3 mm	0.327 in	5.85 mm	0.23 in

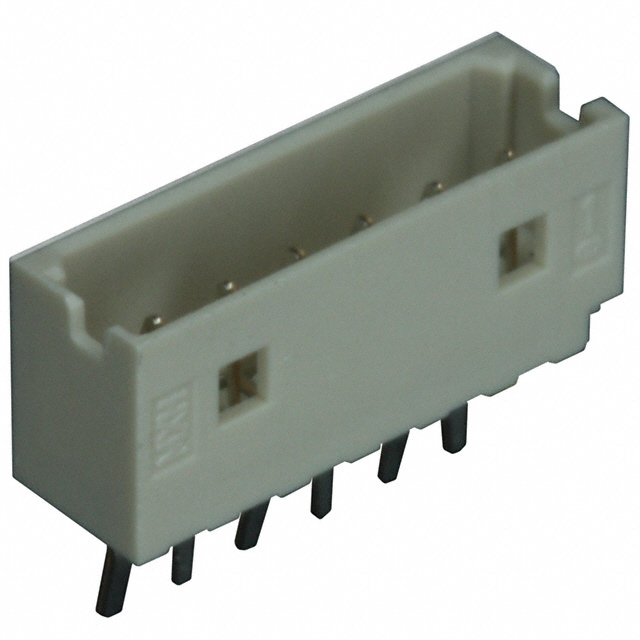

Molex 0530140610	Through Hole	UL94 V-0	General Purpose Telecommunications	Kinked Pin Solder	Shrouded - 4 Wall	Natural	Rectangular	Header	6	0.079 in	2 mm	Board to Cable/Wire	Detent Lock	Phosphor Bronze	Polyamide (PA66) Nylon 6/6 Glass Filled	Tin	3.5 mm	0.138 in	Male Blade	1	All	0.122 in	3.1 mm	8.3 mm	0.327 in	5.85 mm	0.23 in

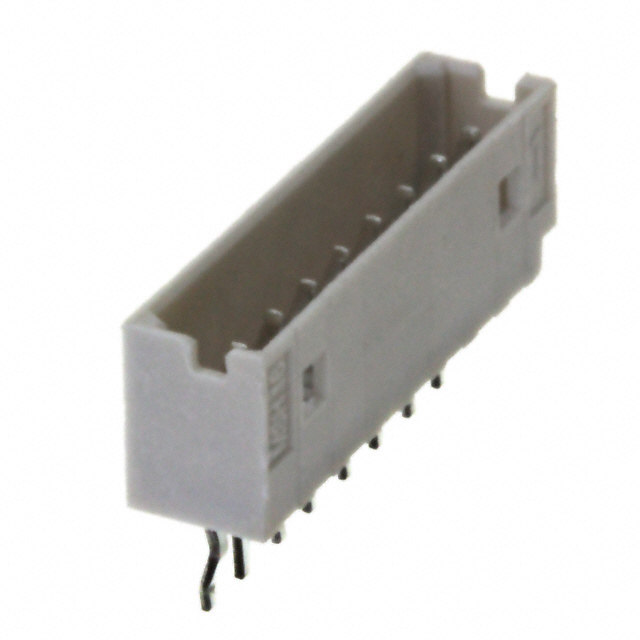

Molex 0530140810	Through Hole	UL94 V-0	General Purpose Telecommunications	Kinked Pin Solder	Shrouded - 4 Wall	Natural	Rectangular	Header	8	0.079 in	2 mm	Board to Cable/Wire	Detent Lock	Phosphor Bronze	Polyamide (PA66) Nylon 6/6 Glass Filled	Tin	3.5 mm	0.138 in	Male Blade	1	All	0.122 in	3.1 mm	8.3 mm	0.327 in	5.85 mm	0.23 in

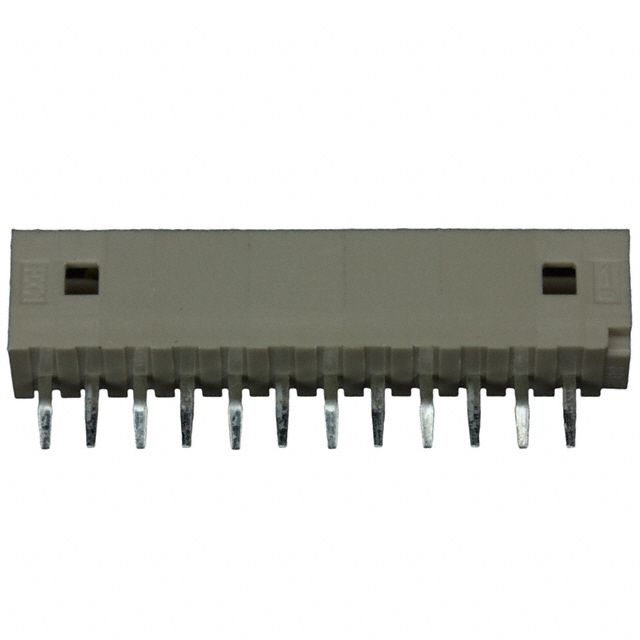

Molex 0530141210	Through Hole	UL94 V-0	General Purpose Telecommunications	Kinked Pin Solder	Shrouded - 4 Wall	Natural	Rectangular	Header	12	0.079 in	2 mm	Board to Cable/Wire	Detent Lock	Phosphor Bronze	Polyamide (PA66) Nylon 6/6 Glass Filled	Tin	3.5 mm	0.138 in	Male Blade	1	All	0.122 in	3.1 mm	8.3 mm	0.327 in	5.85 mm	0.23 in
