1969529 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

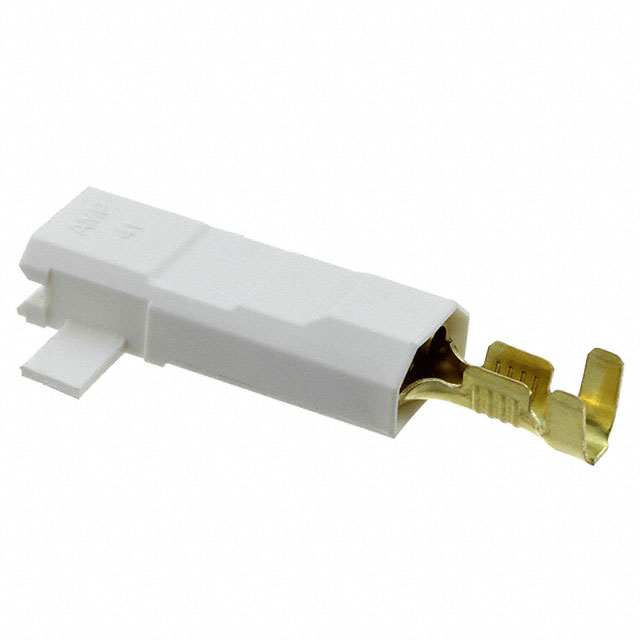

(1969529-1) ULTRA-POD 250 ASSEMBLY REC 18-14 AWG BR
| Part | Gender | Wire Gauge [Min] | Wire Gauge [Max] | Tab Width | Tab Width | Color | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Tab Thickness | Tab Thickness | Mounting Type | Contact Material | Insulation | Length - Overall [x] | Length - Overall [x] | Termination | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Female | 14 AWG | 18 AWG | 6.35 mm | 0.25 in | White | 2.79 mm | 0.17 " | 4.32 mm | 0.11 " | 0.032 in | 0.81 mm | Free Hanging (In-Line) | Brass | Mating End Insulated | 34.7 mm | 1.366 " | Crimp | Standard |
