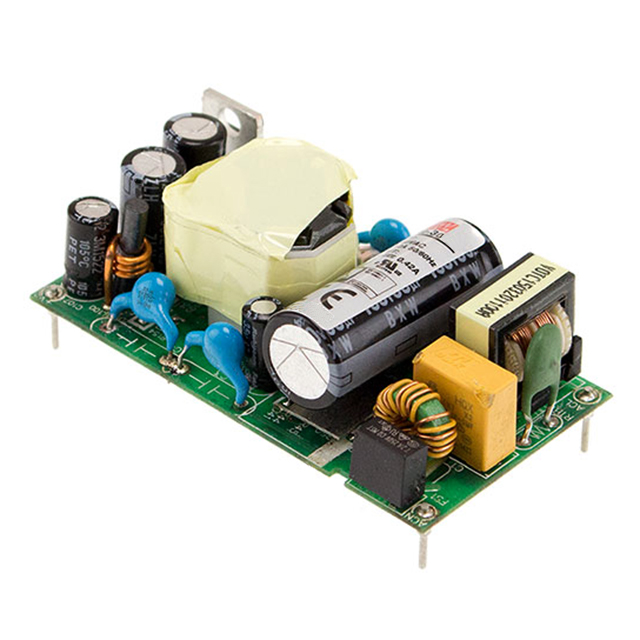

MFM-30 Series

Catalog

AC/DC CONVERTER 5V 30W

Part	Load Regulation	Line Regulation	Current - Output (Max) [Max]	Approval Agency	Mounting Type	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Features	Voltage - Output 1	Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Load Regulation
MEAN WELL USA Inc. MFM-30-5	±1%	0.5 %	6 A	CB CE cURus TUV	Through Hole	86.5 %	80 VAC	264 VAC	Medical	30 Watts	23 mm	2.58 in	1.38 in	65.5 mm	35 mm	0.91 in	1	Universal Input	5 V	Open Frame	4-DIP Module	-40 °C	85 °C
MEAN WELL USA Inc. MFM-30-48		0.5 %	630 mA	CB CE cURus TUV	Through Hole	91 %	80 VAC	264 VAC	Medical	30 Watts	23 mm	2.58 in	1.38 in	65.5 mm	35 mm	0.91 in	1	Universal Input	48 V	Open Frame	4-DIP Module	-40 °C	85 °C	0.5 %
MEAN WELL USA Inc. MFM-30-15		0.5 %	2 A	CB CE cURus TUV	Through Hole	89 %	80 VAC	264 VAC	Medical	30 Watts	23 mm	2.58 in	1.38 in	65.5 mm	35 mm	0.91 in	1	Universal Input	15 V	Open Frame	4-DIP Module	-40 °C	85 °C	0.5 %
MEAN WELL USA Inc. MFM-30-24		0.5 %	1.3 A	CB CE cURus TUV	Through Hole	90 %	80 VAC	264 VAC	Medical	31 W	23 mm	2.58 in	1.38 in	65.5 mm	35 mm	0.91 in	1	Universal Input	24 V	Open Frame	4-DIP Module	-40 °C	85 °C	0.5 %
MEAN WELL USA Inc. MFM-30-3.3	±1%	0.5 %	6 A	CB CE cURus TUV	Through Hole	82.5 %	80 VAC	264 VAC	Medical	20 W	23 mm	2.58 in	1.38 in	65.5 mm	35 mm	0.91 in	1	Universal Input	3.3 V	Open Frame	4-DIP Module	-40 °C	85 °C
MEAN WELL USA Inc. MFM-30-12		0.5 %	2.5 A	CB CE cURus TUV	Through Hole	90 %	80 VAC	264 VAC	Medical	30 Watts	23 mm	2.58 in	1.38 in	65.5 mm	35 mm	0.91 in	1	Universal Input	12 V	Open Frame	4-DIP Module	-40 °C	85 °C	0.5 %
