JN14AH Series
Manufacturer: JAE Electronics
Beta
⌘K

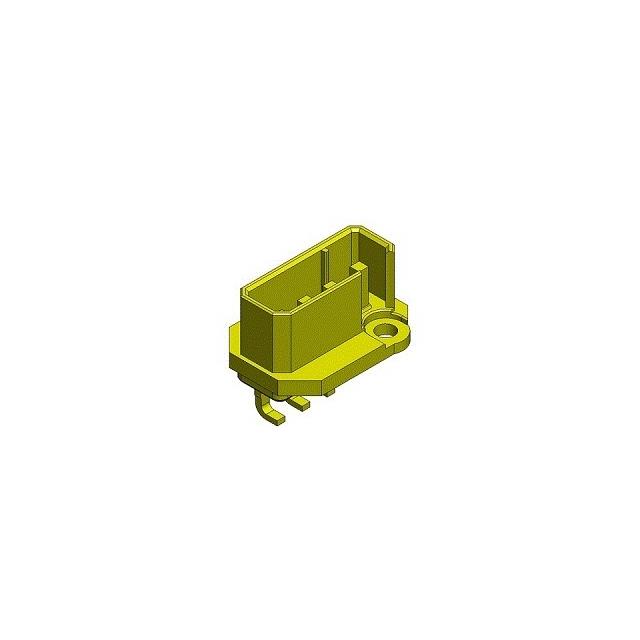

COMPACT WATERPROOF CONNECTOR 4 P
| Part | Applications | Insulation Color | Current Rating (Amps) | Mounting Type | Style | Voltage Rating | Contact Shape | Features | Pitch - Mating | Pitch - Mating | Number of Rows | Number of Positions | Contact Type | Insulation Height | Insulation Height | Number of Positions Loaded | Termination | Contact Finish - Mating | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Insulation Material | Contact Material | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Industrial | Black | 7 A | Right Angle Through Hole | Board to Cable/Wire | 240 VAC | Square | Mounting Flange Waterproof | 3.2 mm | 0.126 in | 1 | 4 | Male Pin | 0.244 in | 6.2 mm | All | Solder | Gold | Shrouded - 4 Wall | 125 °C | -40 C | Receptacle | Synthetic Resin | Copper Alloy | Threaded |
