842-106 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 106POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Read Out	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch	Pitch	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions/Bay/Row	Contact Material	Contact Finish	Termination	Number of Rows [custom]	Card Type	Color	Gender	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Features
EDAC Inc. 842-106-559-202	Diallyl Phthalate (DAP)	2	Dual	Cantilever	0.25 Ám	10 Áin	106	0.1 "	2.54 mm	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	53	Copper Alloy	Gold	Solder	2	Non Specified - Dual Edge	Green	Female	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C

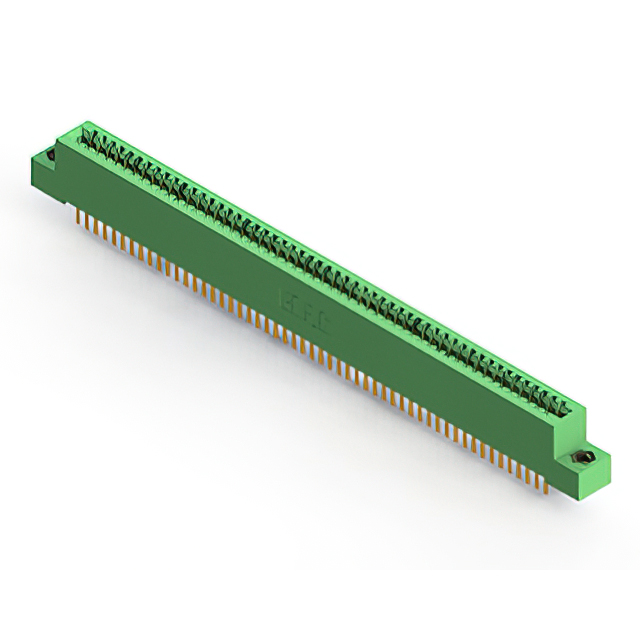

EDAC Inc. 842-106-520-208	Diallyl Phthalate (DAP)	2	Dual	Cantilever	0.25 Ám	10 Áin	106	0.1 "	2.54 mm	4-40 Flush Mount Threaded Insert Top Opening			53	Copper Alloy	Gold	Solder	2	Non Specified - Dual Edge	Green	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C
EDAC Inc. 842-106-544-207	Diallyl Phthalate (DAP)	2	Dual	Cantilever	0.25 Ám	10 Áin	106	0.1 "	2.54 mm	Flush Mount M3 Threaded Insert Top Opening			53	Copper Alloy	Gold	Wire Wrap	2	Non Specified - Dual Edge	Green	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C
EDAC Inc. 842-106-540-212	Diallyl Phthalate (DAP)	2	Dual	Cantilever	0.25 Ám	10 Áin	106	0.1 "	2.54 mm	Flush Mount Side Opening Unthreaded	3.25 mm	0.128 "	53	Copper Alloy	Gold	Wire Wrap	2	Non Specified - Dual Edge	Green	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C
EDAC Inc. 842-106-524-204	Diallyl Phthalate (DAP)	2	Dual	Cantilever	0.25 Ám	10 Áin	106	0.1 "	2.54 mm	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	53	Copper Alloy	Gold	Solder	2	Non Specified - Dual Edge	Green	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C
EDAC Inc. 842-106-558-202	Diallyl Phthalate (DAP)	2	Dual	Cantilever	0.25 Ám	10 Áin	106	0.1 "	2.54 mm	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	53	Copper Alloy	Gold	Solder	2	Non Specified - Dual Edge	Green	Female	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C
EDAC Inc. 842-106-544-212	Diallyl Phthalate (DAP)	2	Dual	Cantilever	0.25 Ám	10 Áin	106	0.1 "	2.54 mm	Flush Mount Side Opening Unthreaded	3.25 mm	0.128 "	53	Copper Alloy	Gold	Wire Wrap	2	Non Specified - Dual Edge	Green	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C

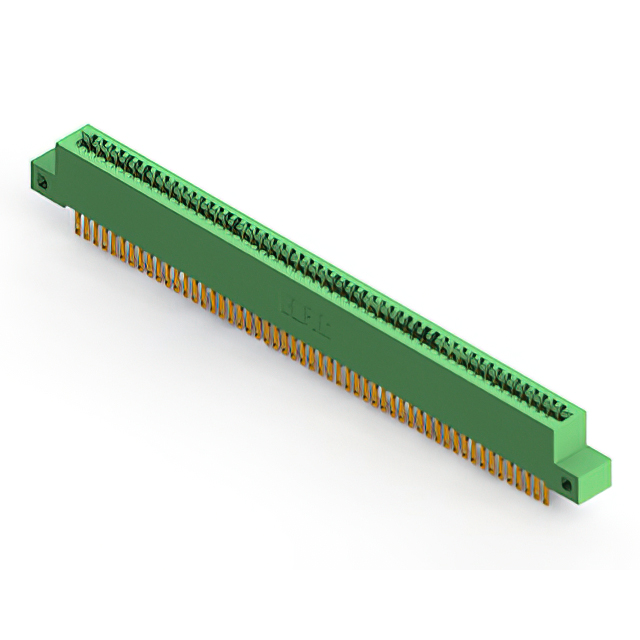

EDAC Inc. 842-106-500-212	Diallyl Phthalate (DAP)	2	Dual	Cantilever	0.25 Ám	10 Áin	106	0.1 "	2.54 mm	Flush Mount Side Opening Unthreaded	3.25 mm	0.128 "	53	Copper Alloy	Gold	Solder Eyelet(s)	2	Non Specified - Dual Edge	Green	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C

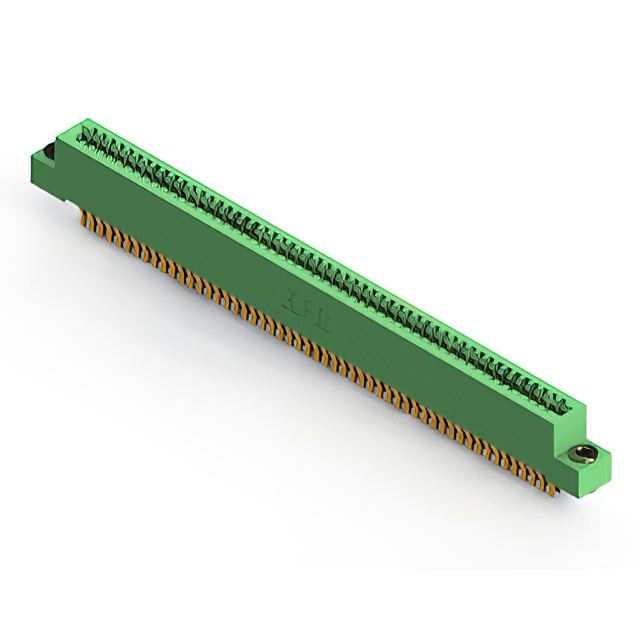

EDAC Inc. 842-106-560-203	Diallyl Phthalate (DAP)	2	Dual	Cantilever	0.25 Ám	10 Áin	106	0.1 "	2.54 mm	Floating Bobbin Flush Mount	2.95 mm	0.116 "	53	Copper Alloy	Gold	Solder	2	Non Specified - Dual Edge	Green	Female	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Card Extender

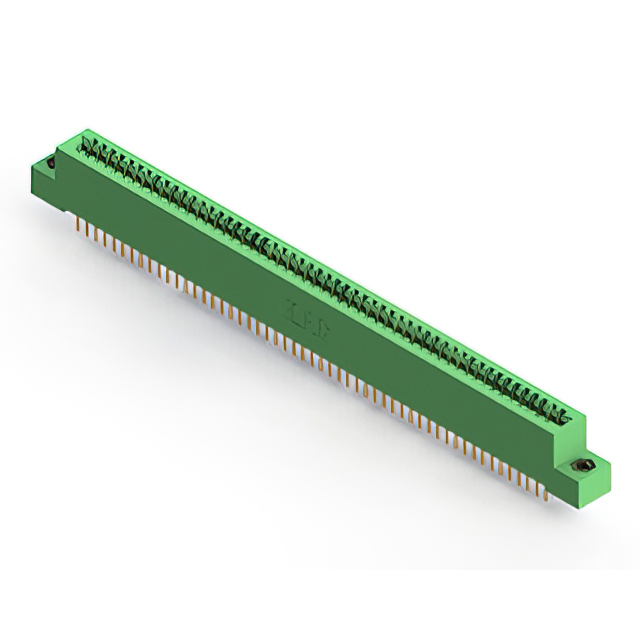

EDAC Inc. 842-106-524-208	Diallyl Phthalate (DAP)	2	Dual	Cantilever	0.25 Ám	10 Áin	106	0.1 "	2.54 mm	4-40 Flush Mount Threaded Insert Top Opening			53	Copper Alloy	Gold	Solder	2	Non Specified - Dual Edge	Green	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C
