76SC Series

Catalog

SWITCH ROCKER DIP SPDT 0.15A 30V

Part	Body Material	Mechanical Life	Electrical Life	Length	Length	Mounting Type	Actuator Level	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Circuit	Contact Material	Termination Style	Height Above Board [z]	Height Above Board [z]	Voltage Rating	Contact Finish	Pitch	Pitch	Actuator Type	Features

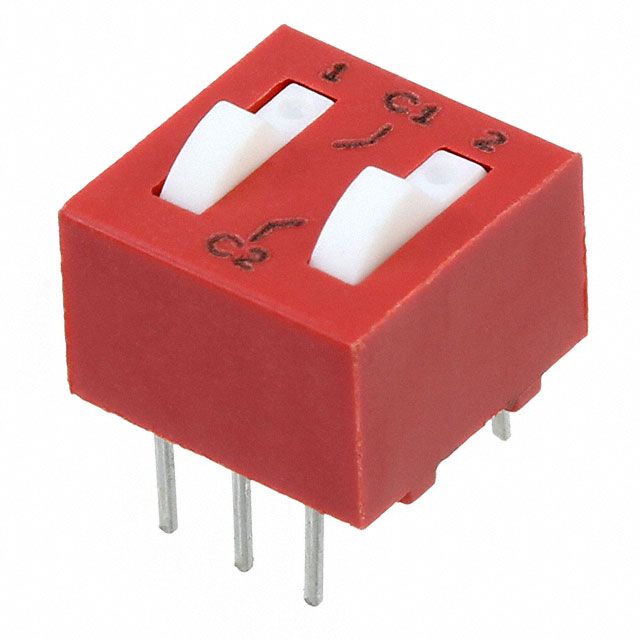

Grayhill Inc. 76SC02T	Thermoplastic	2000 Cycles	2000 Steps	9.65 mm	0.38 in	Through Hole	Raised	85 °C	-40 C	2	SPDT	Copper Alloy	PC Pin	0.315 in	8 mm	30 VDC	Gold	2.54 mm	0.1 "	Rocker

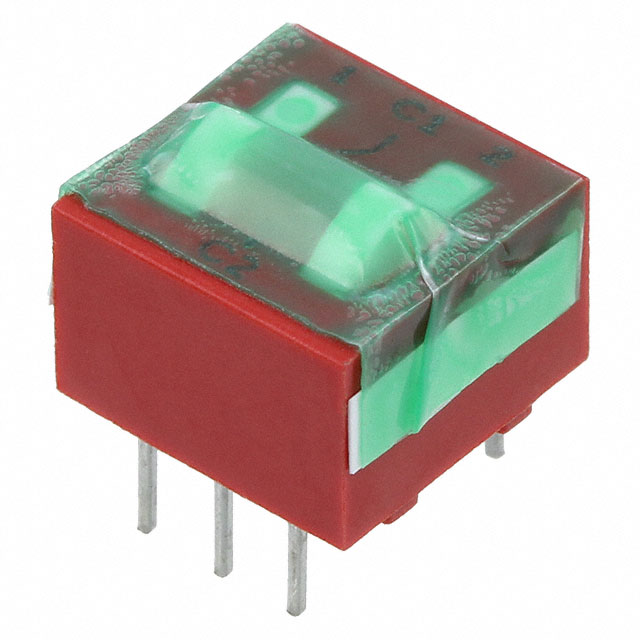

Grayhill Inc. 76SC02ST	Thermoplastic	2000 Cycles	2000 Steps	9.65 mm	0.38 in	Through Hole	Raised	85 °C	-40 C	2	SPDT	Copper Alloy	PC Pin	0.315 in	8 mm	30 VDC	Gold	2.54 mm	0.1 "	Rocker	Tape Seal
Grayhill Inc. 76SC04ST	Thermoplastic	2000 Cycles	2000 Steps			Through Hole	Raised	85 °C	-40 C	4	SPDT	Copper Alloy	PC Pin	0.315 in	8 mm	30 VDC	Gold	2.54 mm	0.1 "	Rocker	Tape Seal
