2145 Series

Manufacturer: Oupiin

Catalog

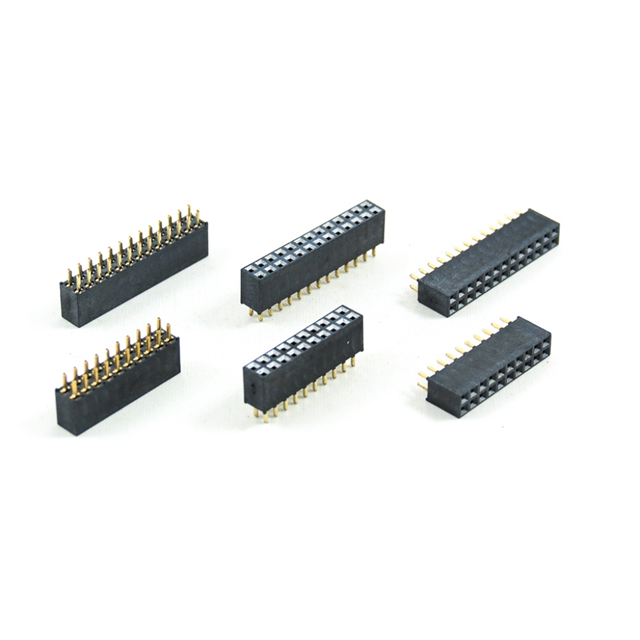

PCB SOCKET, DOUBLE ROW, 40 PIN,

Part	Contact Shape	Contact Finish Thickness - Post	Contact Material	Insulation Material	Termination	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Finish Thickness - Mating	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Number of Rows [custom]	Connector Type	Contact Type	Number of Positions	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Rows
Oupiin 2145-2X20G00SA	Square	Flash	Copper Alloy	Plastic	Solder	All	0.079 "	2 mm	Push-Pull	Flash	Through Hole	2 mm	0.079 in	Gold	2	Socket	Female Socket	40	Gold	2.4 mm	0.094 in	-65 ░C	125 °C	UL94 V-0
Oupiin 2145-2X09C00SA	Square	Flash	Copper Alloy	Plastic	Solder	All	0.079 "	2 mm	Push-Pull	Flash	Through Hole	2 mm	0.079 in	Gold	2	Socket	Female Socket	18	Gold	2.4 mm	0.094 in	-65 ░C	125 °C	UL94 V-0

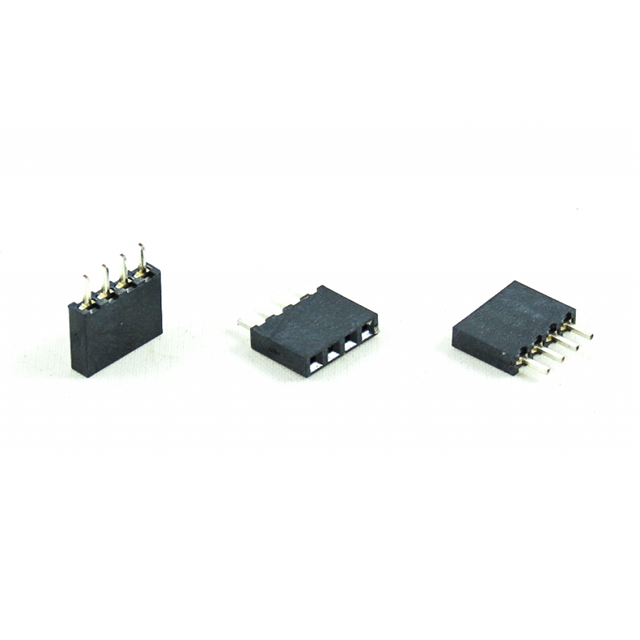

Oupiin 2145-1X10C00SA	Square	Flash	Copper Alloy	Plastic	Solder	All	0.079 "	2 mm	Push-Pull	Flash	Through Hole			Gold		Socket	Female Socket	10	Gold	2.4 mm	0.094 in	-65 ░C	125 °C	UL94 V-0	1
Oupiin 2145-1X36C00SA	Square	Flash	Copper Alloy	Plastic	Solder	All	0.079 "	2 mm	Push-Pull	Flash	Through Hole			Gold		Socket	Female Socket	36	Gold	2.4 mm	0.094 in	-65 ░C	125 °C	UL94 V-0	1
Oupiin 2145-1X04C00SA	Square	Flash	Copper Alloy	Plastic	Solder	All	0.079 "	2 mm	Push-Pull	Flash	Through Hole			Gold		Socket	Female Socket	4	Gold	2.4 mm	0.094 in	-65 ░C	125 °C	UL94 V-0	1
