Micro-packaged Diodes for ESD Protection
Key Features
• Low Capacitance (4.0pF Max, I/O to GND)

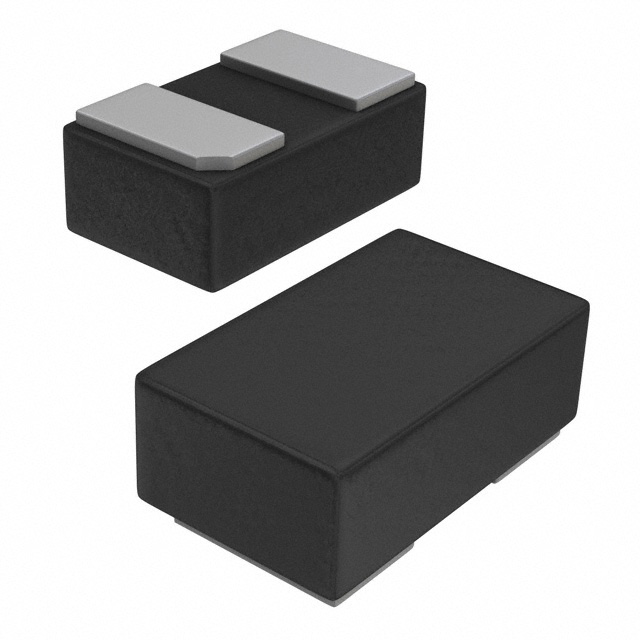

• Small Body Outline Dimensions 01005 Size: 0.445x0.240mm
• Protection for the following IEC Standards: IEC61000-4-2 (Level 4)
• Low ESD Clamping Voltage
• PB-free, Halogen free / BFR free and are RoHS Compliant
Description
AI
The ESDM1131 is designed to protect voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. Because of its small size, it is suited for use in smartphone, smart-watch, or many other portable / wearableapplications where board space comes at a premium.
