PSC05 Series

Catalog

DISPLAY 16SEG 0.5" SGL RED 18DIP

Part	Common Pin	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case [x]	Package / Case [x]	Display Type	Millicandela Rating	Number of Characters	Power Dissipation (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Current - Test	Wavelength - Peak	Digit/Alpha Size	Digit/Alpha Size	Color
Kingbright PSC05-11SRWA	Common Cathode	1.85 V	18-DIP	0.5 in	12.7 mm	16-Segment Alphanumeric	37 mcd	1	75 mw	9.5 mm	16 mm	0.63 "	0.374 in	0.984 "	25 mm	20 mA	660 nm	12.7 mm	0.5 in	Red

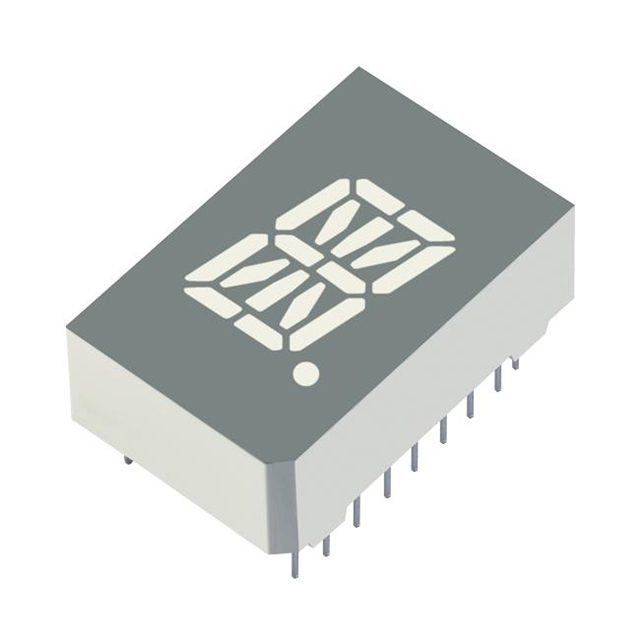

Kingbright PSC05-12SRWA	Common Cathode	1.85 V	18-DIP	0.5 in	12.7 mm	16-Segment Alphanumeric	37 mcd	1	75 mw	9.5 mm	16 mm	0.63 "	0.374 in	0.984 "	25 mm	20 mA	660 nm	12.7 mm	0.5 in	Red
Kingbright PSC05-12EWA	Common Cathode	2 V	18-DIP	0.5 in	12.7 mm	16-Segment Alphanumeric		1	75 mw	9.5 mm	16 mm	0.63 "	0.374 in	0.984 "	25 mm	20 mA	627 nm	12.7 mm	0.5 in	Red
Kingbright PSC05-12GWA	Common Cathode	2.2 V	18-DIP	0.5 in	12.7 mm	16-Segment Alphanumeric	10 mcd	1	62.5 mW	9.5 mm	16 mm	0.63 "	0.374 in	0.984 "	25 mm	20 mA	565 nm	12.7 mm	0.5 in	Green
Kingbright PSC05-12YWA	Common Cathode	2.1 V	18-DIP	0.5 in	12.7 mm	16-Segment Alphanumeric	4.8 mcd	1	75 mw	9.5 mm	16 mm	0.63 "	0.374 in	0.984 "	25 mm	20 mA	590 nm	12.7 mm	0.5 in	Yellow
Kingbright PSC05-11YWA	Common Cathode	2.1 V	18-DIP	0.5 in	12.7 mm	16-Segment Alphanumeric	4.8 mcd	1	75 mw	9.5 mm	16 mm	0.63 "	0.374 in	0.984 "	25 mm	20 mA	590 nm	12.7 mm	0.5 in	Yellow
Kingbright PSC05-11GWA	Common Cathode	2.2 V	18-DIP	0.5 in	12.7 mm	16-Segment Alphanumeric	10 mcd	1	62.5 mW	9.5 mm	16 mm	0.63 "	0.374 in	0.984 "	25 mm	20 mA	565 nm	12.7 mm	0.5 in	Green
