FLKM Series

Terminal Block Interface Modules FLKM-D25 SUB/B

Manufacturer: Phoenix Contact

Catalog

Terminal Block Interface Modules FLKM-D25 SUB/B

Catalog

Terminal Block Interface Modules FLKM-D25 SUB/B

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Per Contact)	Control Side Cable Retainer	Length	Length	Voltage - Rated	Features	Wire Gauge [Max]	Wire Gauge [Min]	Control Side Connection	Positions / Poles	Width [x]	Width [x]	Process Side Connection	Width	Length [x]	Length [x]	Positions / Poles [custom]	Convert To (Adapter End)	Mounting Type	Convert From (Adapter End)	Convert From (Adapter End)
Phoenix Contact 2281128	-20 ░C	50 °C	2.5 A	Jackscrew Socket	1.331 in	33.81 mm	125 V	Label Holder	24 AWG	12 AWG	D-Sub Male	9	3.031 "	76.99 mm	Terminal Blocks - Screw Connection

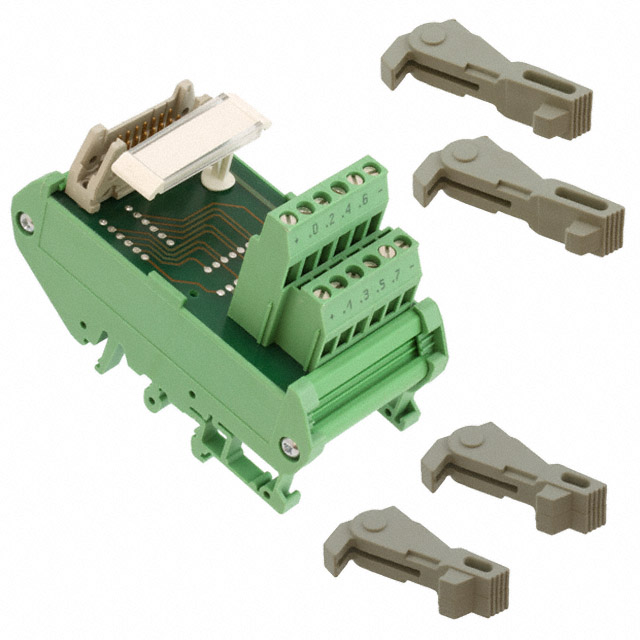

Phoenix Contact 2284581	-20 ░C	50 °C	1 A	Latches			60 VDC	Label Holder	24 AWG	12 AWG	Rectangular Male	14	3.543 "		Terminal Blocks - Screw Connection	90 mm	1.772 in	45 mm

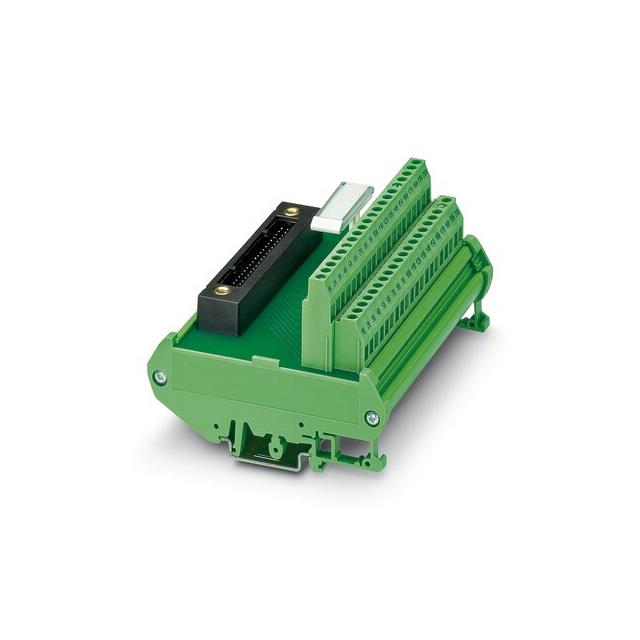

Phoenix Contact 2314642	-20 ░C	50 °C	1 A	Jackscrew Socket	4.409 "	111.99 mm	24 VAC	Label Holder	24 AWG	12 AWG	Rectangular Male - KS Interface	40	3.543 "		Terminal Blocks - Screw Connection	90 mm

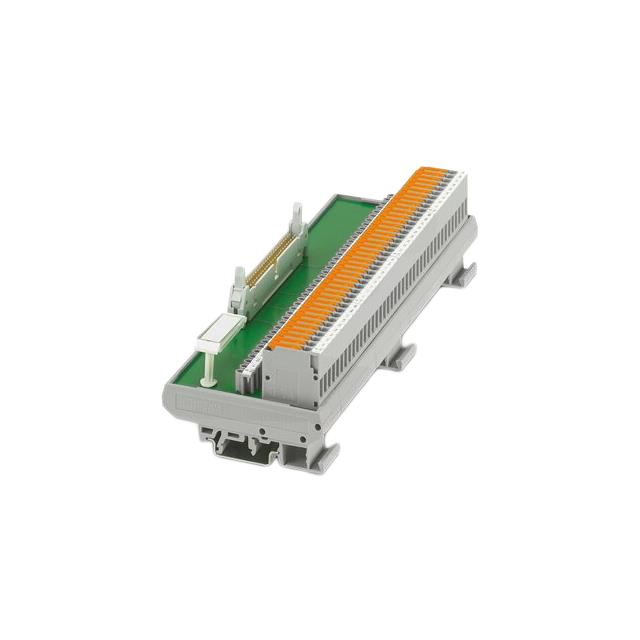

Phoenix Contact 2290614	-20 ░C	50 °C	1 A	Latches	8.425 in	214 mm	60 VDC	Knife Disconnect Label Holder Test Sockets	24 AWG	12 AWG	Rectangular Male	50	3.031 "	76.99 mm	Terminal Blocks - Screw Connection
Phoenix Contact 2302890	-20 ░C	50 °C	1 A	Latches			60 VDC	Label Holder	24 AWG	12 AWG	Rectangular Male	14	3.031 "	76.99 mm	Terminal Blocks - Spring Connection		1.772 in	45 mm

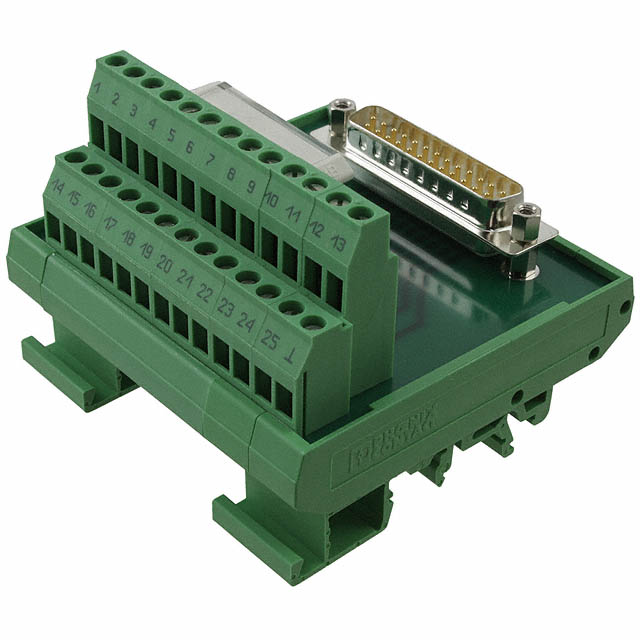

Phoenix Contact 2281144	-20 ░C	50 °C	2.5 A	Jackscrew Socket			125 V	Label Holder	24 AWG	12 AWG	D-Sub Male		3.031 "	76.99 mm	Terminal Blocks - Screw Connection		3.102 in	78.79 mm	25
Phoenix Contact 2304021	-20 ░C	50 °C	2.5 A	Jackscrew Socket			125 V	Label Holder	24 AWG	12 AWG	D-Sub Male	50	3.031 "	76.99 mm	Terminal Blocks - Spring Connection		0.48 '	146.3 mm
Phoenix Contact 2302984	-20 ░C	50 °C	1.5 A	Jackscrew Socket	1.331 in	33.81 mm	125 V	Label Holder	24 AWG	12 AWG	D-Sub Male	9	3.031 "	76.99 mm	Terminal Blocks - Spring Connection

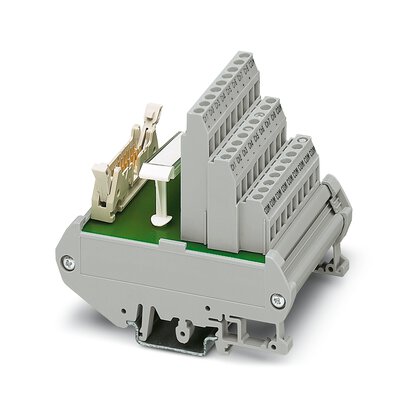

Phoenix Contact 2304432	-20 ░C	50 °C	1 A	Latches			60 VDC	Label Holder	24 AWG	12 AWG	Rectangular Male	16	3.543 "		Terminal Blocks - Screw Connection	90 mm	1.772 in	45 mm

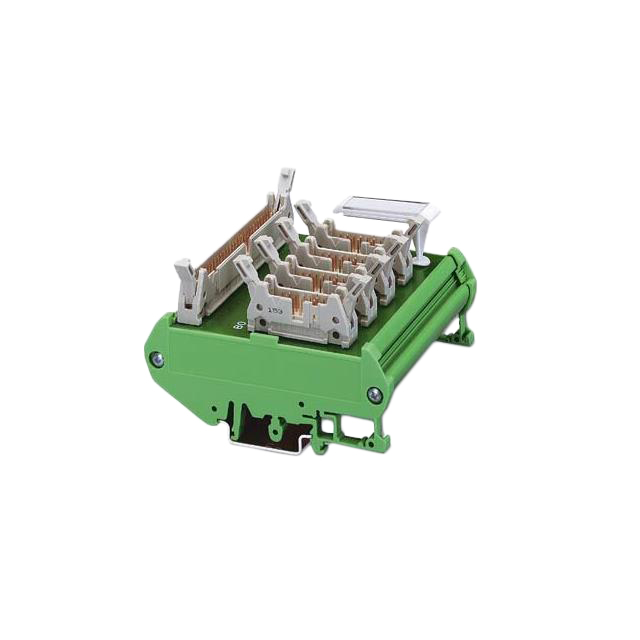

Phoenix Contact 2284594																				Rectangular Connector Male Pins 50 Pos 2 Rows	DIN Rail	Rectangular Connector (4)	4 Rows 14 Pos
