1106436 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

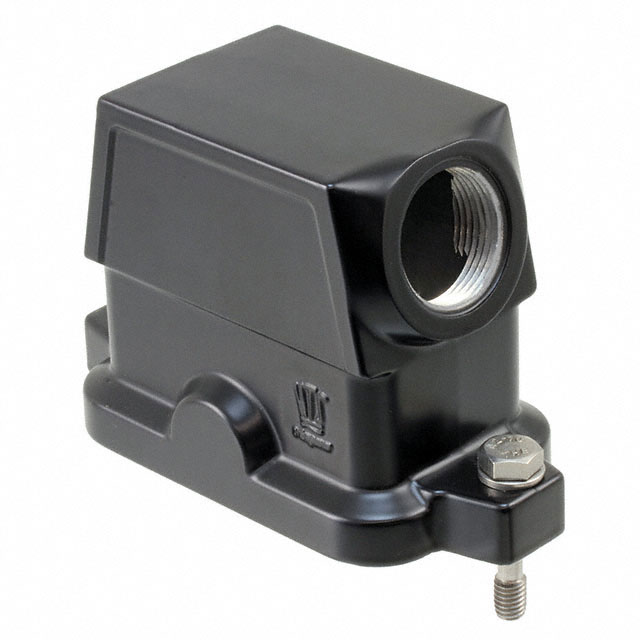

CONN HOOD SIZE 4 M32
| Part | Housing Finish | Housing Material | Connector Type | Lock Location | Operating Temperature [Max] | Operating Temperature [Min] | Size | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Housing Color | Thread Size | Ingress Protection | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Aluminum Oxide | Aluminum Alloy Die Cast | Hood | Screw Locks on Hood | 80 °C | -40 C | 4 | 109 mm | 2.756 " | 70 mm | 4.291 in | 53 mm | 2.087 " | Black | M32 | IP68 IP69K | |
TE Connectivity AMP Connectors | Powder Coated | Aluminum Alloy Die Cast | Hood | Screw Locks on Hood | 4 | 109 mm | 2.756 " | 70 mm | 4.291 in | 53 mm | 2.087 " | Gray | M25 | IP68 IP69K | Top Entry | ||
 TE Connectivity AMP Connectors | Aluminum Oxide | Aluminum Alloy Die Cast | Hood | Screw Locks on Hood | 4 | 109 mm | 2.756 " | 70 mm | 4.291 in | 53 mm | 2.087 " | Black | M32 | IP68 IP69K | Side Entry |
