AAC22 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

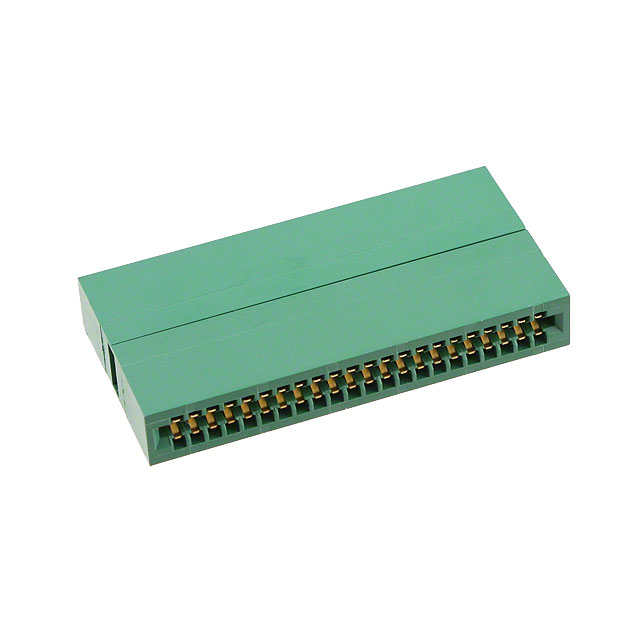

CONN EDGE ADAPT CARD-CARD 44POS
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Per Contact) | Card Thickness | Card Thickness | Mounting Type | Contact Finish | Contact Material | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Adapter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 150 °C | -65 ░C | 3 A | 1.57 mm | 0.062 in | Panel Mount | Gold | Beryllium Copper | 44 | 30 Áin | 0.76 Ám | Top Opening Unthreaded | 0.125 " | 3.18 mm | Card Slot to Card Slot |
 Sullins Connector Solutions | 150 °C | -65 ░C | 3 A | 1.57 mm | 0.062 in | Free Hanging (In-Line) | Gold | Beryllium Copper | 44 | 30 Áin | 0.76 Ám | Card Slot to Card Slot |
