630-36W Series
Manufacturer: EDAC Inc.
Beta
⌘K

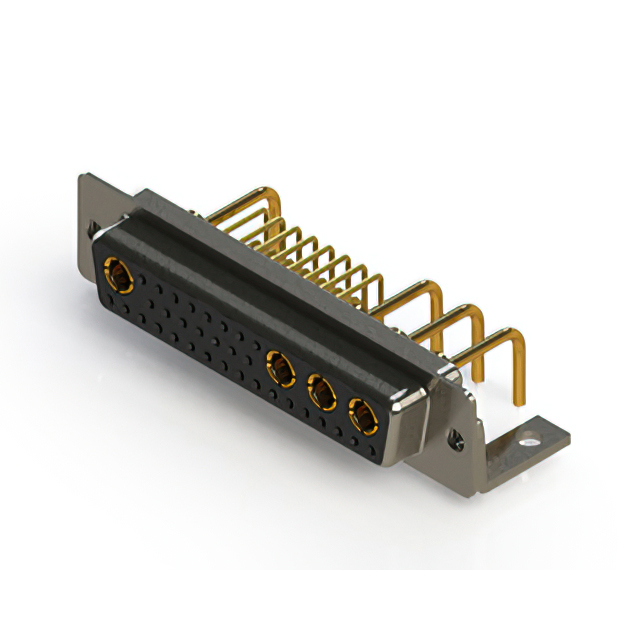

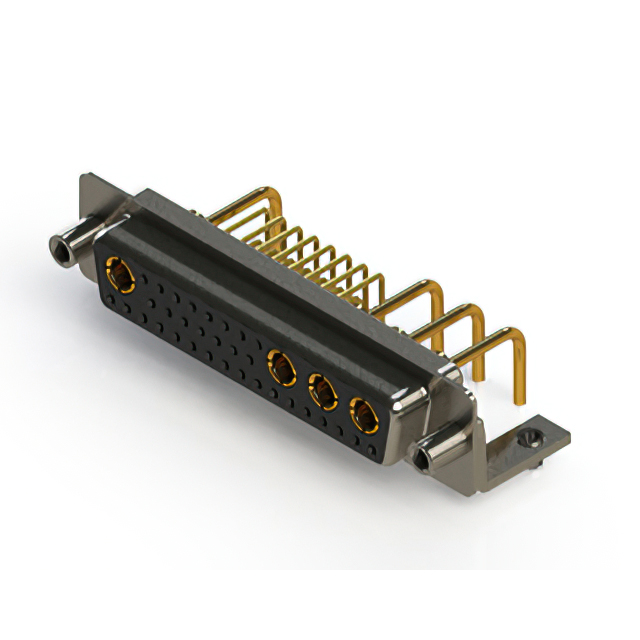

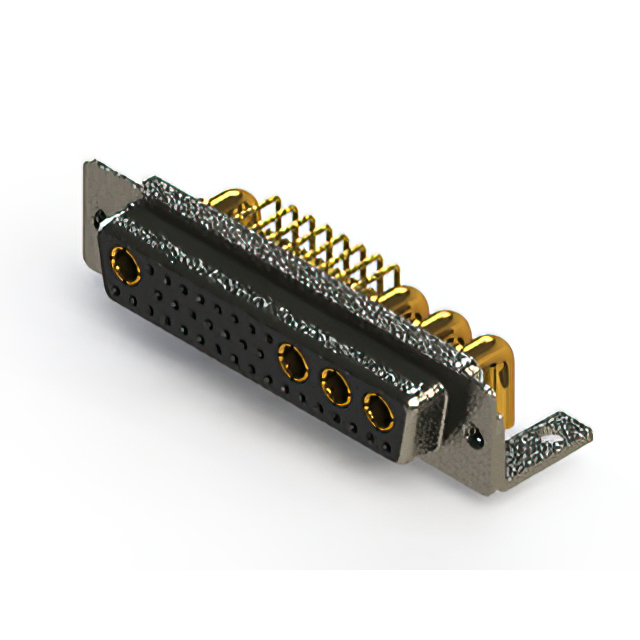

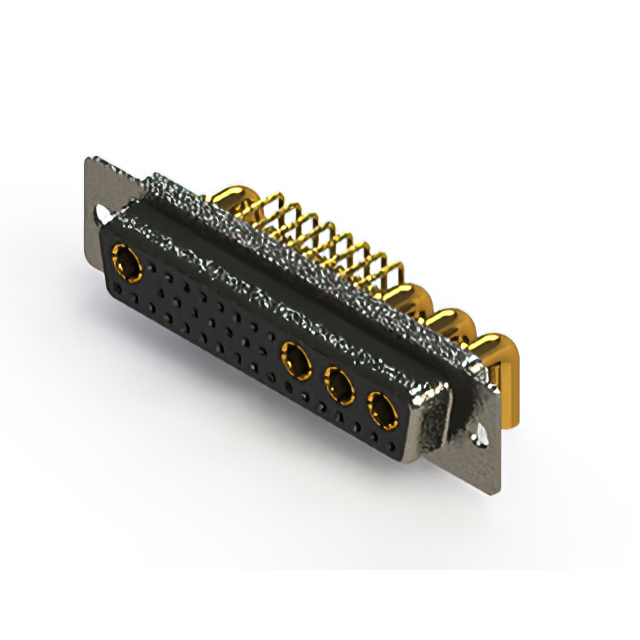

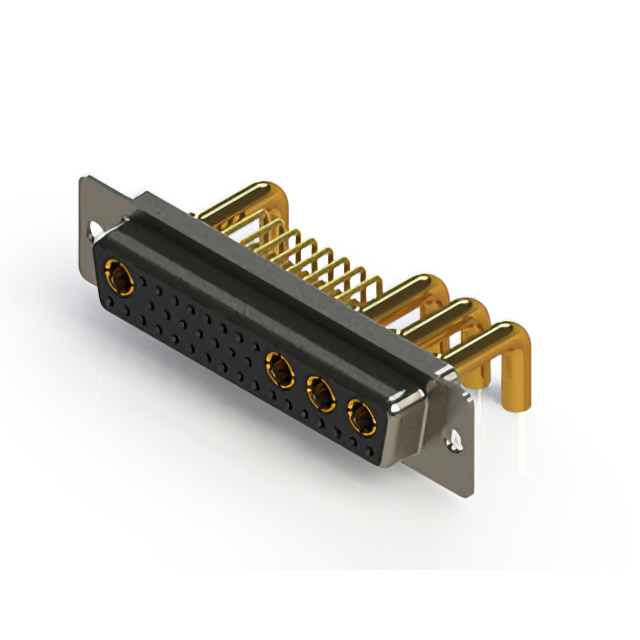

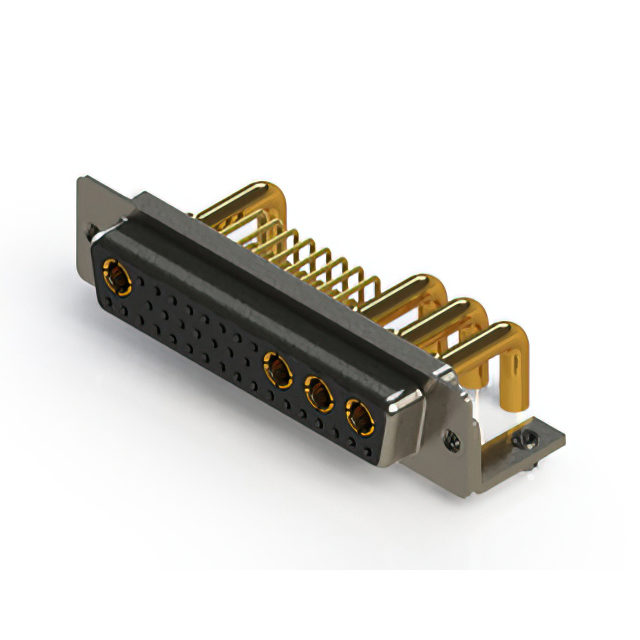

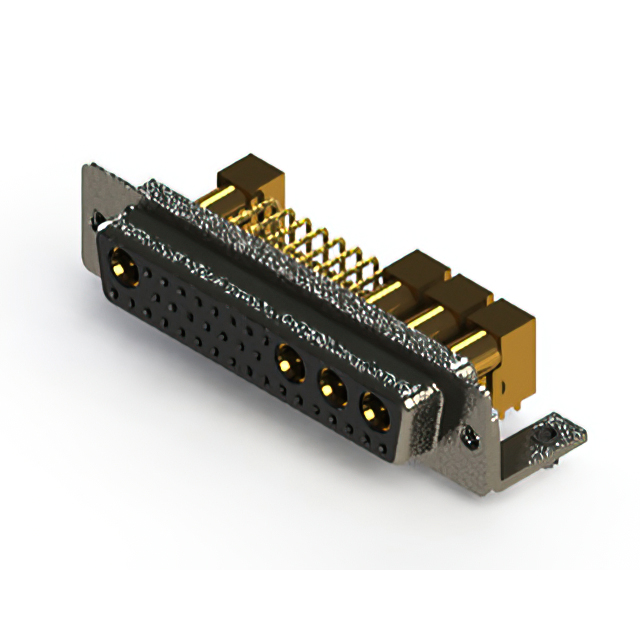

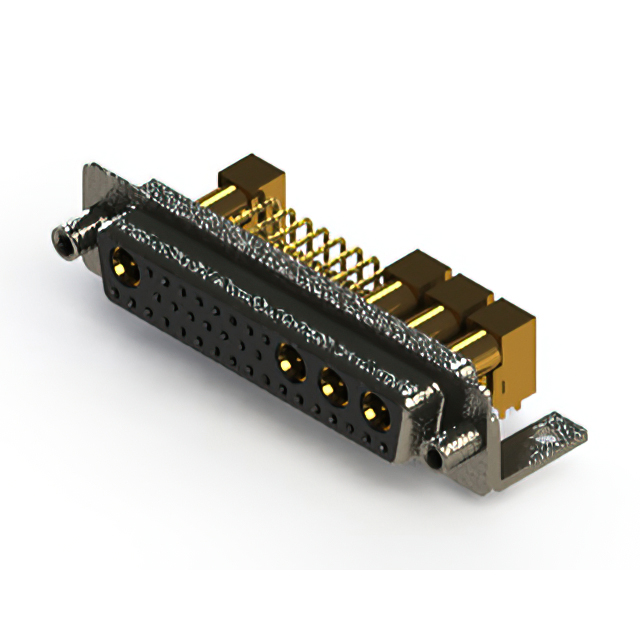

CONN D-SUB RCPT 36POS R/A SLDR
| Part | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Color | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Termination | Number of Rows [custom] | Contact Type | Material Flammability Rating | Flange Feature | Mounting Type | Connector Style | Features | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Number of Positions [custom] | Number of Positions [custom] | Connector Type | Backset Spacing | Backset Spacing | Current Rating (Amps) | Flange Feature | Shell Material, Finish | Contact Finish Thickness | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | 125 VDC | Black | Gold | 30 Áin | 0.76 Ám | Solder | 2 | Coax Signal | UL94 V-0 | Housing/Shell (M3) | Right Angle Through Hole | Combo D-Sub | Board Lock Mounting Brackets | 36W4 D DD | 5 | 32 | 4 | Receptacle Female Sockets | 9.4 mm | 0.37 in | |||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | 125 VDC | Black | Gold | 30 Áin | 0.76 Ám | Solder | 2 | Signal and Power | UL94 V-0 | Housing/Shell | Right Angle Through Hole | Combo D-Sub | 36W4 D DD | 5 | Receptacle Female Sockets | 9.4 mm | 0.37 in | 5 A 30 A | 4-40 | Nickel Plated Steel | |||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | 125 VDC | Black | Gold | Solder | 2 | Signal and Power | UL94 V-0 | Housing/Shell | Right Angle Through Hole | Combo D-Sub | Mounting Brackets | 36W4 D DD | 5 | Receptacle Female Sockets | 9.4 mm | 0.37 in | 4-40 | Nickel Plated Steel | Flash | 10A 5A | |||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | 125 VDC | Black | Gold | Solder | 2 | Signal and Power | UL94 V-0 | 4-40 | Right Angle Through Hole | Combo D-Sub | Board Lock Mounting Brackets | 36W4 D DD | 5 | Receptacle Female Sockets | 9.4 mm | 0.37 in | Flash | 10A 5A | |||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | 125 VDC | Black | Gold | 30 Áin | 0.76 Ám | Solder | 2 | Signal and Power | UL94 V-0 | Housing/Shell (Unthreaded) | Right Angle Through Hole | Combo D-Sub | Shielded | 36W4 D DD | 5 | Receptacle Female Sockets | 9.4 mm | 0.37 in | Nickel Plated Steel | 20A 5A | |||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | 125 VDC | Black | Gold | 30 Áin | 0.76 Ám | Solder | 2 | Signal and Power | UL94 V-0 | Housing/Shell (Unthreaded) | Right Angle Through Hole | Combo D-Sub | Shielded | 36W4 D DD | 5 | Receptacle Female Sockets | 9.4 mm | 0.37 in | 5 A 40 A | Nickel Plated Steel | |||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | 125 VDC | Black | Gold | 30 Áin | 0.76 Ám | Solder | 2 | Signal and Power | UL94 V-0 | Housing/Shell | Right Angle Through Hole | Combo D-Sub | Board Lock Mounting Brackets | 36W4 D DD | 5 | Receptacle Female Sockets | 9.4 mm | 0.37 in | 5 A 40 A | 4-40 | Nickel Plated Steel | ||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | 125 VDC | Black | Gold | Solder | 2 | Signal and Power | UL94 V-0 | Housing/Shell (M3) | Right Angle Through Hole | Combo D-Sub | Mounting Brackets | 36W4 D DD | 5 | Receptacle Female Sockets | 9.4 mm | 0.37 in | Flash | 10A 5A | |||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | 125 VDC | Black | Gold | 30 Áin | 0.76 Ám | Solder | 2 | Coax Signal | UL94 V-0 | 4-40 | Right Angle Through Hole | Combo D-Sub | Board Lock | 36W4 D DD | 5 | 32 | 4 | Receptacle Female Sockets | 9.4 mm | 0.37 in | |||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | 125 VDC | Black | Gold | 30 Áin | 0.76 Ám | Solder | 2 | Signal and Power | UL94 V-0 | Housing/Shell (M3) | Right Angle Through Hole | Combo D-Sub | Mounting Brackets | 36W4 D DD | 5 | Receptacle Female Sockets | 9.4 mm | 0.37 in | 5 A 40 A | Nickel Plated Steel |
