WP63 Series

Catalog

LED UNI-COLOR GREEN 565NM 2-PIN T-1 3/4 BULK

Part	Lens Style	Size / Dimension [diameter]	Color	Package / Case	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Millicandela Rating	Lens Transparency	Configuration	Wavelength - Peak	Viewing Angle	Current - Test	Wavelength - Dominant	Height (Max) [z]	Mounting Type	Lens Size	Lens Size	Lens Color

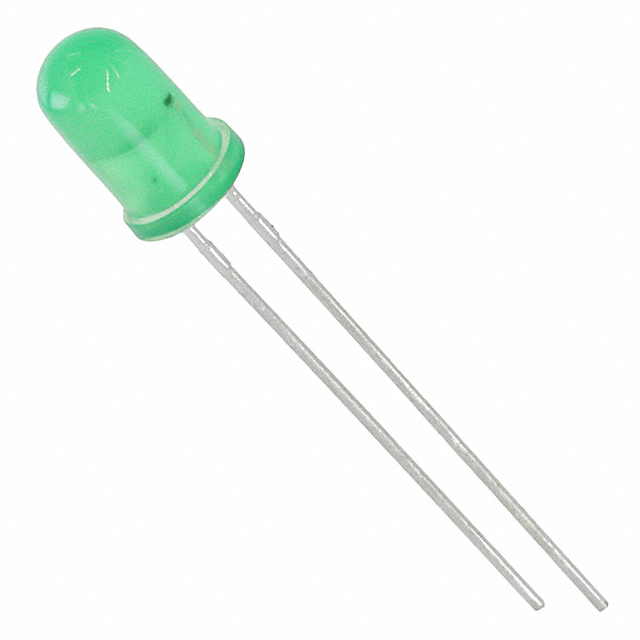

Kingbright WP63GD	Round with Domed Top	5 mm	Green	Radial	2.2 V	T-1 3/4	16 mcd	Diffused	Standard	565 nm	60 °	20 mA	568 nm	6 mm	Through Hole	5 mm	T-1 3/4	Green

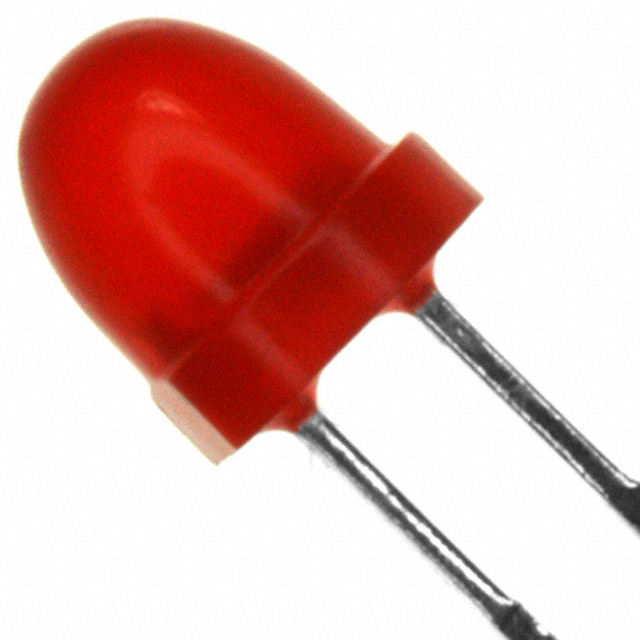

Kingbright WP63SRD	Round with Domed Top	5 mm	Red	Radial	1.85 V	T-1 3/4	100 mcd	Diffused	Standard	655 nm	60 °	20 mA	640 nm	6 mm	Through Hole	5 mm	T-1 3/4	Red
Kingbright WP63SRT	Round with Domed Top	5 mm	Red	Radial	1.85 V	T-1 3/4	250 mcd	Clear	Standard	655 nm	30 °	20 mA	640 nm	6 mm	Through Hole	5 mm	T-1 3/4	Red
Kingbright WP63SRC	Round with Domed Top	5 mm	Red	Radial	1.85 V	T-1 3/4	250 mcd	Clear	Standard	655 nm	30 °	20 mA	640 nm	6 mm	Through Hole	5 mm	T-1 3/4	Colorless

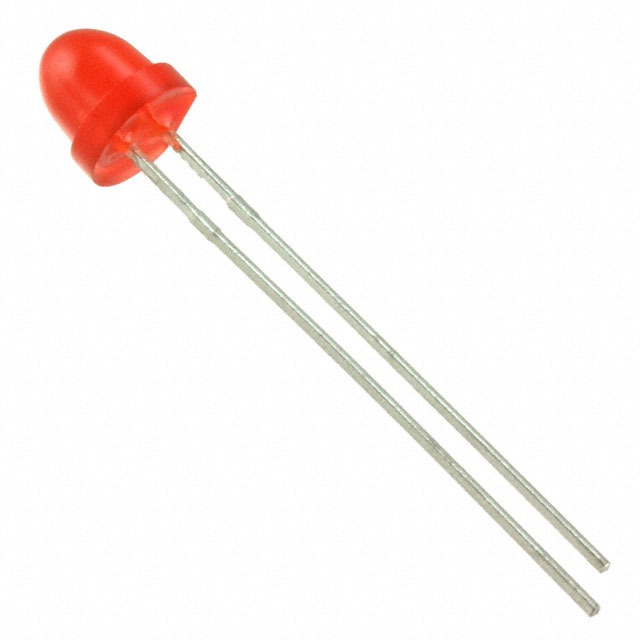

Kingbright WP63ID	Round with Domed Top	5 mm	Red	Radial	2 V	T-1 3/4	12 mcd	Diffused	Standard	627 nm	60 °	20 mA	617 nm	6 mm	Through Hole	5 mm	T-1 3/4	Red
Kingbright WP63GT	Round with Domed Top	5 mm	Green	Radial	2.2 V	T-1 3/4	80 mcd	Clear	Standard	565 nm	30 °	20 mA	568 nm	6 mm	Through Hole	5 mm	T-1 3/4	Green
Kingbright WP63IT	Round with Domed Top	5 mm	Red	Radial	2 V	T-1 3/4	30 mcd	Clear	Standard	627 nm	30 °	20 mA	617 nm	6 mm	Through Hole	5 mm	T-1 3/4	Red
Kingbright WP63YD	Round with Domed Top	5 mm	Yellow	Radial	2.1 V	T-1 3/4	10 mcd	Diffused	Standard	590 nm	60 °	20 mA	588 nm	6 mm	Through Hole	5 mm	T-1 3/4	Yellow
