SH-7050 Series

Catalog

ROTARY CODE SW, 16POS, HEX, 0.1A, 5V

Part	Circuit	Number of Positions	Pitch [x]	Pitch	Pitch [x]	Washable	Length [x]	Length	Actuator Level	Height Above Board	Height Above Board	Actuator Type	Electrical Life	Contact Material	Mounting Type	Current Rating (Amps)	Termination Style	Contact Finish	Voltage Rating	Body Material	Operating Temperature [Max]	Operating Temperature [Min]

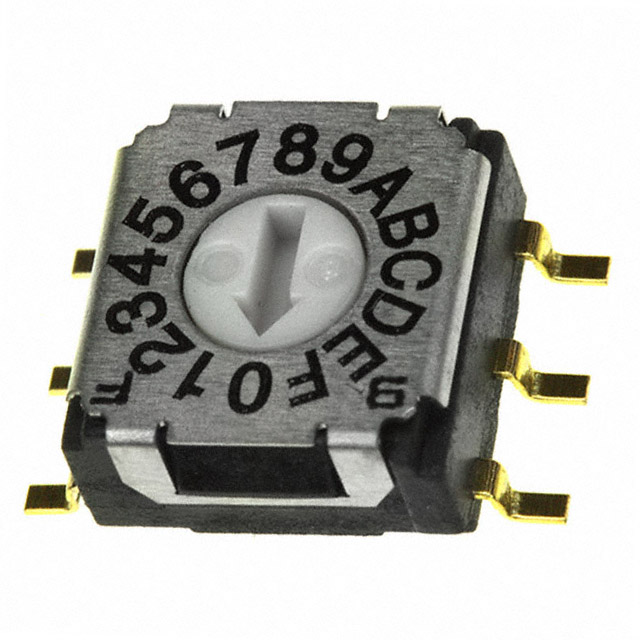

Nidec Components Corporation SH-7050TB	Hexadecimal	16	0.1 in	Full	2.54 mm		0.287 "	7.3 mm	Flush Recessed	3.75 mm	0.148 in	Rotary for Tool	10000 Cycles	Copper Alloy	Surface Mount	100 mA	Gull Wing	Gold	5 V	Polyphenylene Sulfide (PPS)	85 °C	-40 °C

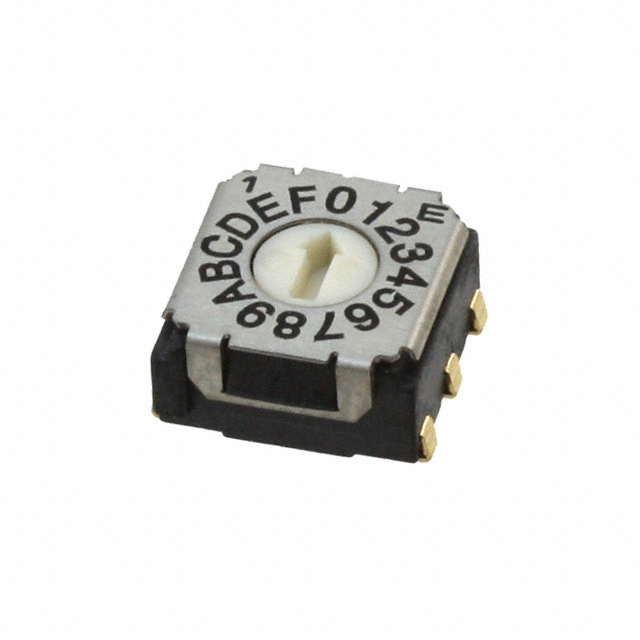

Nidec Components Corporation SH-7050TA	Hexadecimal	16	0.1 in	Full	2.54 mm		0.287 "	7.3 mm	Flush Recessed	3.75 mm	0.148 in	Rotary for Tool	10000 Cycles	Copper Alloy	Surface Mount	100 mA	J Lead	Gold	5 V	Polyphenylene Sulfide (PPS)	85 °C	-40 °C
