EA2 Series
Manufacturer: KEMET
Beta
⌘K

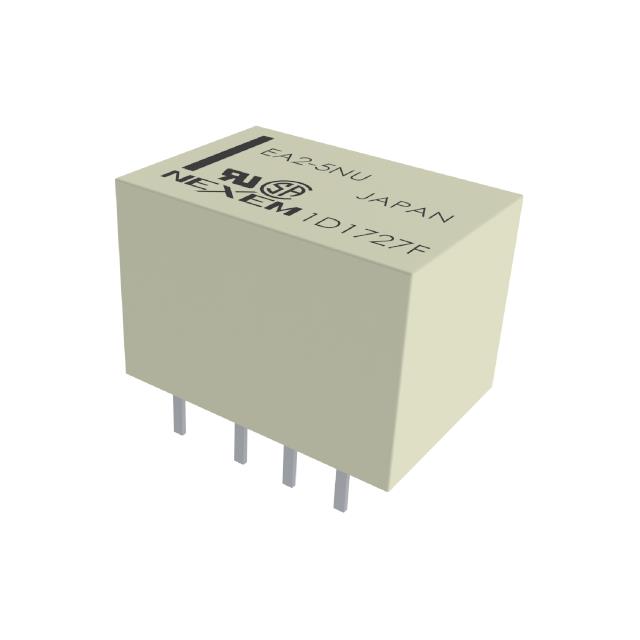

LOW SIGNAL RELAYS - PCB KEMET, EA2, RELAYS, SIGNAL
| Part | Coil Resistance | Load - Max Switching | Relay Type | Contact Form | Coil Current | Operate Time | Must Release Voltage | Coil Type | Mounting Type | Termination Style | Must Operate Voltage | Coil Voltage | Approval Agency | Release Time | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage [Max] | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 2.88 kOhms | 220 W 250 VA | General Purpose | DPDT (2 Form C) | 8.3 mA | 2 ms | 2.4 VDC | Non Latching | Through Hole | PC Pin | 18 VDC | 24 VDC | CSA UR | 1 ms | Gold Alloy Silver Alloy | 85 °C | -40 C | 220 VDC 250 VAC | 1 A |
 KEMET | 220 W 250 VA | General Purpose | DPDT (2 Form C) | 31 mA | 2 ms | 0.45 VDC | Non Latching | Through Hole | PC Pin | 3.38 VDC | 4.5 VDC | CSA UR | 1 ms | Gold Alloy Silver Alloy | 85 °C | -40 C | 220 VDC 250 VAC | 1 A |
