HF500 Series

Manufacturer: Monolithic Power Systems Inc.

Catalog

FULL-FEATURED FLYBACK REGULATOR

Part	Output Isolation	Topology	Power (Watts)	Control Features	Supplier Device Package	Fault Protection	Frequency - Switching	Package / Case	Package / Case	Mounting Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Breakdown	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Board Type	Supplied Contents	Power - Output [x]	Outputs and Type	Outputs and Type	Voltage - Output	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Regulator Topology	Contents	Main Purpose

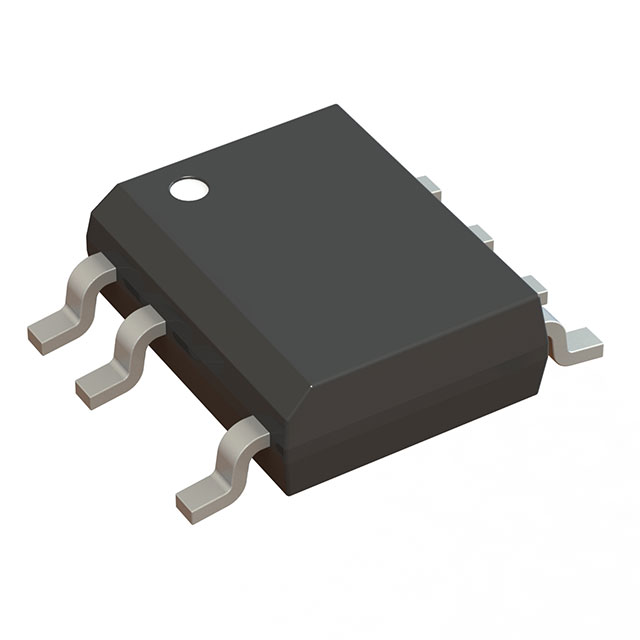

Monolithic Power Systems Inc. HF500GS-15	Isolated	Flyback	1.5 W	Soft Start	8-SOIC-7B	Over Load Over Temperature Over Voltage Short Circuit	25 kHz	0.154 in 3.9 mm 7 Leads	8-SOIC	Surface Mount	12.5 V	24 V	700 V	-40 C	125 °C
Monolithic Power Systems Inc. HF500GP-30	Isolated	Flyback	45 W	Soft Start	8-PDIP-7B	Over Load Over Temperature Over Voltage Short Circuit	25 kHz	0.3 in	7 Leads 8-DIP	Through Hole	12.5 V	24 V	700 V	-40 C	125 °C	7.62 mm
Monolithic Power Systems Inc. EVHF500-7-S-00A																	Fully Populated	Board(s)	5.1 W	2	2 Non-Isolated Outputs Non-Isolated	5 V 12 V	HF500-7	265 VAC	90 VAC	Flyback	Board(s)	AC/DC Primary Side
Monolithic Power Systems Inc. HF500GS-15-Z	Isolated	Flyback	1.5 W	Soft Start	8-SOIC-7B	Over Load Over Temperature Over Voltage Short Circuit	25 kHz	0.154 in 3.9 mm 7 Leads	8-SOIC	Surface Mount	12.5 V	24 V	700 V	-40 C	125 °C
Monolithic Power Systems Inc. HF500GS-7-Z	Isolated	Flyback	1.5 W	Soft Start	8-SOIC-7B	Over Load Over Temperature Over Voltage Short Circuit	65 kHz	0.154 in 3.9 mm 7 Leads	8-SOIC	Surface Mount	12.5 V	24 V	700 V	-40 C	125 °C
