PSC15A Series

Catalog

AC/DC WALL MOUNT ADAPTER 6V 15W

Part	Input Connector	Region Utilized	Approval Agency	Efficiency	Output Connector [x]	Output Connector	Output Connector [diameter]	Applications	Voltage - Output	Power (Watts)	Input Type	Voltage - Input [Max]	Voltage - Input [Min]	Form	Operating Temperature [Max]	Current - Output (Max) [Max]	Polarization	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Cord Length	Cord Length	No Load Power Consumption	Weight	Weight

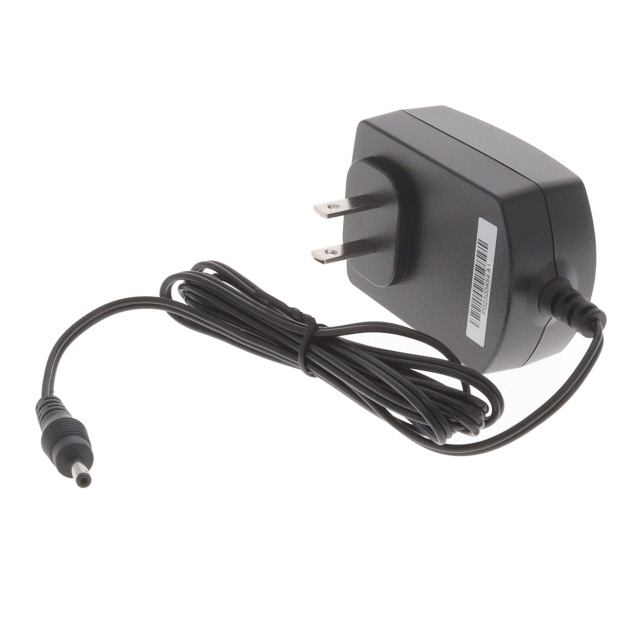

Phihong USA PSC15A-060-C4	NEMA 1-15P	North America	CE cULus	Level VI	10 mm	Barrel Plug	1.35 mm 3.5 mm	ITE (Commercial)	6 V	15 W	Fixed Blade	264 VAC	90 VAC	Wall Mount	40 °C	2.5 A	Positive Center	1.23 in	50 mm	31.2 mm	1.97 "	2.81 "	71.5 mm	1.5 m	59 in	100 mW
Phihong USA PSC15A-060-R	NEMA 1-15P	North America	cULus	Level VI	10 mm	Barrel Plug	2.1 mm 5.5 mm	ITE (Commercial)	5.9 V	15 W	Fixed Blade	264 VAC	90 VAC	Wall Mount	40 °C	2.5 A	Positive Center	1.23 in	50 mm	31.2 mm	1.97 "	2.81 "	71.5 mm	1.5 m	59 in	100 mW
Phihong USA PSC15A-075	NEMA 1-15P	North America	cULus	Level VI	10 mm	Barrel Plug	2.1 mm 5.5 mm	ITE (Commercial)	7.5 V	15 W	Fixed Blade	264 VAC	90 VAC	Wall Mount	40 °C	2 A	Positive Center	1.23 in	50 mm	31.2 mm	1.97 "	2.81 "	71.5 mm	1.5 m	59 in	100 mW	145.15 g	0.32 lb
Phihong USA PSC15A-090	NEMA 1-15P	North America	cULus	Level VI	10 mm	Barrel Plug	2.1 mm 5.5 mm	ITE (Commercial)	9 V	15 W	Fixed Blade	264 VAC	90 VAC	Wall Mount	40 °C	1.67 A	Positive Center	1.23 in	50 mm	31.2 mm	1.97 "	2.81 "	71.5 mm	1.5 m	59 in	100 mW	145.15 g	0.32 lb
Phihong USA PSC15A-060	NEMA 1-15P	North America	cULus	Level VI	10 mm	Barrel Plug	2.1 mm 5.5 mm	ITE (Commercial)	5.9 V	15 W	Fixed Blade	264 VAC	90 VAC	Wall Mount	40 °C	2.5 A	Positive Center	1.23 in	50 mm	31.2 mm	1.97 "	2.81 "	71.5 mm	1.5 m	59 in	100 mW	145.15 g	0.32 lb
Phihong USA PSC15A-050	NEMA 1-15P	North America	cULus	Level VI	10 mm	Barrel Plug	2.1 mm 5.5 mm	ITE (Commercial)	5 V	15 W	Fixed Blade	264 VAC	90 VAC	Wall Mount	40 °C	3 A	Positive Center	1.23 in	50 mm	31.2 mm	1.97 "	2.81 "	71.5 mm	1.5 m	59 in	100 mW	145.15 g	0.32 lb
Phihong USA PSC15A-090-R	NEMA 1-15P	North America	cULus	Level VI	10 mm	Barrel Plug	2.1 mm 5.5 mm	ITE (Commercial)	9 V	15 W	Fixed Blade	264 VAC	90 VAC	Wall Mount	40 °C	1.67 A	Positive Center	1.23 in	50 mm	31.2 mm	1.97 "	2.81 "	71.5 mm	1.5 m	59 in	100 mW
Phihong USA PSC15A-050-R	NEMA 1-15P	North America	cULus	Level VI	10 mm	Barrel Plug	2.1 mm 5.5 mm	ITE (Commercial)	5 V	15 W	Fixed Blade	264 VAC	90 VAC	Wall Mount	40 °C	3 A	Positive Center	1.23 in	50 mm	31.2 mm	1.97 "	2.81 "	71.5 mm	1.5 m	59 in	100 mW
Phihong USA PSC15A-075-R	NEMA 1-15P	North America	cULus	Level VI	10 mm	Barrel Plug	2.1 mm 5.5 mm	ITE (Commercial)	7.5 V	15 W	Fixed Blade	264 VAC	90 VAC	Wall Mount	40 °C	2 A	Positive Center	1.23 in	50 mm	31.2 mm	1.97 "	2.81 "	71.5 mm	1.5 m	59 in	100 mW
