2401C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

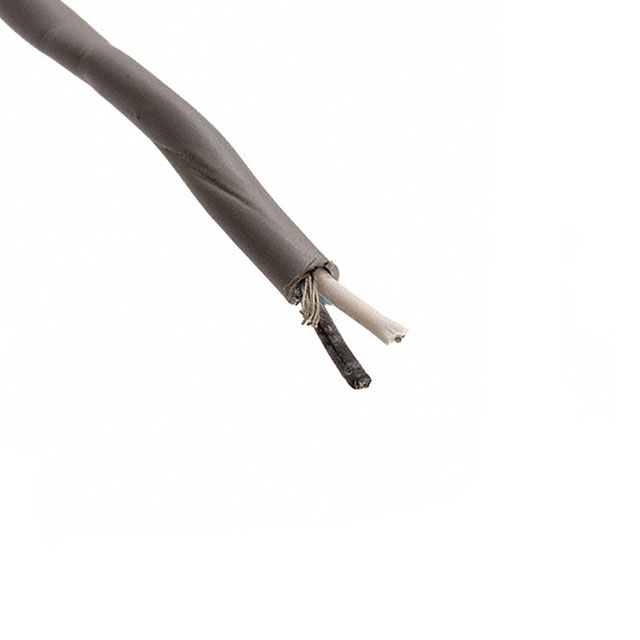

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 2 CONDUCTOR, 22 AWG, 0.357 MM², 100 FT, 30.5 M
| Part | Shield Coverage | Shield Material | Usage | Length [x] | Length [x] | Features | Wire Gauge | Cable Type | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Voltage | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Jacket (Insulation) Material | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Communication Control | 100 ft | 30.5 m | Drain Wire | 22 AWG | Multi-Conductor | Polyethylene (PE) | 4.27 mm | 0.168 in | 30 AWG | 7 | Slate | 300 VDC | Copper Tinned | 0.02 " | 0.508 mm | Foil | Poly-Vinyl Chloride (PVC) | 2 |
