CZTA92 Series

Catalog

TRANS PNP 300V 0.5A SOT223

Part	Supplier Device Package	Package / Case	Current - Collector Cutoff (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Mounting Type	Frequency - Transition	Transistor Type	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]

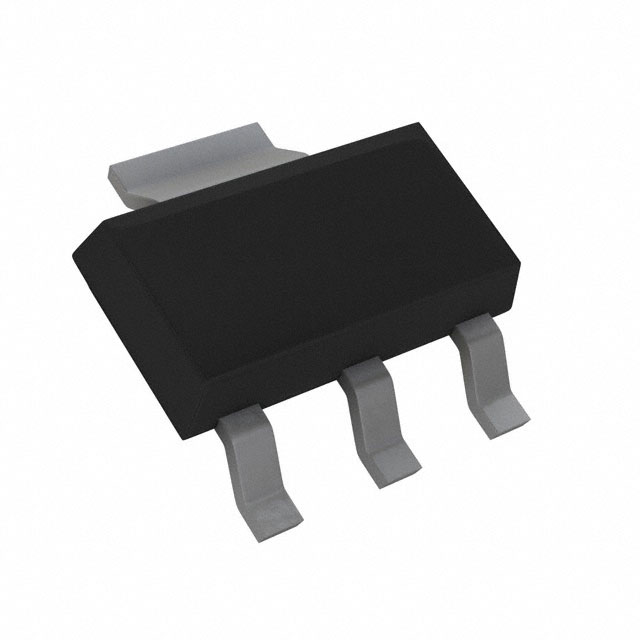

Central Semiconductor Corp CZTA92 TR PBFREE	SOT-223	TO-261-4 TO-261AA	250 nA	25	Surface Mount	50 MHz	PNP	2 W	500 mA	500 mV	150 °C	-65 °C	300 V
