1534796 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

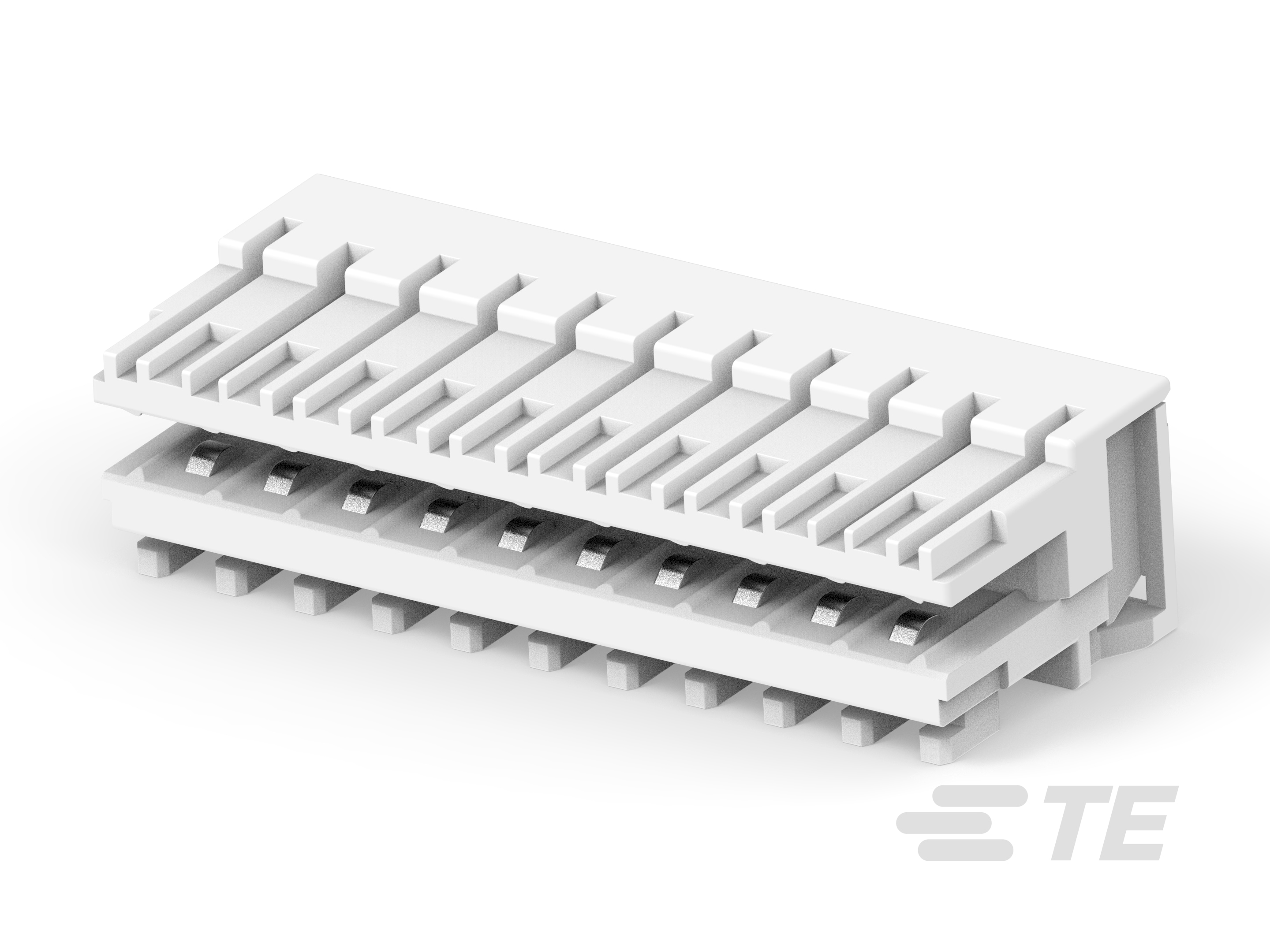

AMP DUOPLUG MARK II CONNECTOR

Part	Wire Type	Features	Number of Positions	Contact Type	Connector Type	Cable Termination	Wire Gauge [Max]	Wire Gauge [Min]	Pitch [x]	Pitch [x]	Contact Finish	Mounting Type	Number of Rows	Color
TE Connectivity Raychem Cable Protection 6-1534796-6	Discrete	Mates to PCB	6	Female Blade Socket	Receptacle	IDC	24 AWG	22 AWG	0.098 in	2.5 mm	Tin	Free Hanging (In-Line) Right Angle	1	Natural
TE Connectivity Raychem Cable Protection 7-1534796-7	Discrete	Mates to PCB	7	Female Blade Socket	Receptacle	IDC	24 AWG	22 AWG	0.098 in	2.5 mm	Tin	Free Hanging (In-Line)	1	Natural
TE Connectivity Raychem Cable Protection 3-1534796-0	Discrete	Mates to PCB	10	Female Blade Socket	Receptacle	IDC	24 AWG	22 AWG	0.098 in	2.5 mm	Tin	Free Hanging (In-Line) Right Angle	1	Natural
TE Connectivity Raychem Cable Protection 9-1534796-3	Discrete	Mates to PCB		Female Blade Socket	Receptacle	IDC	24 AWG	22 AWG	0.098 in	2.5 mm	Tin	Free Hanging (In-Line) Right Angle	1	Natural
TE Connectivity Raychem Cable Protection 7-1534796-3	Discrete	Mates to PCB		Female Blade Socket	Receptacle	IDC	24 AWG	22 AWG	0.098 in	2.5 mm	Tin	Free Hanging (In-Line) Right Angle	1	Natural
TE Connectivity Raychem Cable Protection 2-1534796-3	Discrete	Mates to PCB		Female Blade Socket	Receptacle	IDC	24 AWG	22 AWG	0.098 in	2.5 mm	Tin	Free Hanging (In-Line) Right Angle	1	Natural
TE Connectivity Raychem Cable Protection 6-1534796-7	Discrete	Mates to PCB	7	Female Blade Socket	Receptacle	IDC	24 AWG	22 AWG	0.098 in	2.5 mm	Tin	Free Hanging (In-Line) Right Angle	1	Natural
TE Connectivity Raychem Cable Protection 3-1534796-4	Discrete	Mates to PCB	4	Female Blade Socket	Receptacle	IDC	24 AWG	22 AWG	0.098 in	2.5 mm	Tin	Free Hanging (In-Line) Right Angle	1	Natural
TE Connectivity Raychem Cable Protection 5-1534796-6	Discrete	Mates to PCB	6	Female Blade Socket	Receptacle	IDC	24 AWG	22 AWG	0.098 in	2.5 mm	Tin	Free Hanging (In-Line) Right Angle	1	Natural
TE Connectivity Raychem Cable Protection 3-1534796-5	Discrete	Mates to PCB		Female Blade Socket	Receptacle	IDC	24 AWG	22 AWG	0.098 in	2.5 mm	Tin	Free Hanging (In-Line) Right Angle	1	Natural
