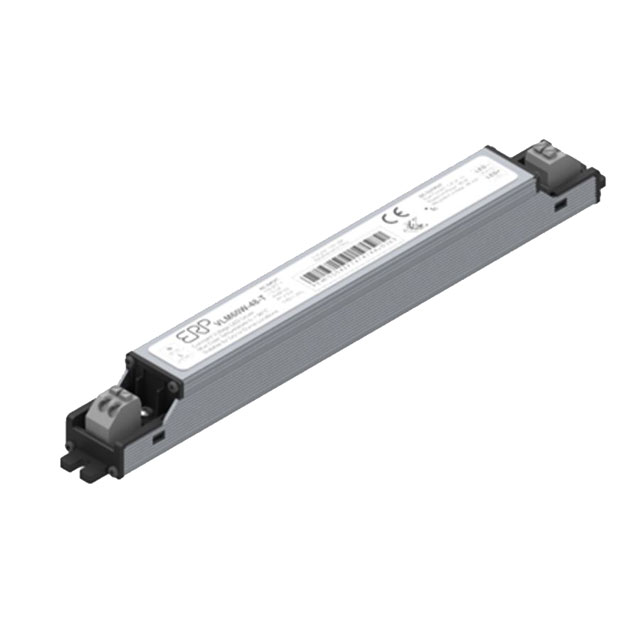

VLM60E Series
Manufacturer: ERP Power, LLC
Beta
⌘K
LED DRVR CV AC/DC 48V 1.25A
| Part | Mounting Type | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Number of Outputs | Power (Watts) | Approval Agency | Voltage - Input (Min) [Min] | Topology | Termination Style | Ratings | Type | Efficiency | Operating Temperature | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Voltage - Output | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ERP Power, LLC | Chassis Mount | 1.25 A | 240 VAC | 1 | 60 W | CB CE cULus FCC | 220 VAC | AC DC Converter | Terminal Block | IP20 | Constant Voltage | 93 % | 194 °F | 19.8 mm | 183.2 mm | 0.78 in | 7.21 in | 21 mm | 0.83 " | 48 V | |
 ERP Power, LLC | Chassis Mount | 2.5 A | 240 VAC | 1 | 60 W | CB CE cULus FCC | 220 VAC | AC DC Converter | Terminal Block | IP20 | Constant Voltage | 93 % | 194 °F | 19.8 mm | 183.2 mm | 0.78 in | 7.21 in | 21 mm | 0.83 " | 24 V | |
ERP Power, LLC | Chassis Mount | 240 VAC | 1 | 60 W | CB CE cULus FCC | 220 VAC | AC DC Converter | Terminal Block | IP20 | Constant Voltage | 93 % | 194 °F | 19.8 mm | 183.2 mm | 0.78 in | 7.21 in | 21 mm | 0.83 " | 12 V | 5 A |
