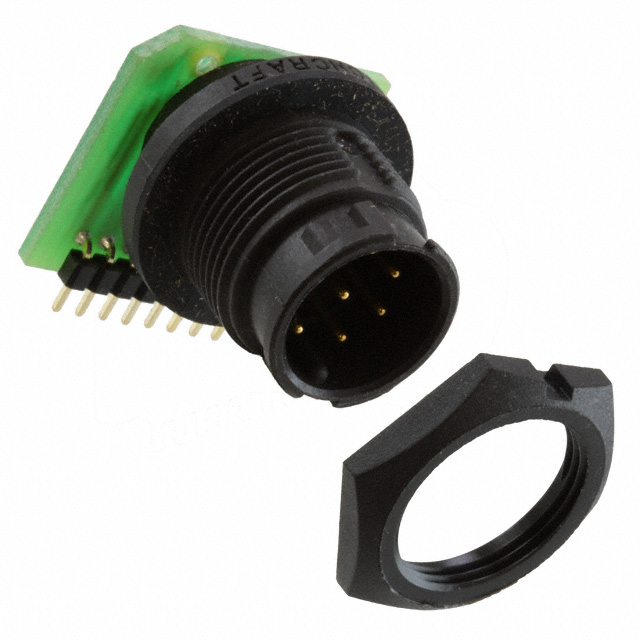

EN3P8M Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K
CONN RCPT MALE 8POS SOLDER CUP
| Part | Orientation | Fastening Type | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Contact Finish - Mating | Contact Material | Voltage Rating | Current Rating (Amps) | Mounting Type | Number of Positions | Connector Type | Material Flammability Rating | Shielding | Primary Material | Applications | Color | Mounting Feature | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SWITCHCRAFT/CONXALL | Keyed | Bayonet Lock | IP66 IP68 | -40 C | 65 °C | Elastomer | Gold | Copper Alloy | 250 VAC | 6.5 A | Panel Mount | 8 | Receptacle Male Pins | UL94 V-0 | Unshielded | Plastic | General Purpose Instrumentation Marine Medical | Black | Bulkhead - Front Side Nut | |
 SWITCHCRAFT/CONXALL | Keyed | Bayonet Lock | IP66 IP68 | -40 C | 65 °C | Elastomer | Gold | Copper Alloy | 250 VAC | 6.5 A | Panel Mount | 8 | Receptacle Male Pins | UL94 V-0 | Unshielded | Plastic | General Purpose Instrumentation Marine Medical | Black | Bulkhead - Front Side Nut | |
 SWITCHCRAFT/CONXALL | Keyed | Bayonet Lock | IP66 IP68 | -40 C | 65 °C | Elastomer | Gold | Copper Alloy | 250 VAC | 6.5 A | Panel Mount | 8 | Receptacle Male Pins | UL94 V-0 | Unshielded | Plastic | General Purpose Instrumentation Marine Medical | Black | Bulkhead - Front Side Nut | Crimp |
 SWITCHCRAFT/CONXALL | Keyed | Bayonet Lock | IP66 IP68 | -40 C | 65 °C | Elastomer | Gold | Copper Alloy | 250 VAC | 4 A | Panel Mount Right Angle Through Hole | 8 | Receptacle Male Pins | UL94 V-0 | Unshielded | Plastic | General Purpose Instrumentation Marine Medical | Black | Bulkhead - Front Side Nut | Circuit Board Solder |
 SWITCHCRAFT/CONXALL | Keyed | Bayonet Lock | IP66 IP68 | -40 C | 65 °C | Elastomer | Gold | Copper Alloy | 250 VAC | 4 A | Panel Mount Right Angle Through Hole | 8 | Receptacle Male Pins | UL94 V-0 | Unshielded | Plastic | General Purpose Instrumentation Marine Medical | Black | Bulkhead - Front Side Nut | Circuit Board Solder |
SWITCHCRAFT/CONXALL | Keyed | Bayonet Lock | IP66 IP68 | -40 C | 65 °C | Elastomer | Gold | Copper Alloy | 250 VAC | 6.5 A | Panel Mount | 8 | Receptacle Male Pins | UL94 V-0 | Unshielded | Plastic | General Purpose Instrumentation Marine Medical | Black | Bulkhead - Front Side Nut | Crimp |
 SWITCHCRAFT/CONXALL | Keyed | Bayonet Lock | IP66 IP68 | -40 C | 65 °C | Elastomer | Gold | Copper Alloy | 250 VAC | 6.5 A | Panel Mount Through Hole | 8 | Receptacle Male Pins | UL94 V-0 | Unshielded | Plastic | General Purpose Instrumentation Marine Medical | Black | Bulkhead - Front Side Nut | Solder |
