12148 Series
Manufacturer: APEM Inc.
Beta
⌘K

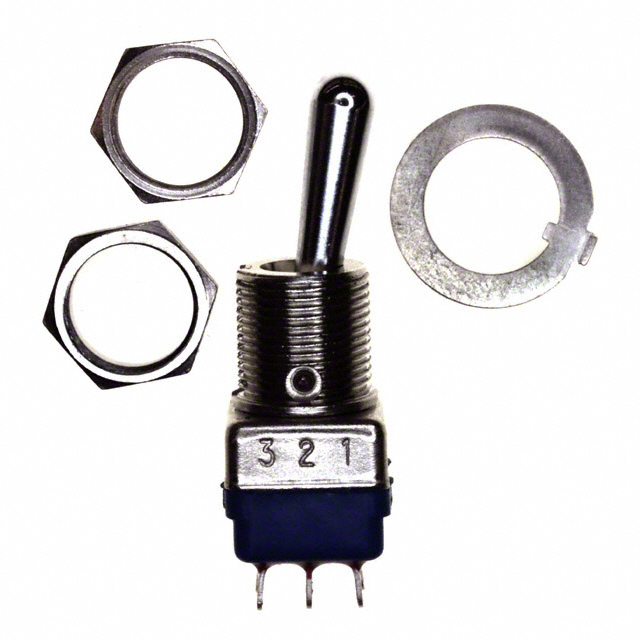

SWITCH TOGGLE DPDT 4A 125V
| Part | Actuator Material | Electrical Life | Circuit | Actuator Type | Features | Mounting Type | Illumination | Termination Style | Voltage Rating - AC | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Actuator Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Bushing Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | Brass Nickel Plated | 50000 Cycles | DPDT | Standard Round | Epoxy Sealed Terminals | Panel Mount | Non-Illuminated | Solder Lug | 125 V | On-Off-Mom | 4 A | 30 V | 12.5 mm | 17.3 mm | 85 °C | -40 C | 15/32-32 |
