VESD12 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K
TVS DIODE 12VWM 22.7VC SOT323
| Part | Voltage - Clamping (Max) @ Ipp [Max] | Unidirectional Channels | Supplier Device Package | Grade | Current - Peak Pulse (10/1000µs) | Operating Temperature [Max] | Operating Temperature [Min] | Power Line Protection | Qualification | Capacitance @ Frequency | Type | Voltage - Breakdown (Min) [Min] | Voltage - Reverse Standoff (Typ) | Power - Peak Pulse | Package / Case | Mounting Type | Unidirectional Channels [custom] | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | 22.7 V | 2 | SOT-323 | Automotive | 4.4 A | 150 °C | -55 °C | AEC-Q101 | 33 pF | Zener | 13.9 V | 12 V | 100 W | SC-70 SOT-323 | Surface Mount | |||

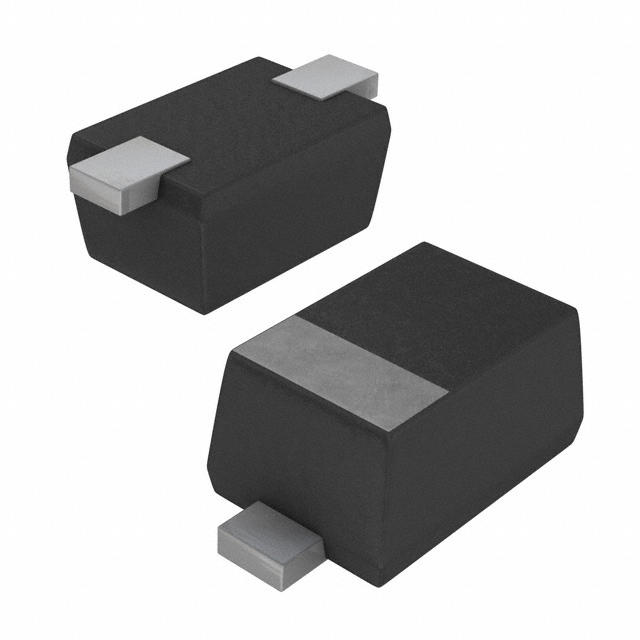

 Vishay General Semiconductor - Diodes Division | 22.7 V | SOD-523 | Automotive | 4.4 A | 150 °C | -55 °C | AEC-Q101 | 33 pF | Zener | 13.9 V | 12 V | 100 W | SC-79 SOD-523 | Surface Mount | 1 | |||
 Vishay General Semiconductor - Diodes Division | 22.7 V | 5 | SOT-363 | Automotive | 4.4 A | 150 °C | -55 °C | AEC-Q101 | 33 pF | Zener | 13.9 V | 12 V | 100 W | 6-TSSOP SC-88 SOT-363 | Surface Mount | |||
Vishay General Semiconductor - Diodes Division | 22.7 V | 5 | SOT-363 | Automotive | 4.4 A | 150 °C | -55 °C | AEC-Q101 | 33 pF | Zener | 13.9 V | 12 V | 100 W | 6-TSSOP SC-88 SOT-363 | Surface Mount | |||
Vishay General Semiconductor - Diodes Division | 25 V | SOD-523 | 2 A | 125 °C | -40 C | 30 pF | Zener | 14 V | 12 V | SC-79 SOD-523 | Surface Mount | 1 | General Purpose | |||||
 Vishay General Semiconductor - Diodes Division | 23 V | LLP1006-2L | 4 A | 125 °C | -40 C | 30 pF | Zener | 13.5 V | 12 V | 92 W | SOD-882 | Surface Mount | 1 | General Purpose | ||||
Vishay General Semiconductor - Diodes Division | 22.7 V | 2 | SOT-323 | Automotive | 4.4 A | 150 °C | -55 °C | AEC-Q101 | 33 pF | Zener | 13.9 V | 12 V | 100 W | SC-70 SOT-323 | Surface Mount | |||
 Vishay General Semiconductor - Diodes Division | 22.7 V | DFN1006-2A | Automotive | 4.4 A | 150 °C | -55 °C | AEC-Q101 | 33 pF | Zener | 14.3 V | 12 V | 100 W | 0402 (1006 Metric) | Surface Mount | 1 | |||
 Vishay General Semiconductor - Diodes Division | 23 V | SOD-923 | 4 A | 125 °C | -40 C | 30 pF | Zener | 13.5 V | 12 V | 92 W | SOD-923 | Surface Mount | 1 | General Purpose | ||||
Vishay General Semiconductor - Diodes Division | 25 V | SOD-523 | 2 A | 125 °C | -40 C | 30 pF | Zener | 14 V | 12 V | 25 W | SC-79 SOD-523 | Surface Mount | 1 | General Purpose |
