2710-4 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

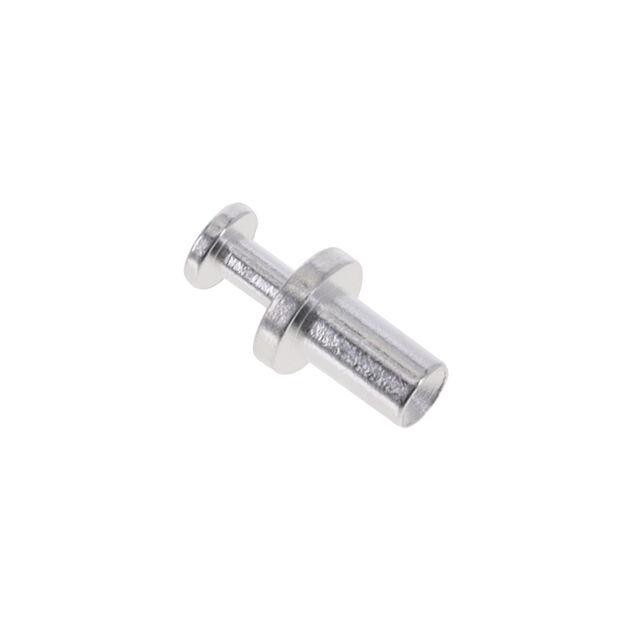

TERM TURRET SINGLE L=4.04MM
| Part | Length - Above Board [x] | Length - Above Board [x] | Mounting Type | Insulation | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Board Thickness | Board Thickness | Staking Side OD [diameter] | Staking Side OD [diameter] | Terminal Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Number of Turrets | Contact Material | Termination | Length - Below Flange [x] | Length - Below Flange [x] | Length - Overall | Length - Overall [x] | Board Thickness [z] | Board Thickness [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 4.04 mm | 0.159 in | Through Hole | Non-Insulated | Tin-Lead | 7.62 µm | 300 µin | 2.77 mm | 0.109 in | 0.094 in | 2.39 mm | 3.18 mm | 0.125 " | 0.09 " | 2.29 mm | Single End | 3.96 mm | 0.156 " | Single | Brass Alloy | Swage | 3.96 mm | 0.156 " | 8 mm | 0.315 in | ||
Mill-Max Manufacturing Corp. | 4.04 mm | 0.159 in | Through Hole | Non-Insulated | Tin | 5.08 Ám | 200 Áin | 2.77 mm | 0.109 in | 0.094 in | 2.39 mm | 0.09 " | 2.29 mm | Single End | 3.96 mm | 0.156 " | Single | Brass Alloy | Swage | 3.96 mm | 0.156 " | 8 mm | 0.315 in | 0.156 in | 3.96 mm | ||
 Mill-Max Manufacturing Corp. | 4.04 mm | 0.159 in | Through Hole | Non-Insulated | Silver | 7.62 µm | 300 µin | 2.77 mm | 0.109 in | 0.094 in | 2.39 mm | 3.18 mm | 0.125 " | 0.09 " | 2.29 mm | Single End | 3.96 mm | 0.156 " | Single | Brass Alloy | Swage | 3.96 mm | 0.156 " | 8 mm | 0.315 in |
