842-006 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 6POS 0.100

Part	Material - Insulation	Termination Rows	Number of Rows	Number of Positions/Bay/Row	Gender	Card Type	Pitch	Pitch	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Flange Feature	Read Out	Color	Termination	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Contact Material	Flange Feature [diameter]	Flange Feature [diameter]

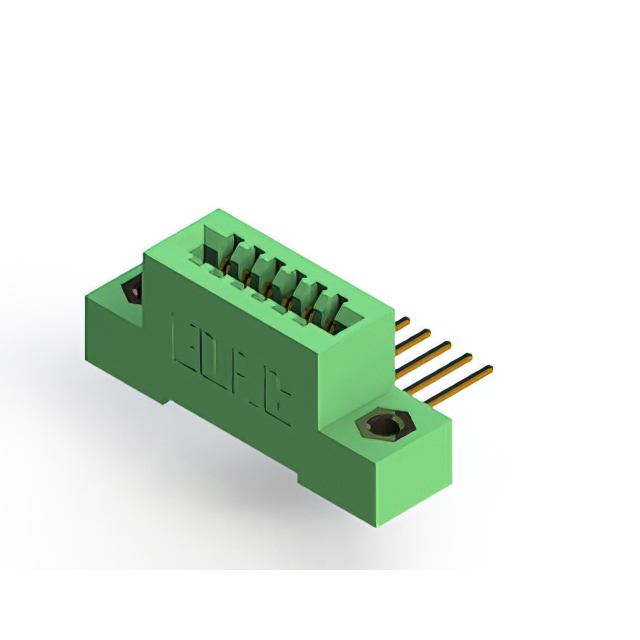

EDAC Inc. 842-006-559-107	Diallyl Phthalate (DAP)	1	1	6	Female	Non Specified - Single Edge	0.1 "	2.54 mm	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Cantilever	Flush Mount M3 Threaded Insert Top Opening	Single	Green	Solder	6	125 °C	-40 C	Gold	Copper Alloy

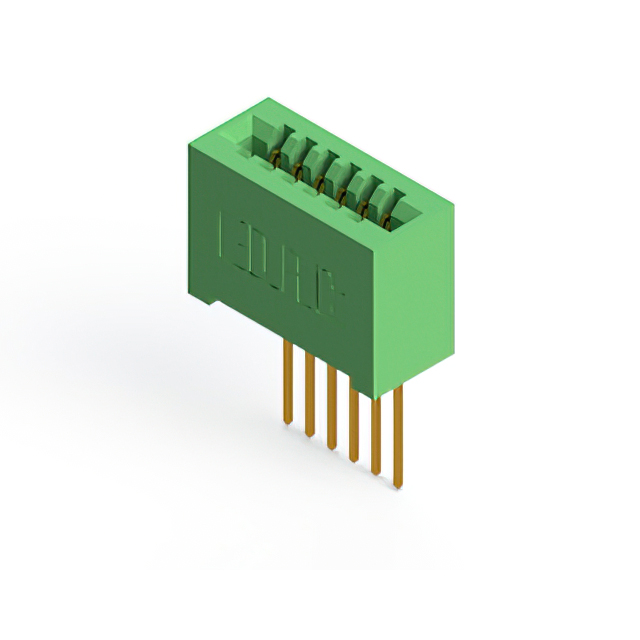

EDAC Inc. 842-006-540-101	Diallyl Phthalate (DAP)	1	1	6	Female	Non Specified - Single Edge	0.1 "	2.54 mm	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Cantilever		Single	Green	Wire Wrap	6	125 °C	-40 C	Gold	Copper Alloy

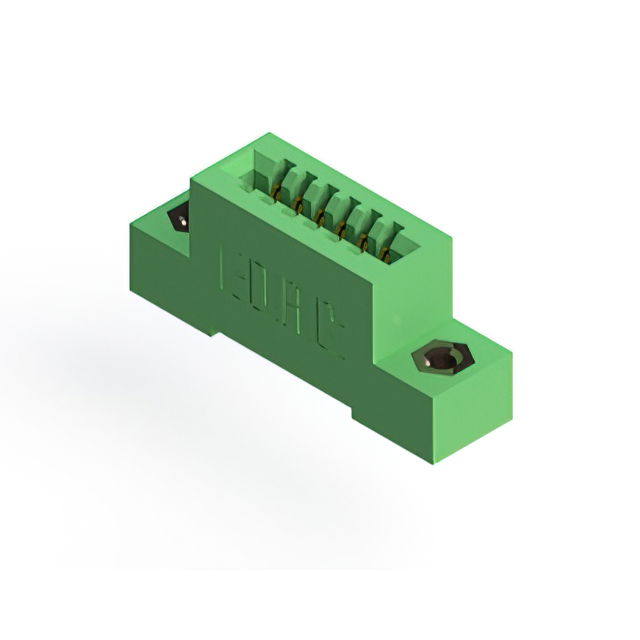

EDAC Inc. 842-006-520-108	Diallyl Phthalate (DAP)	1	1	6	Female	Non Specified - Single Edge	0.1 "	2.54 mm	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	Single	Green	Solder	6	125 °C	-40 C	Gold	Copper Alloy

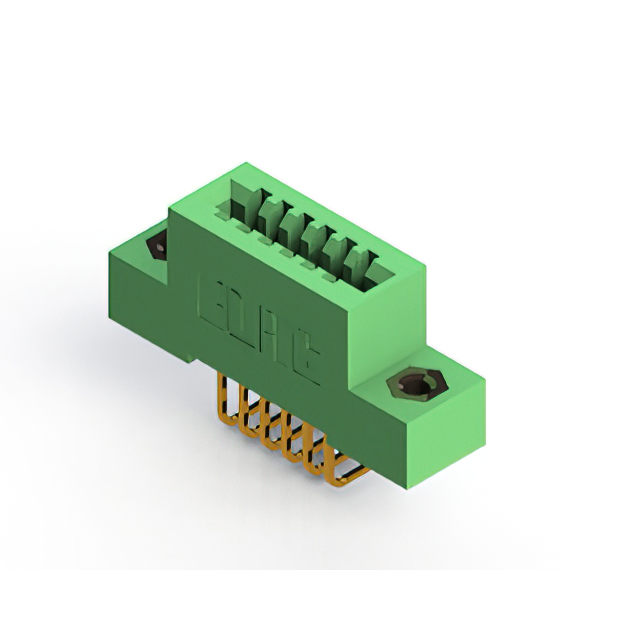

EDAC Inc. 842-006-558-108	Diallyl Phthalate (DAP)	1	1	6	Female	Non Specified - Single Edge	0.1 "	2.54 mm	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	Single	Green	Solder	6	125 °C	-40 C	Gold	Copper Alloy

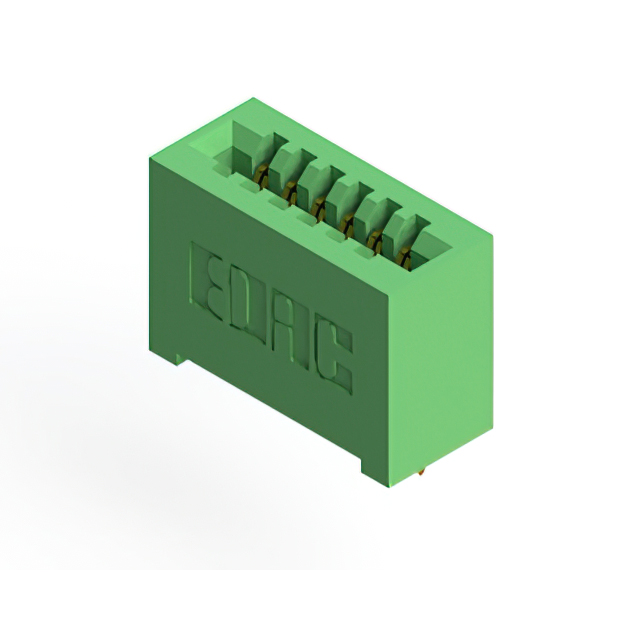

EDAC Inc. 842-006-524-101	Diallyl Phthalate (DAP)	1	1	6	Female	Non Specified - Single Edge	0.1 "	2.54 mm	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Cantilever		Single	Green	Solder	6	125 °C	-40 C	Gold	Copper Alloy

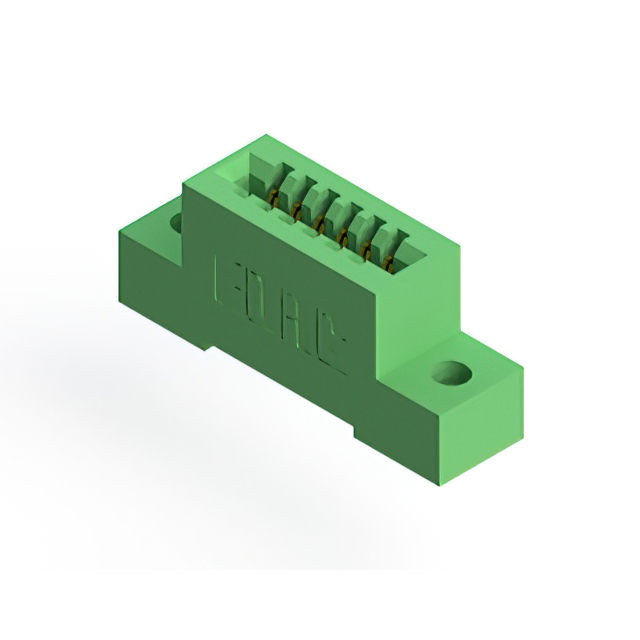

EDAC Inc. 842-006-520-102	Diallyl Phthalate (DAP)	1	1	6	Female	Non Specified - Single Edge	0.1 "	2.54 mm	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Cantilever	Flush Mount Top Opening Unthreaded	Single	Green	Solder	6	125 °C	-40 C	Gold	Copper Alloy	3.25 mm	0.128 "

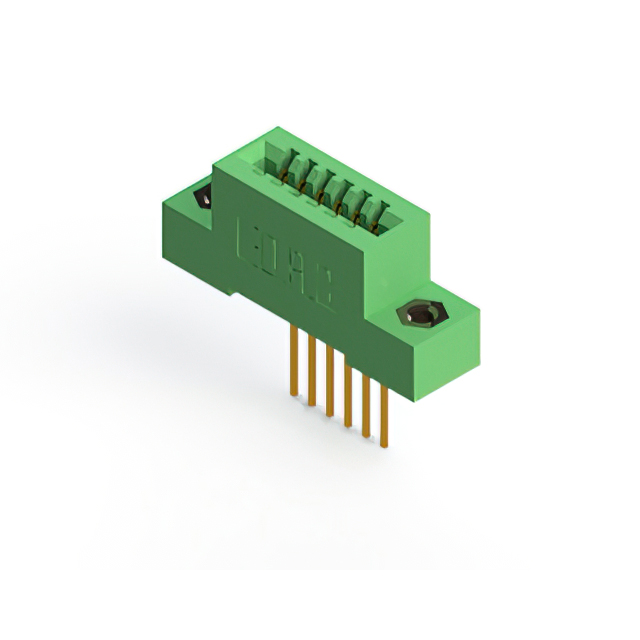

EDAC Inc. 842-006-541-108	Diallyl Phthalate (DAP)	1	1	6	Female	Non Specified - Single Edge	0.1 "	2.54 mm	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	Single	Green	Wire Wrap	6	125 °C	-40 C	Gold	Copper Alloy

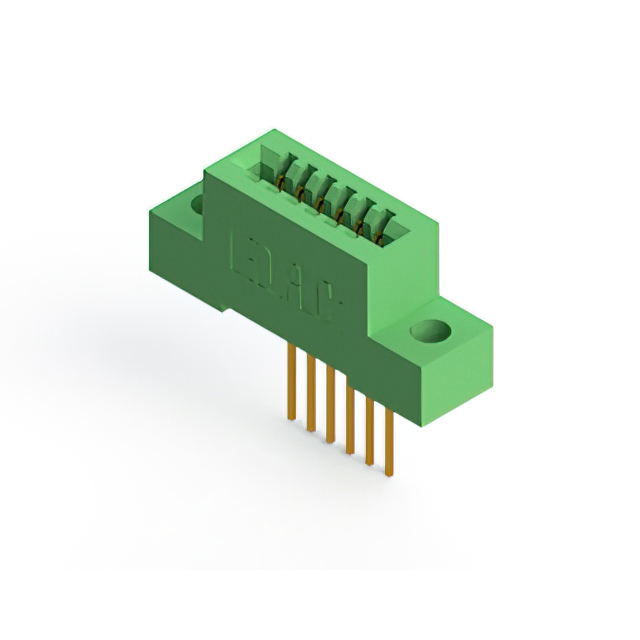

EDAC Inc. 842-006-542-104	Diallyl Phthalate (DAP)	1	1	6	Female	Non Specified - Single Edge	0.1 "	2.54 mm	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Cantilever	Flush Mount Top Opening Unthreaded	Single	Green	Wire Wrap	6	125 °C	-40 C	Gold	Copper Alloy	3.96 mm	0.156 "

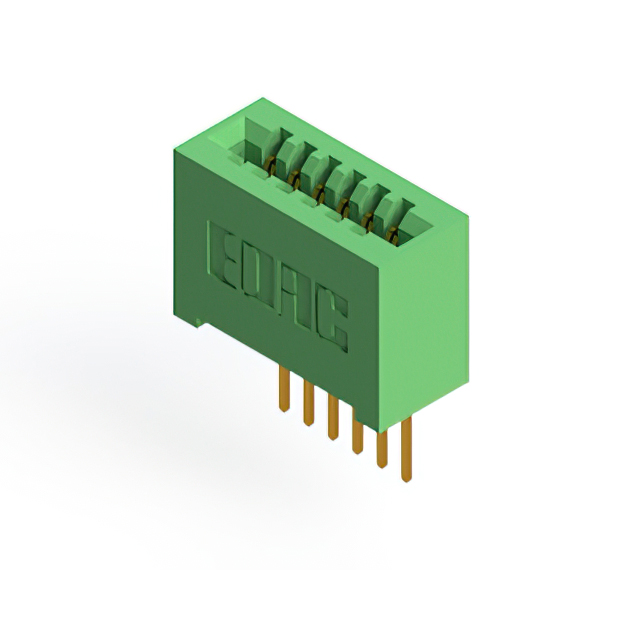

EDAC Inc. 842-006-523-101	Diallyl Phthalate (DAP)	1	1	6	Female	Non Specified - Single Edge	0.1 "	2.54 mm	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Cantilever		Single	Green	Solder	6	125 °C	-40 C	Gold	Copper Alloy
EDAC Inc. 842-006-523-104	Diallyl Phthalate (DAP)	1	1	6	Female	Non Specified - Single Edge	0.1 "	2.54 mm	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Cantilever	Flush Mount Top Opening Unthreaded	Single	Green	Solder	6	125 °C	-40 C	Gold	Copper Alloy	3.96 mm	0.156 "
