917897 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

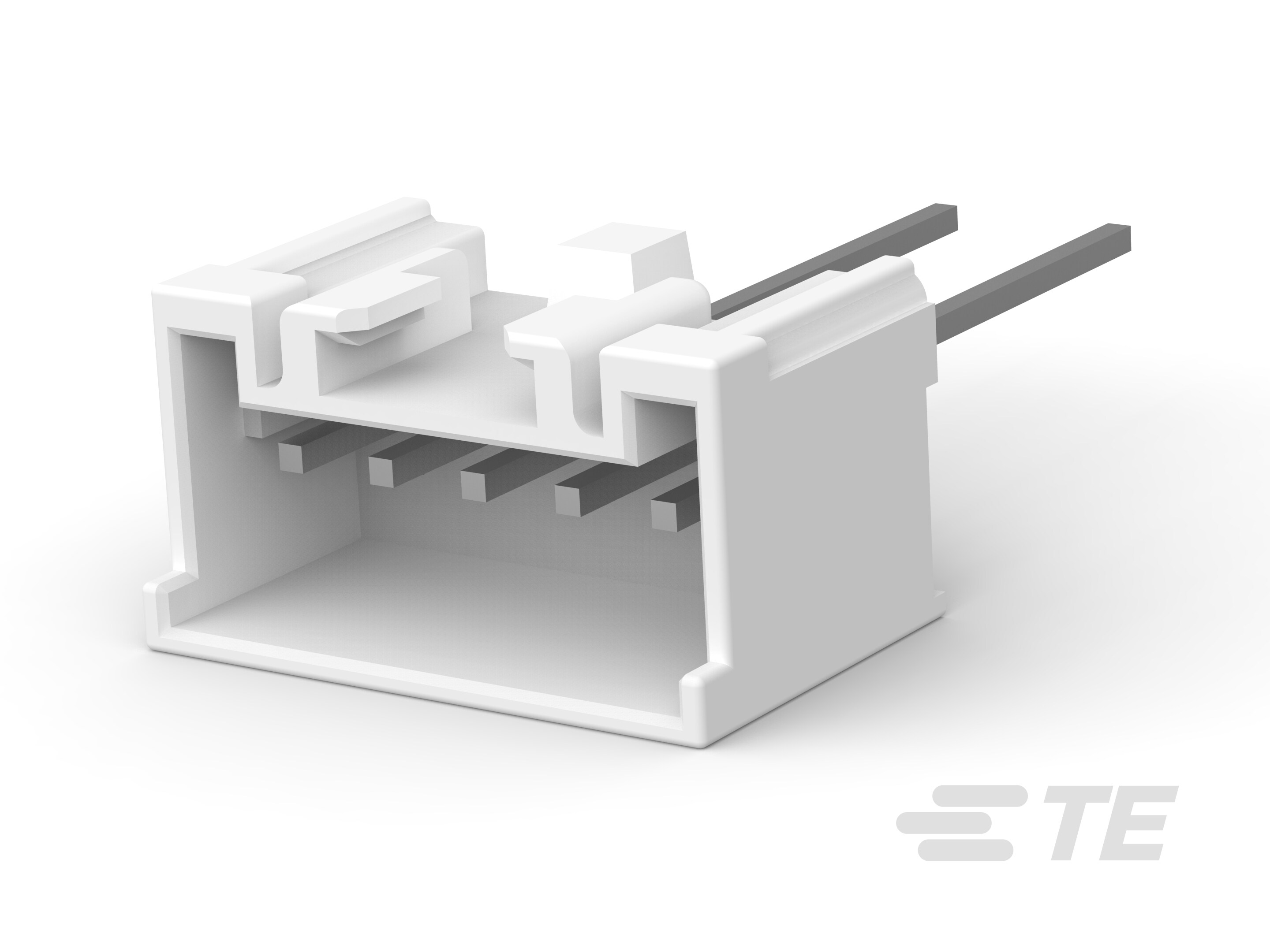

2.5 S.D.L STD V 5P HDR ON/TAPE
| Part | Mated Stacking Heights | Applications | Current Rating (Amps) | Termination | Style | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Contact Material | Number of Rows | Contact Type | Contact Finish - Post | Number of Positions Loaded | Contact Length - Mating | Contact Length - Mating | Material Flammability Rating | Fastening Type | Shrouding | Contact Length - Post [x] | Contact Length - Post [x] | Overall Contact Length | Overall Contact Length | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Contact Shape | Voltage Rating | Features | Insulation Material | Insulation Color | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 13.7 mm | General Purpose | 3 A | Kinked Pin Solder | Board to Cable/Wire | 5 | -30 ░C | 105 ░C | Header | Copper Alloy | 1 | Male Pin | Tin | All | 4.7 mm | 0.185 in | UL94 V-0 | Latch Holder | Shrouded - 4 Wall | 0.126 " | 3.2 mm | 0.41 in | 10.41 mm | 9.8 mm | 0.386 in | 2.5 mm | 0.098 in | Square | 50 V | Board Guide | Glass Filled Nylon 6/6 Polyamide (PA66) | Natural | Through Hole |
