C1812W Series

Manufacturer: KEMET

Catalog

COMSMDHIVOLTAGE.150UF 630V

Part	Package / Case	Voltage - Rated	Ratings	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Thickness (Max) [Max]	Thickness (Max) [Max]	Capacitance	Features	Applications	Voltage - Rated	Thickness (Max) [Max] [custom]	Thickness (Max) [Max] [custom]

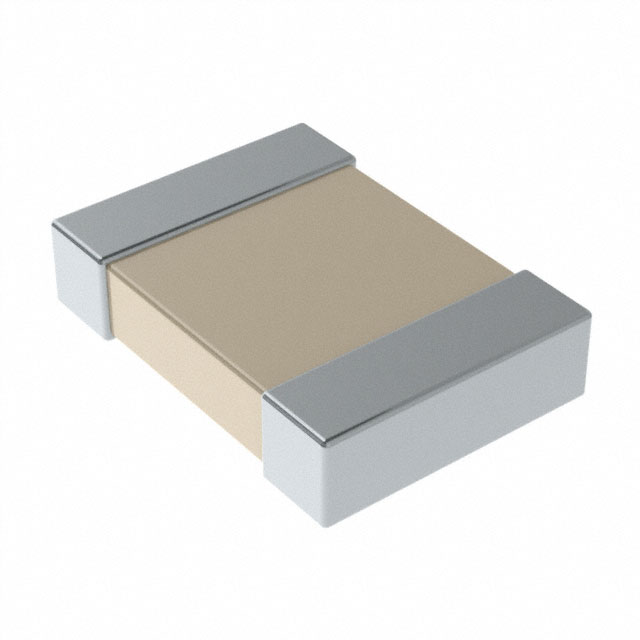

KEMET C1812W154KBRACAUTO	1812 (4532 Metric)	630 V	AEC-Q200	0.177 in	4.5 mm	3.2 mm	0.126 in	MLCC Surface Mount	10 %	-55 C	125 °C	X7R	0.075 in	1.9 mm	0.15 ÁF	ArcShield™ High Voltage Low ESL	Automotive
KEMET C1812W104KDRACAUTO	1812 (4532 Metric)	1000 V	AEC-Q200	0.177 in	4.5 mm	3.2 mm	0.126 in	MLCC Surface Mount	10 %	-55 C	125 °C	X7R			100000 pF	ArcShield™ High Voltage Low ESL Soft Termination	Automotive Boardflex Sensitive	1 kV	0.073 in	1.85 mm
KEMET C1812W104KDRAC7800	1812 (4532 Metric)	1000 V		0.177 in	4.5 mm	3.2 mm	0.126 in	MLCC Surface Mount	10 %	-55 C	125 °C	X7R			100000 pF	ArcShield™ High Voltage Soft Termination	Boardflex Sensitive	1 kV	0.073 in	1.85 mm
KEMET C1812W224KCRAC7800	1812 (4532 Metric)	500 V		0.177 in	4.5 mm	3.2 mm	0.126 in	MLCC Surface Mount	10 %	-55 C	125 °C	X7R			0.22 µF	ArcShield™ High Voltage Soft Termination	Boardflex Sensitive		0.073 in	1.85 mm
KEMET C1812W154KBRAC7800	1812 (4532 Metric)	630 V		0.177 in	4.5 mm	3.2 mm	0.126 in	MLCC Surface Mount	10 %	-55 C	125 °C	X7R	0.075 in	1.9 mm	0.15 ÁF	ArcShield™ High Voltage Soft Termination	Boardflex Sensitive
KEMET C1812W333KBRAC7800	1812 (4532 Metric)	630 V		0.177 in	4.5 mm	3.2 mm	0.126 in	MLCC Surface Mount	10 %	-55 C	125 °C	X7R	0.043 "	1.1 mm	0.033 çF	ArcShield™ High Voltage Soft Termination	Boardflex Sensitive
KEMET C1812W334KCRAC7800	1812 (4532 Metric)	500 V		0.177 in	4.5 mm	3.2 mm	0.126 in	MLCC Surface Mount	10 %	-55 C	125 °C	X7R	0.091 in	2.3 mm	0.33 µF	ArcShield™ High Voltage Soft Termination	Boardflex Sensitive
KEMET C1812W104KCRAC7800	1812 (4532 Metric)	500 V		0.177 in	4.5 mm	3.2 mm	0.126 in	MLCC Surface Mount	10 %	-55 C	125 °C	X7R	0.043 "	1.1 mm	100000 pF	ArcShield™ High Voltage Soft Termination	Boardflex Sensitive
